PART №1356
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
Rear Cup-Holder Blanking Plate
ABS · PETG2 FILESCC-BY-NC-SAInterior
- PART
- Rear Cup-Holder Blanking Plate
- OEM
- —
- FITS
- 5 Series E39
Loading 3D viewer...
PART ID · BIMMER-3D / 1356QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Build sheet
MAN-1356- [01]BMW-E39-Rear-Cupholder.STLBMW-E39-Rear-Cupholder.STL.STL
- [02]BMW-Rear-Cupholder-cig-lighter.STLBMW-Rear-Cupholder-cig-lighter.STL.STL
- [03]Bounding box160.500 × 48.500 × 17.000 mm
- [04]Volume32,896.545 mm³
Field notes

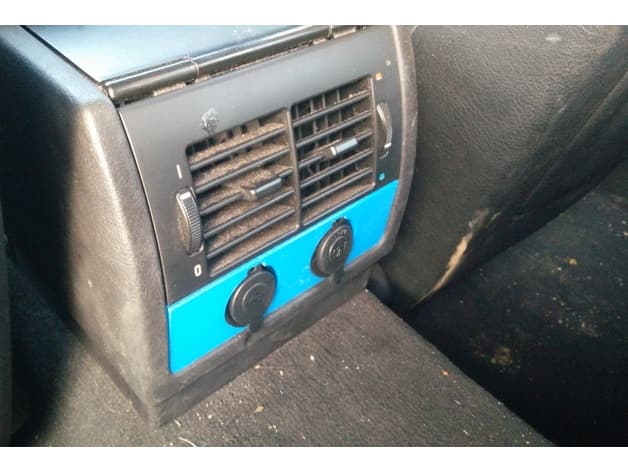

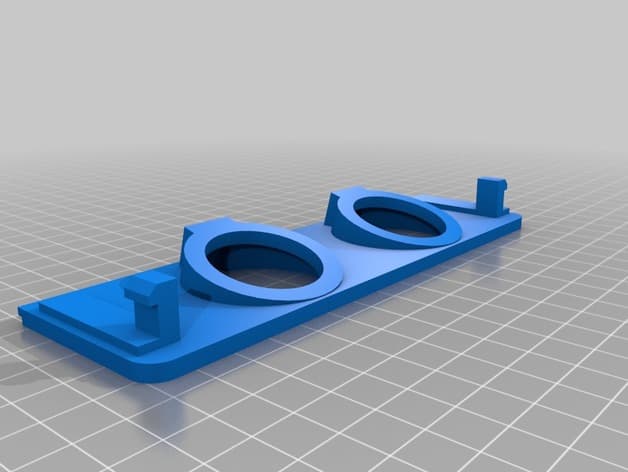

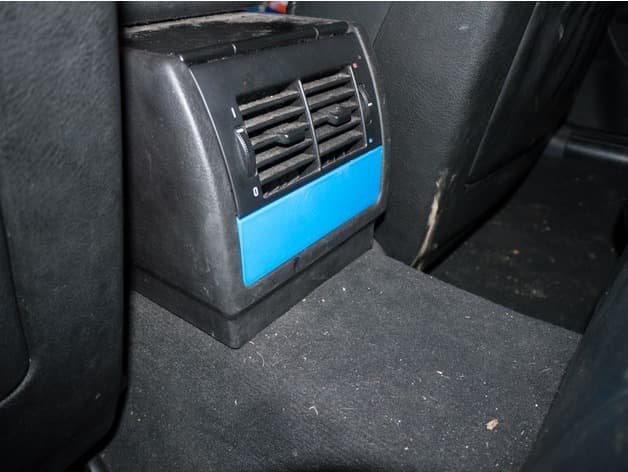

BY GRUMPY ENGINEERING (THEGRUMPYENGINEER)Very basic blanking plate for the E39 BMW 5 Series rear cup holder. The rear cup holder in my E39 BMW has never closed properly and never clipped in properly and EVERY time someone sits in the rear seat it gets kicked. Odd design by BMW as the cup holder keeps the rear air vents in place so when the cup holder falls out so does the air vent. Printed in blue for prototyping! Second design with holes for 2 USB chargers or cigarette lighter sockets. I used the ones with rubber covers from banggood. The clips are very crude. They need a better design as this panel does not like being removed. Verify dimensions against the original part and confirm full operation before regular use.
