Rear-Cabin Vent-Grille Repair Set
ABS · Nylon · PETGMULTI-PART3 FILESCC-BY-SAInterior
- PART
- Rear-Cabin Vent-Grille Repair Set
- OEM
- —
- FITS
- 5 Series E39
Loading 3D viewer...
PART ID · BIMMER-3D / 1360QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet

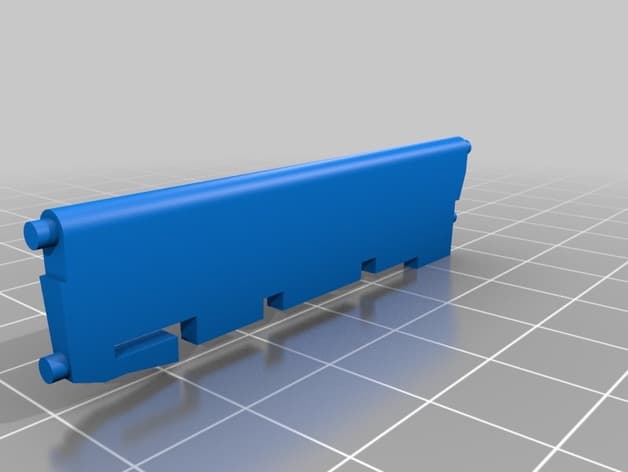

MAN-1360- [01]fan_grille_horizontal_slider.stlfan_grille_horizontal_slider.stl.STL
- [02]fin_for_horizontal_element.stlfin_for_horizontal_element.stl.STL
- [03]horizontal_fin.stlhorizontal_fin.stl.STL
- [04]Bounding box60.000 × 21.932 × 12.994 mm
- [05]Volume6,676.295 mm³
Field notes

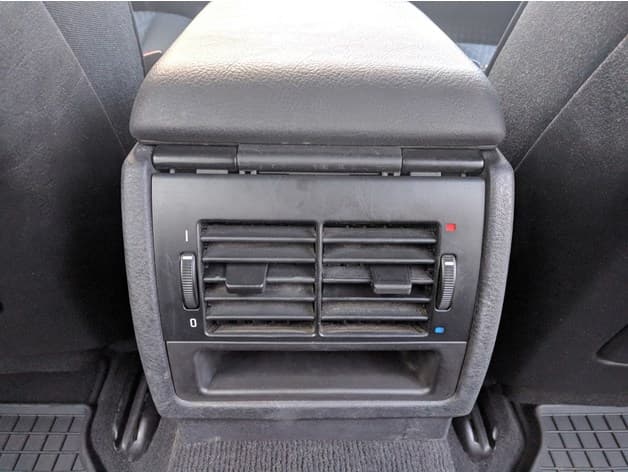

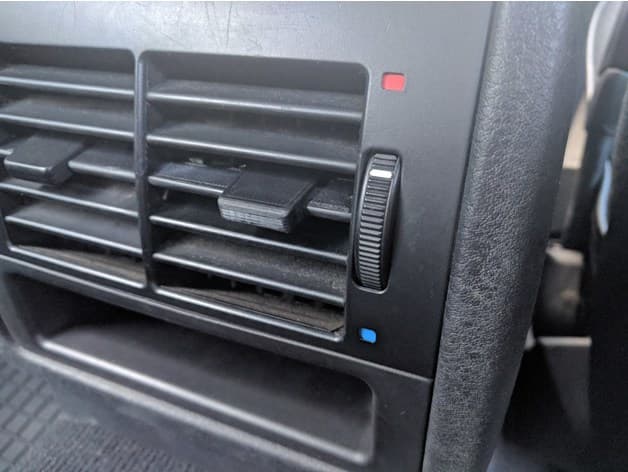

BY DANIEL DULLER (DADUL96)My BMW E39 was missing some fan grille parts for the rear seats. The CAD drawings have the exact same size as the original parts. So it just depends on how accurate your printer is (I had to sand down some areas). As you can see in the pictures you will also need a small piece of sheet metal that acts as a spring. Verify dimensions against the original part and confirm full operation before regular use.
