Oval Mirror Clip/Tab Repair

ABS · PETG1 FILECC-BY-NCDoors

PART RECORDREF 1208

PART: Oval Mirror Clip/Tab Repair
OEM: —
FITS: 3 Series E46, 5 Series E39

Loading 3D viewer...

PART ID · BIMMER-3D / 1208QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1208

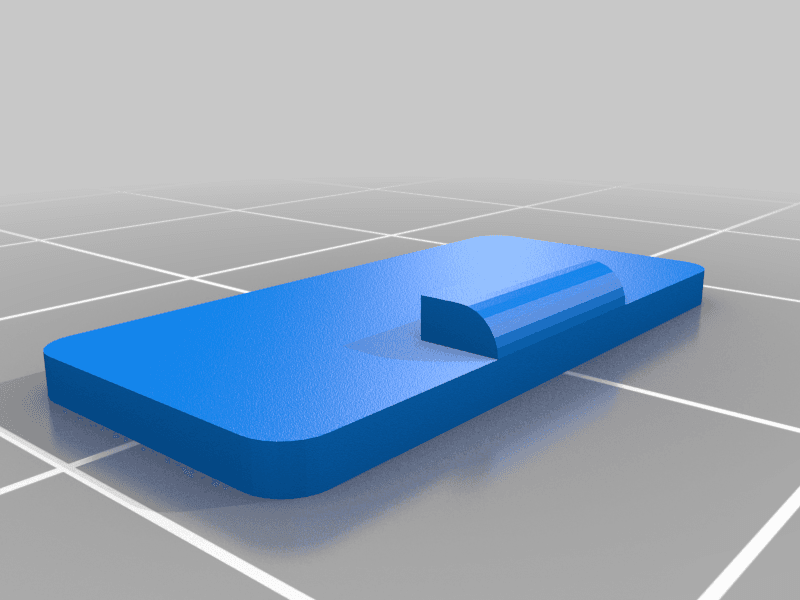

[01]BMW_E39_E46__oval_mirror_clip_repair-Body.stlBMW_E39_E46__oval_mirror_clip_repair-Body.stl.STL
[02]Bounding box17.000 × 8.000 × 2.000 mm
[03]Volume144.923 mm³

Field notes

BY - - (FINKN)

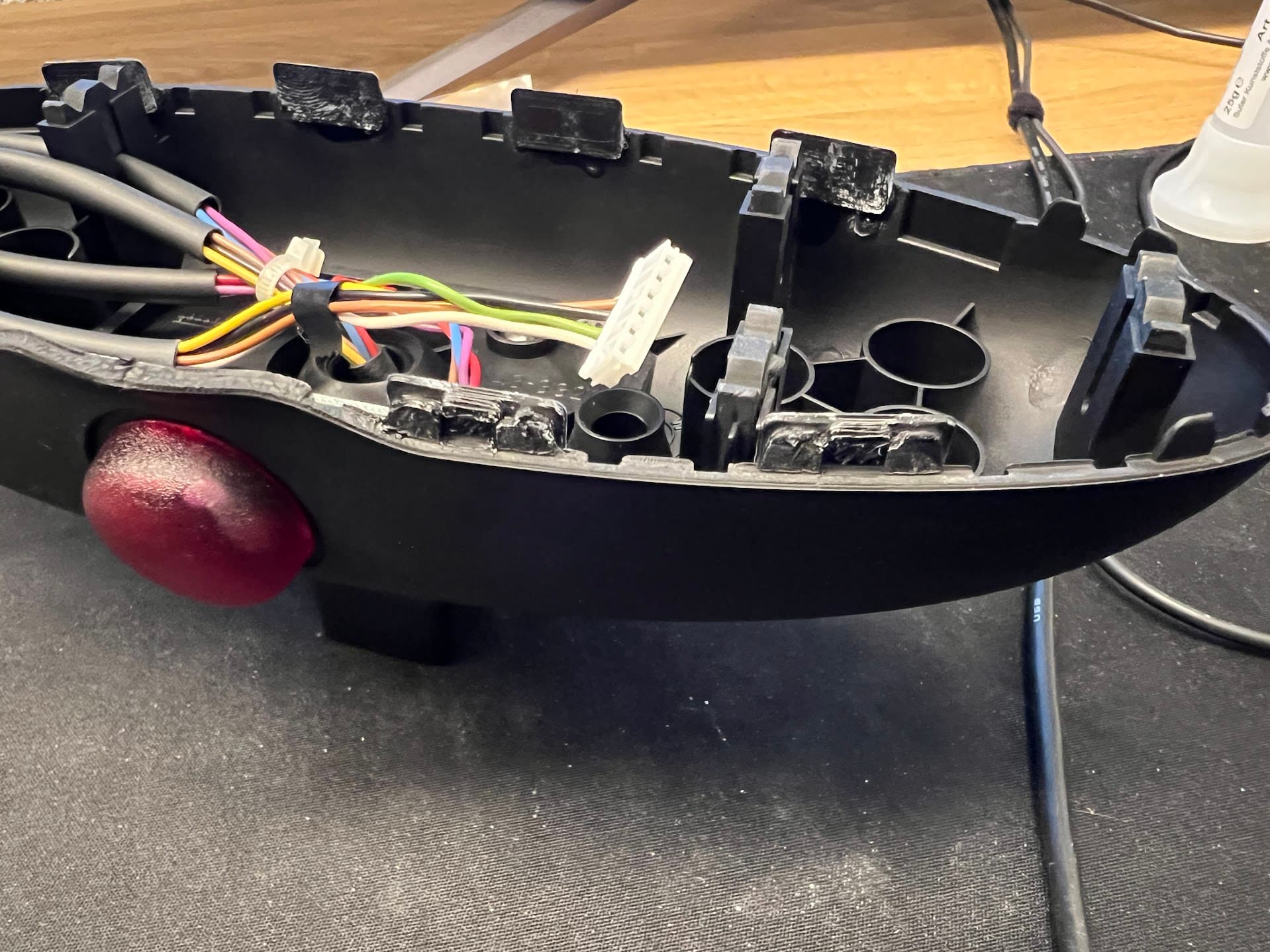

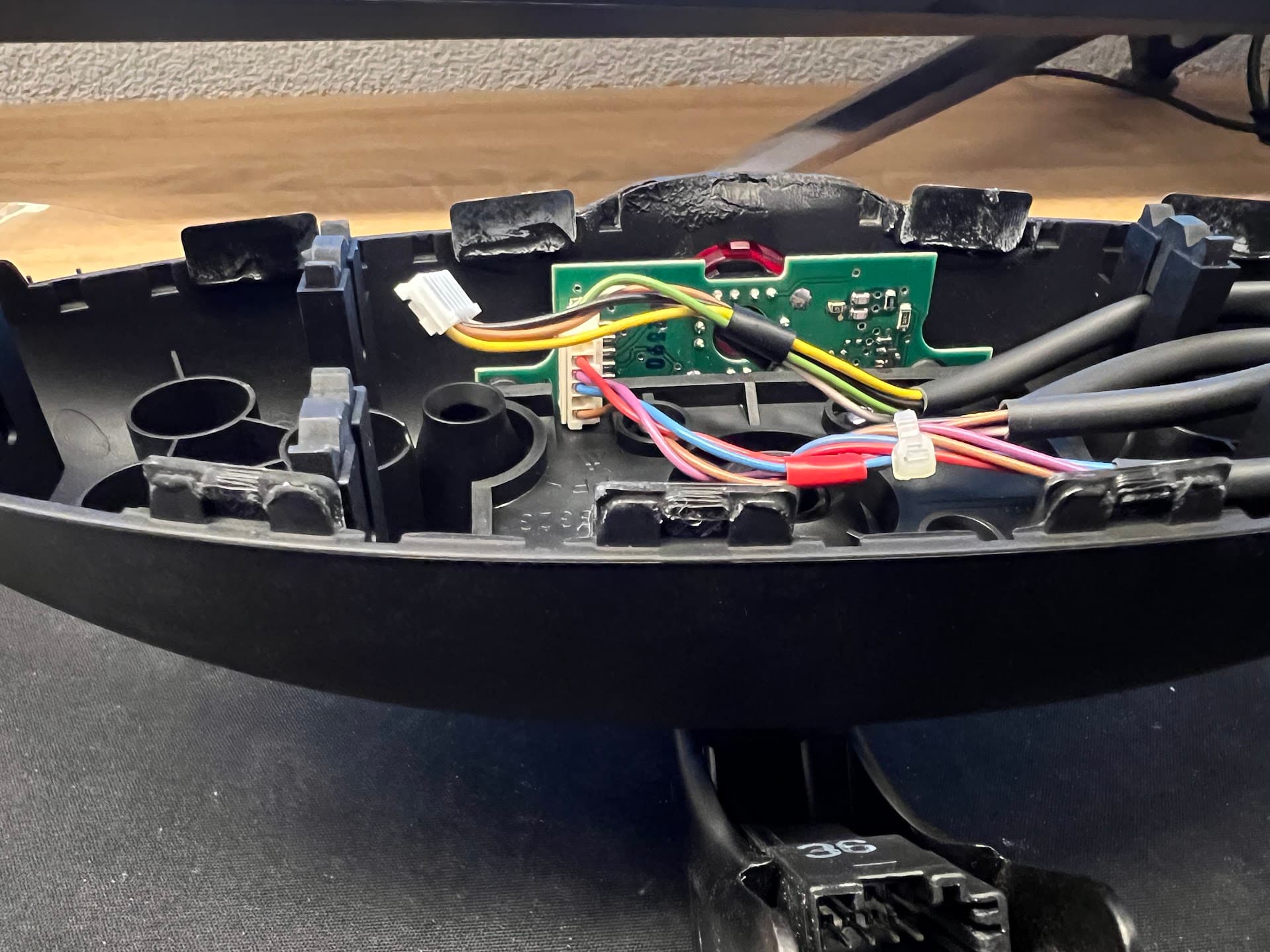

These clips can be glued in your oval mirror housing of a BMW E39 M5 or E46 M3 to repair the broken ones. Use "crazyglue" and line the clips up with the missing tabs in the housing. See photos for reference. Dry-fit before fastening and verify glass, latch, wiring and trim clearance through full operation.
