M52 Clutch Alignment Tool

ABS · Nylon · PETG1 FILECC-BYMechanical

PART RECORDREF 1382

PART: M52 Clutch Alignment Tool
OEM: —
FITS: 5 Series E39

Loading 3D viewer...

PART ID · BIMMER-3D / 1382QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1382

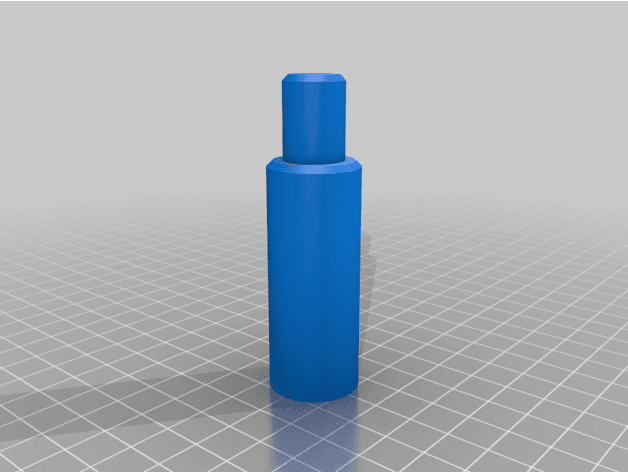

[01]BMW_M52_clutch_center.stlBMW_M52_clutch_center.stl.STL
[02]Bounding box78.000 × 23.000 × 23.000 mm
[03]Volume25,679.717 mm³

Field notes

BY NICOLAS POUCET (SCOOMMY)

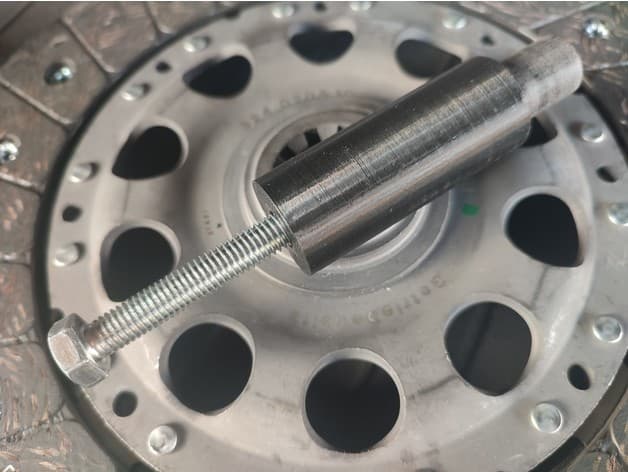

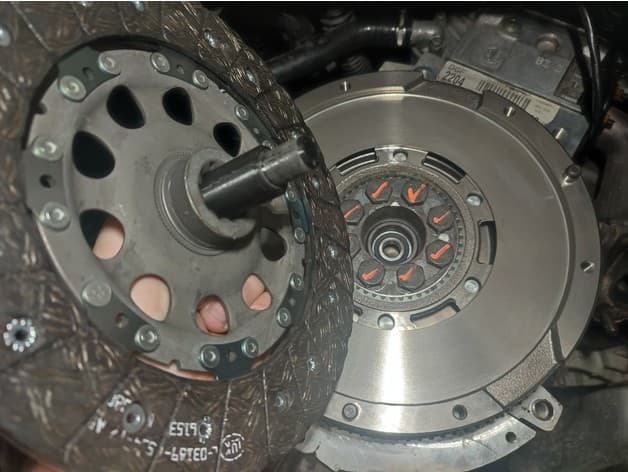

Clutch center tool for BMW M52 (and other) motor This tool is needed to mount and center the clutch, you can't used standard tool. Work perfectly on my 1998 528i e39 Creator reports successful use on a 1998 E39 528i. Verify dimensions against the original part and confirm full operation before regular use.
