BIMMER 3D PARTS
PART №1362
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

LHD Automatic-Console Cup Holder

ABS · PETGMULTI-PART6 FILESCC-BY-SAInterior
PART RECORDREF 1362
PART
LHD Automatic-Console Cup Holder
OEM
FITS
5 Series E39
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1362QTY 6 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1362

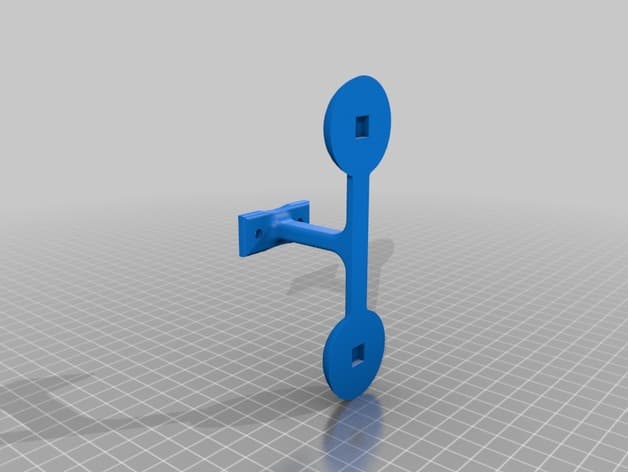

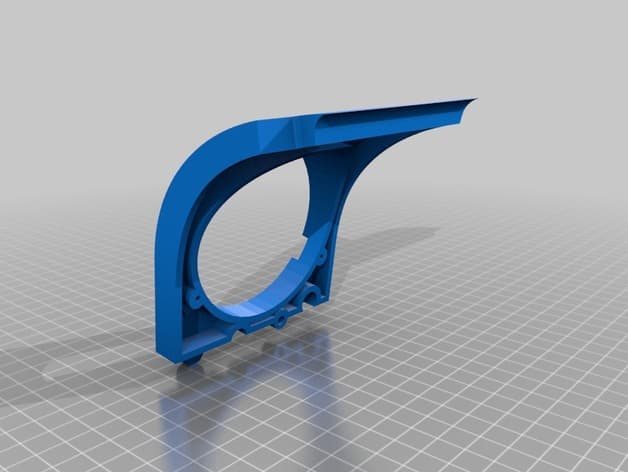

  • [01]Cup_Holder_Main_Body_back_De2.STL.STL
  • [02]Cup_Holder_Main_Body_front_De2.STL.STL
  • [03]Cup_Holder_Main_Body_support.STL.STL
  • [04]Cup_Holder_Rest.STL.STL
  • [05]Cup_Holder_Rest_Back_Support.STL.STL
  • [06]Cup_Holder_Rest_Front_Support.STL.STL
  • [07]Bounding box187.662 × 126.763 × 102.659 mm
  • [08]Volume107,465.209 mm³
Field notes
BY FADI J. (001FJ)

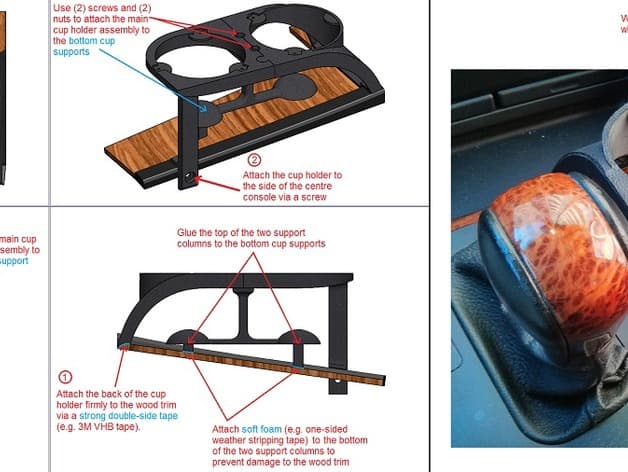

Older German cars are notorious for having bad cup holder, the BMW E39's cup holders are some of the worst. Here is what's wrong with the front OEM cup holders: -They are flimsy and weak so cups tip over. -The bottoms are shallow so any cup with more than 2" of drink in it will tip over. -The centre console design tapers backward as it goes up so any long cups tip backward. -The cup holder are located in front of the climate controls, heated seats and parking sensor button, so you cannot access those buttons if there is a cup in the cup holder! -The climate control sensor is locate above the cup holder so hot drinks (e.g. in the winter) turn on the AC, and cold drinks (e.g. in the summer) turn on the heater! So it's not only the OEM design that's bad but also its location. In my design I solved both the design and location problems. I use this cup holder in my car (see image) and it works and looks great: No tipped over cups, no spills or burns, no tempering with the AC temperature, and no blocking of any controls! My cup holder design does not interfere with the stereophonic function of the transmission, so you still get to enjoy changing gears when you want to! Please note that t Creator limits fitment to 1997-2003 left-hand-drive E39 cars with automatic transmission. Verify dimensions against the original part and confirm full operation before regular use.
