Headlamp Adjuster Pair

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYLights
PART RECORDREF 1355
PART
Headlamp Adjuster Pair
OEM
FITS
5 Series E39
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1355QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1355
  • [01]bmw_headlamp_adj1_v3.stl.STL
  • [02]bmw_headlamp_adj2_v3.stl.STL
  • [03]Bounding box77.549 × 27.200 × 18.850 mm
  • [04]Volume9,837.545 mm³
Field notes
BY EGIL KVALEBERG (EGIL)

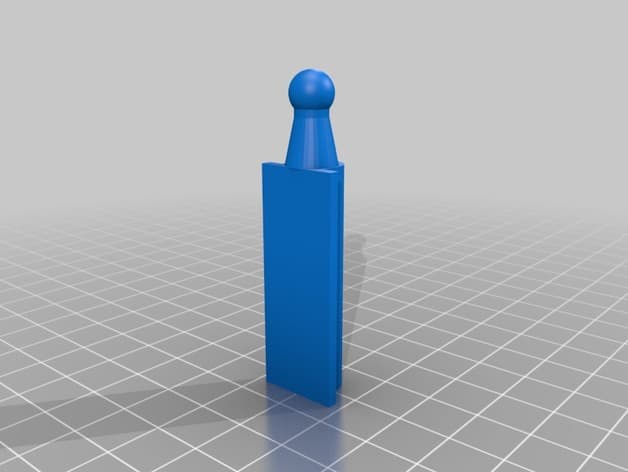

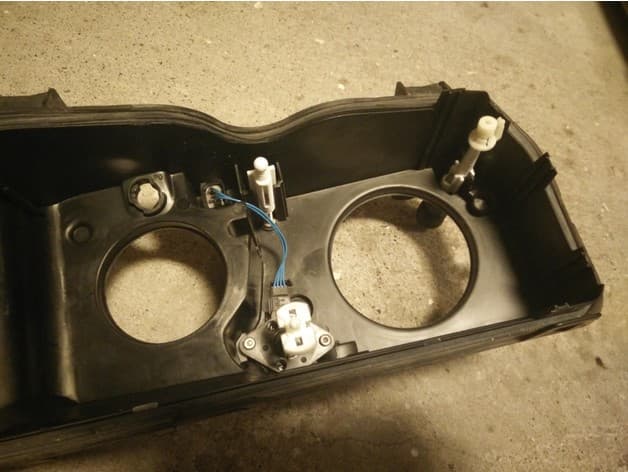

These headlamp adjusters are for the BMW E39 series (5-series from 1996 onwards). The originals are made of some material that gets super brittle with age, and pretty much self destruct. Thus making the headlamps aim far too low, and wobble when driving over the slightest dump. BMWs own solution is to supply new lamps as complete units, price probably approaching $1000. To fix, you need to take the headlamp units apart, which is actually quite easy. There are various instructions on the net, The two manual adjusters simply fully unscrew to release. The third adjuster, connected to a motor, is released by turning the exposed 5mm plastic nut 90 degrees (not all variants have this feature). One word of warning: Do not touch the reflectors, they are very easily destroyed by attempts of cleaning. You need one of each of these per side. They will work for the early halogen units, but may need modification for "angel eyes", and I have no idea about Xenon. Note also that the shape is different from the originals. I believe these may be slightly better - the originals were limited by what you could do with casting. For best strength you should ideally print them laying down, but then some s Verify dimensions against the original part and confirm full operation before regular use.
