Door-Mirror Adjustment Pin

ABS · Nylon · PETG1 FILECC-BYExterior
PART RECORDREF 1376
PART
Door-Mirror Adjustment Pin
OEM
FITS
5 Series E39
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1376QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1376
  • [01]MirrorAdjustPin.STL.STL
  • [02]Bounding box21.299 × 6.600 × 5.997 mm
  • [03]Volume193.623 mm³
Field notes
BY ZSOLT HÉVIZI (HEVIZIZS81)

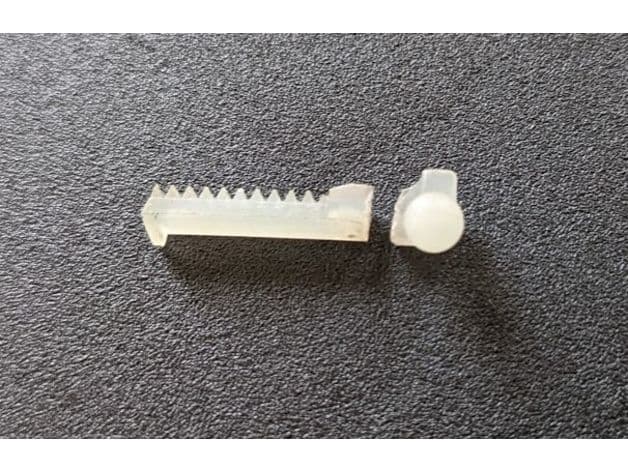

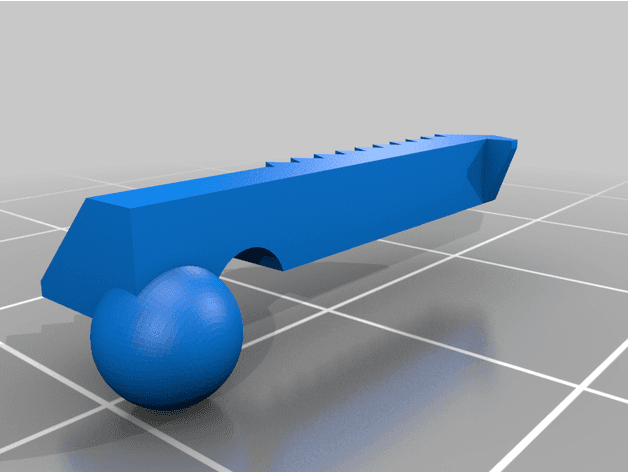

The mirror adjuster on my E39 stopped moving the mirror in left-right direction, however I could still hear the small motor working. After removing the mirror plate, I found a small plastic component broken. Of course you can't buy this part, only the whole assembly (the one where I marked the pins with red arrows) for 100 USD :). Based on the broken component, I copied the part and printed it. It works perfectly!! Please note that if you need this for up-down motion, you will need to mirror the part before printing. Verify dimensions against the original part and confirm full operation before regular use.
