Wiper-Arm Nut Cover Cap

REPLACES OEM61611370387

ABS · PETG1 FILECC-BY-NC-SAWipers

PART RECORDREF 1327

PART: Wiper-Arm Nut Cover Cap
OEM: 61611370387
FITS: 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1327QTY 1 · STLHANDLE · NO SUPPORTS

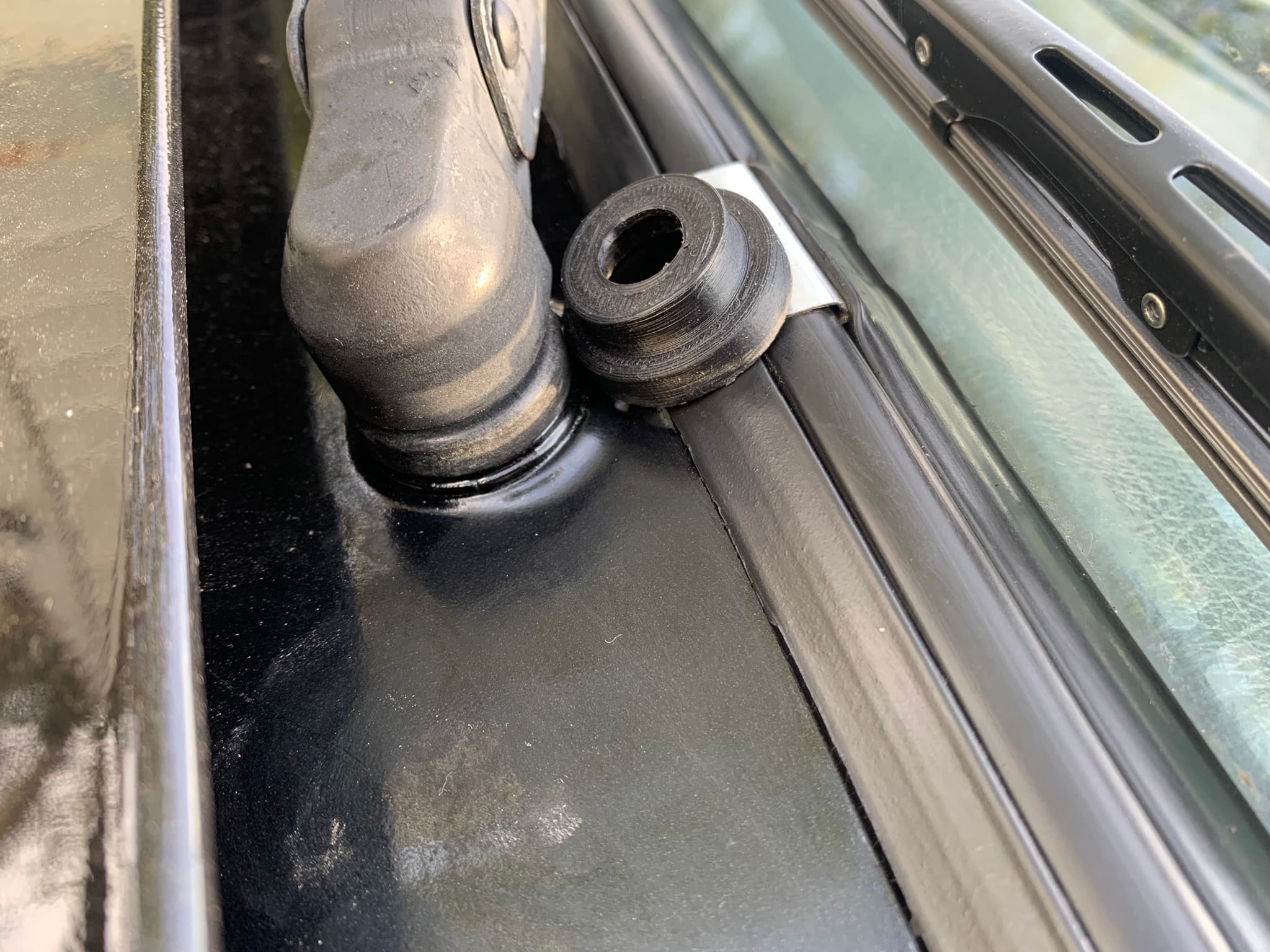

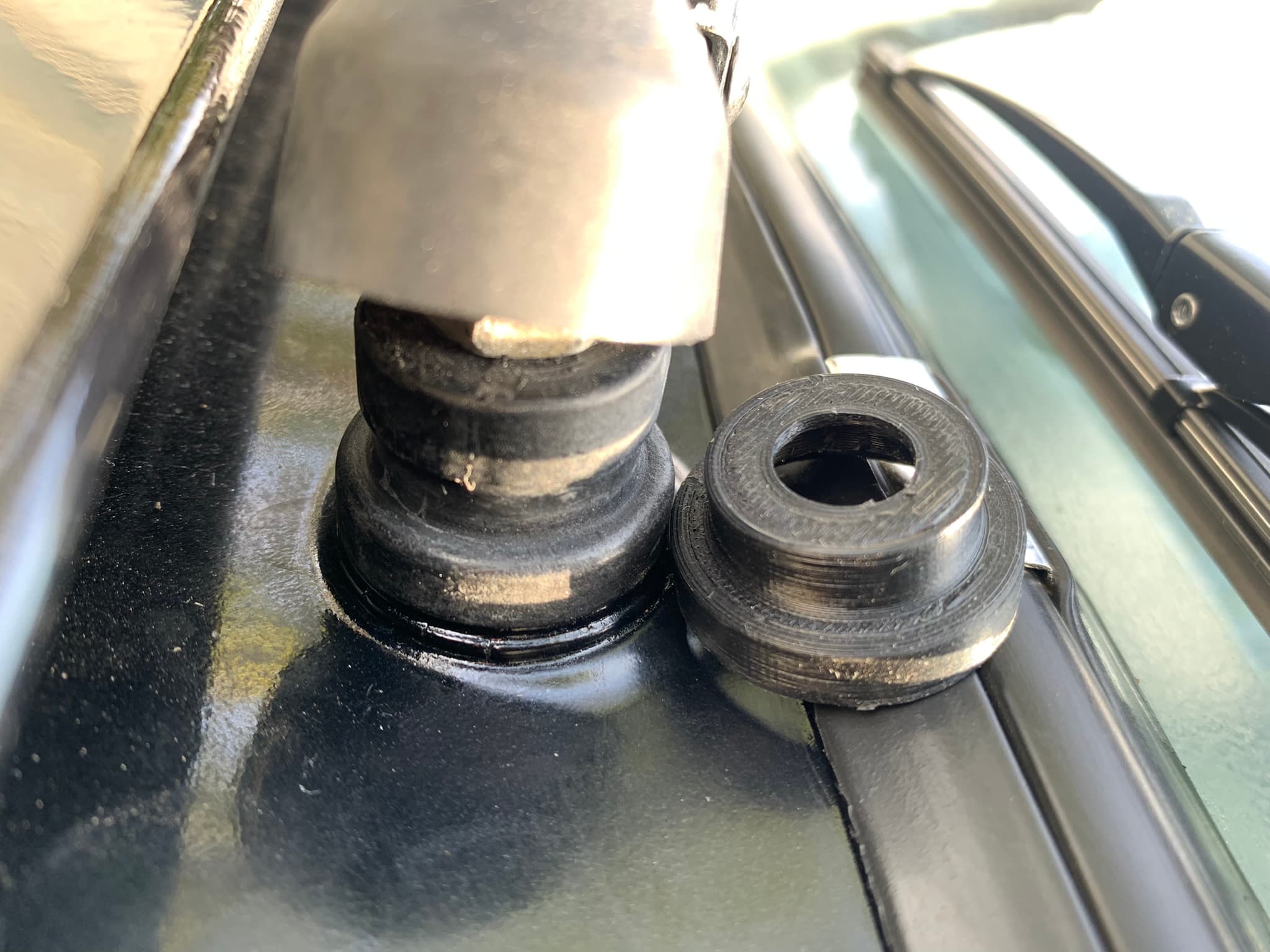

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1327

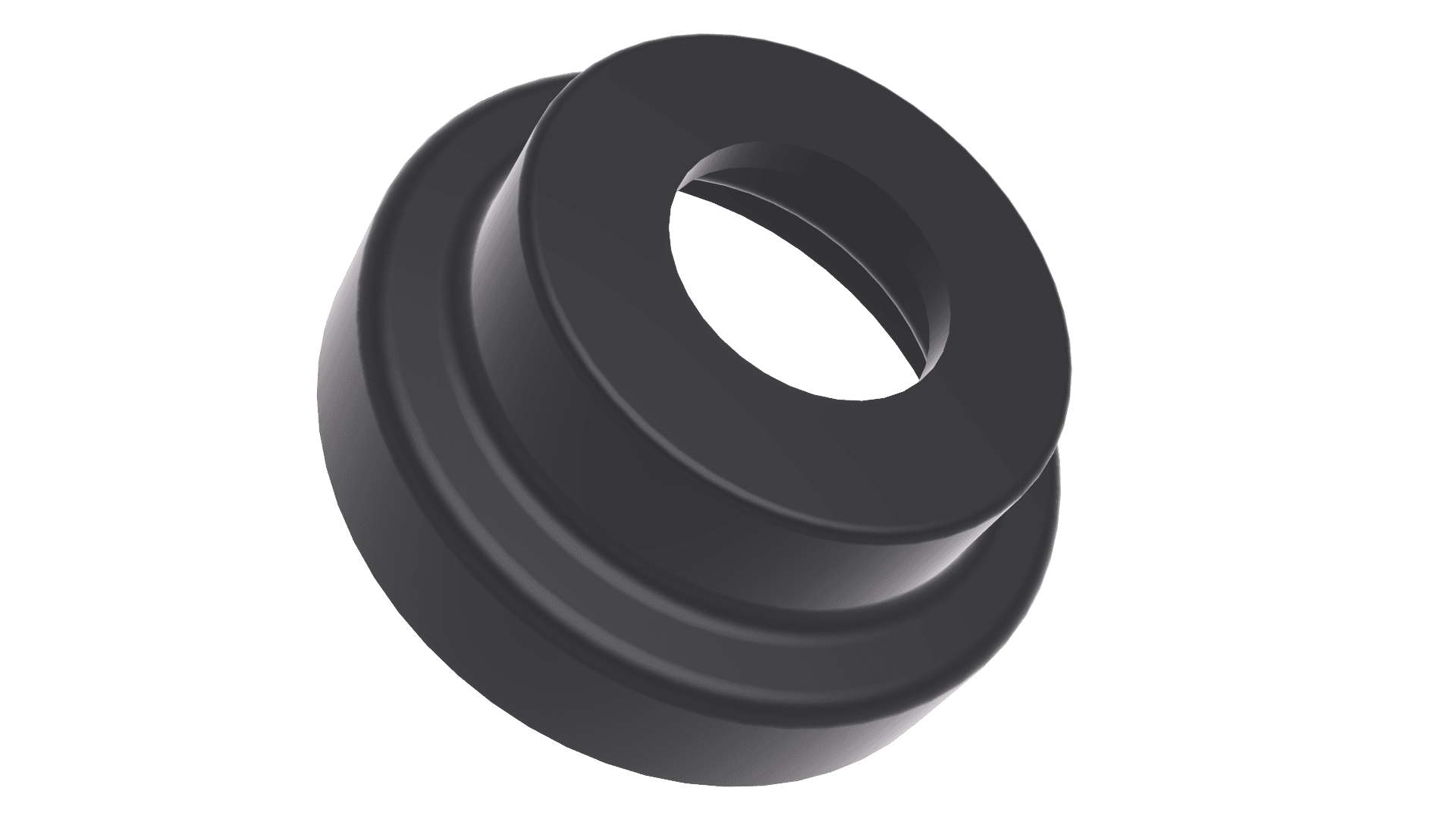

[01]bmwe30_wiperarmbushing-v6.stlbmwe30_wiperarmbushing-v6.stl.STL
[02]Bounding box27.997 × 27.993 × 12.000 mm
[03]Volume1,820.649 mm³

Field notes

BY KOTYARKO_O

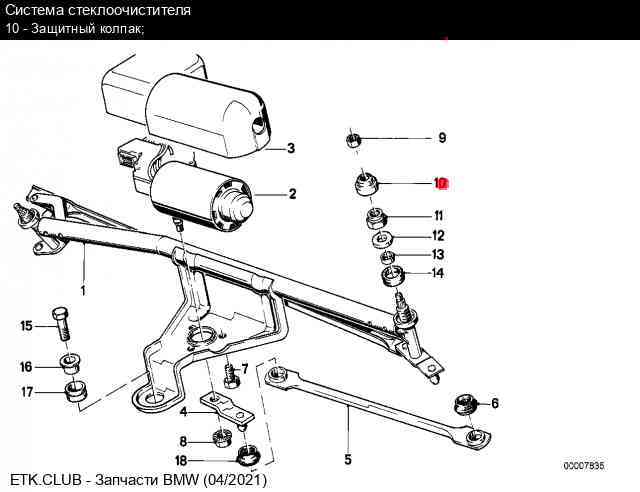

Replacement cap for the windshield-wiper arm retaining nut on BMW E28 and E30. The creator reproduced the current shape from an original part and reports a perfect fit. BMW number 61611370387 is the black covering cap, used on the passenger side of LHD cars and driver side of RHD cars in the creator's application; confirm side, arm style and production date by VIN.
