Rear-Sunshade Lower Hook Holder

REPLACES OEM51461905393 · 82129413177

ABS · PETG2 FILESCC-BY-NC-SAInterior

PART RECORDREF 1326

PART: Rear-Sunshade Lower Hook Holder
OEM: 51461905393, 82129413177
FITS: 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1326QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

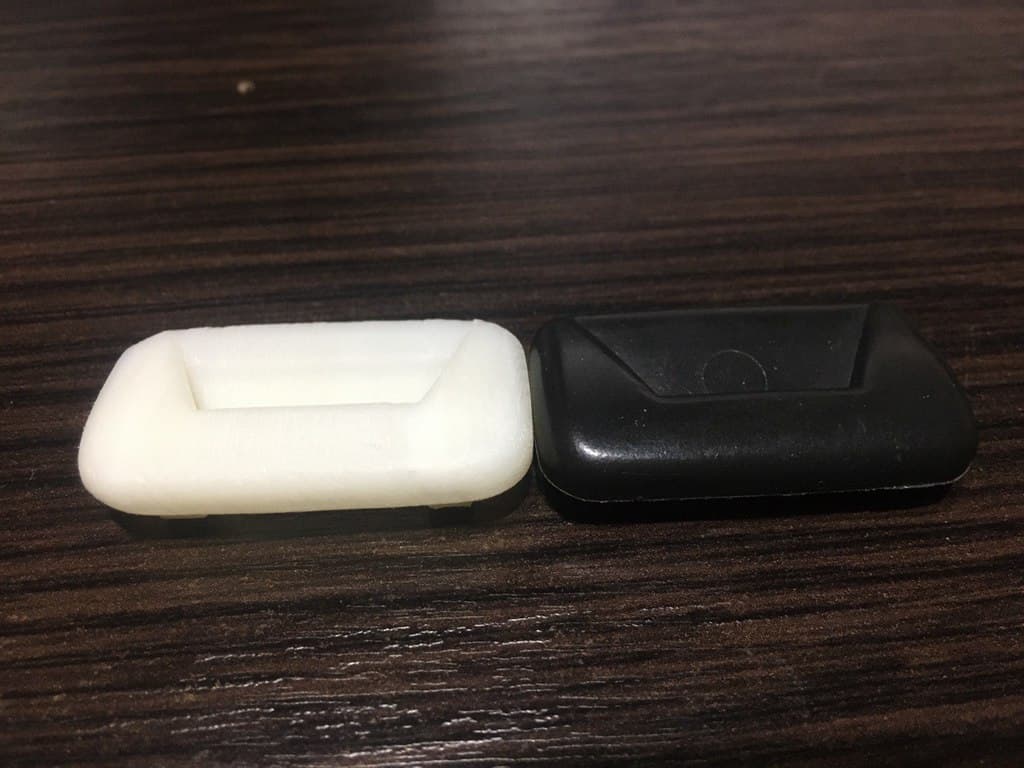

PLATE 01 / 05No caption recorded

Build sheet

MAN-1326

[01]bmwe30_rearsunshadehookholderfit82_12_9_413_177_v27.stlbmwe30_rearsunshadehookholderfit82_12_9_413_177_v27.stl.STL
[02]bmwe30_rearsunshadehookholderorig82_12_9_413_177_v2.stlbmwe30_rearsunshadehookholderorig82_12_9_413_177_v2.stl.STL
[03]Bounding box39.000 × 22.200 × 9.331 mm
[04]Volume3,458.481 mm³

Field notes

BY KOTYARKO_O

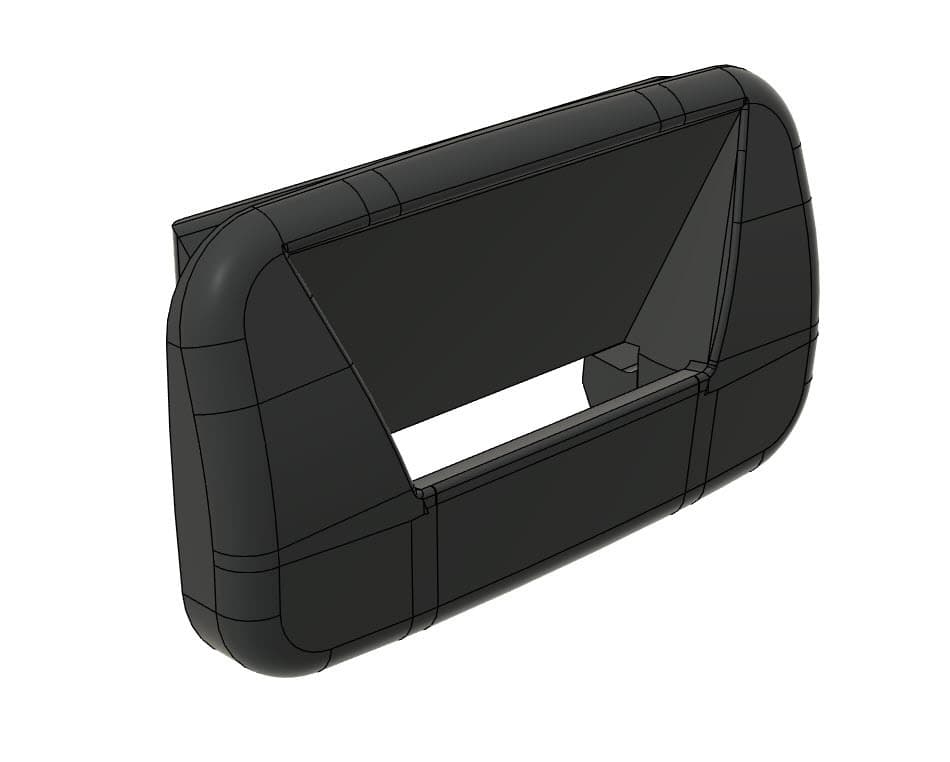

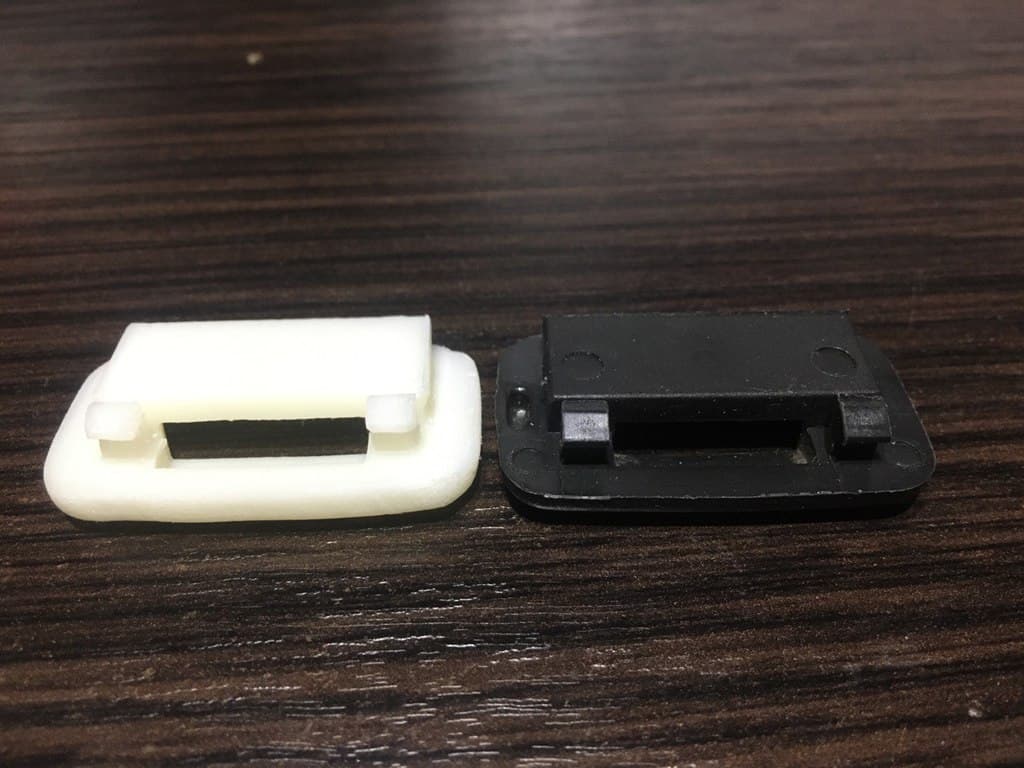

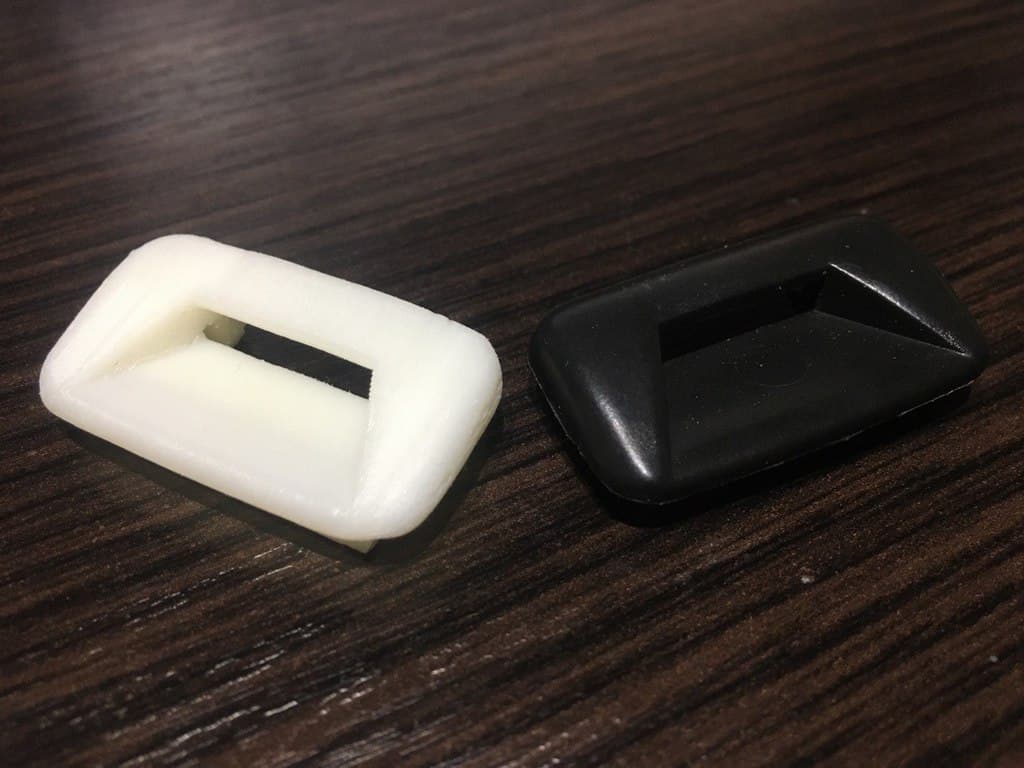

Two alternative lower hook-holder geometries for the BMW accessory rear roller sunshade: an original-dimension version and a tighter-fit version tested in an early 1985 car. BMW references include discontinued white accessory hook 82129413177 and anthracite holder 51461905393, which supersedes 51461887130. E28/E30 body, production date, color and accessory installation vary; compare the no-screw-hole mounting style before use.
