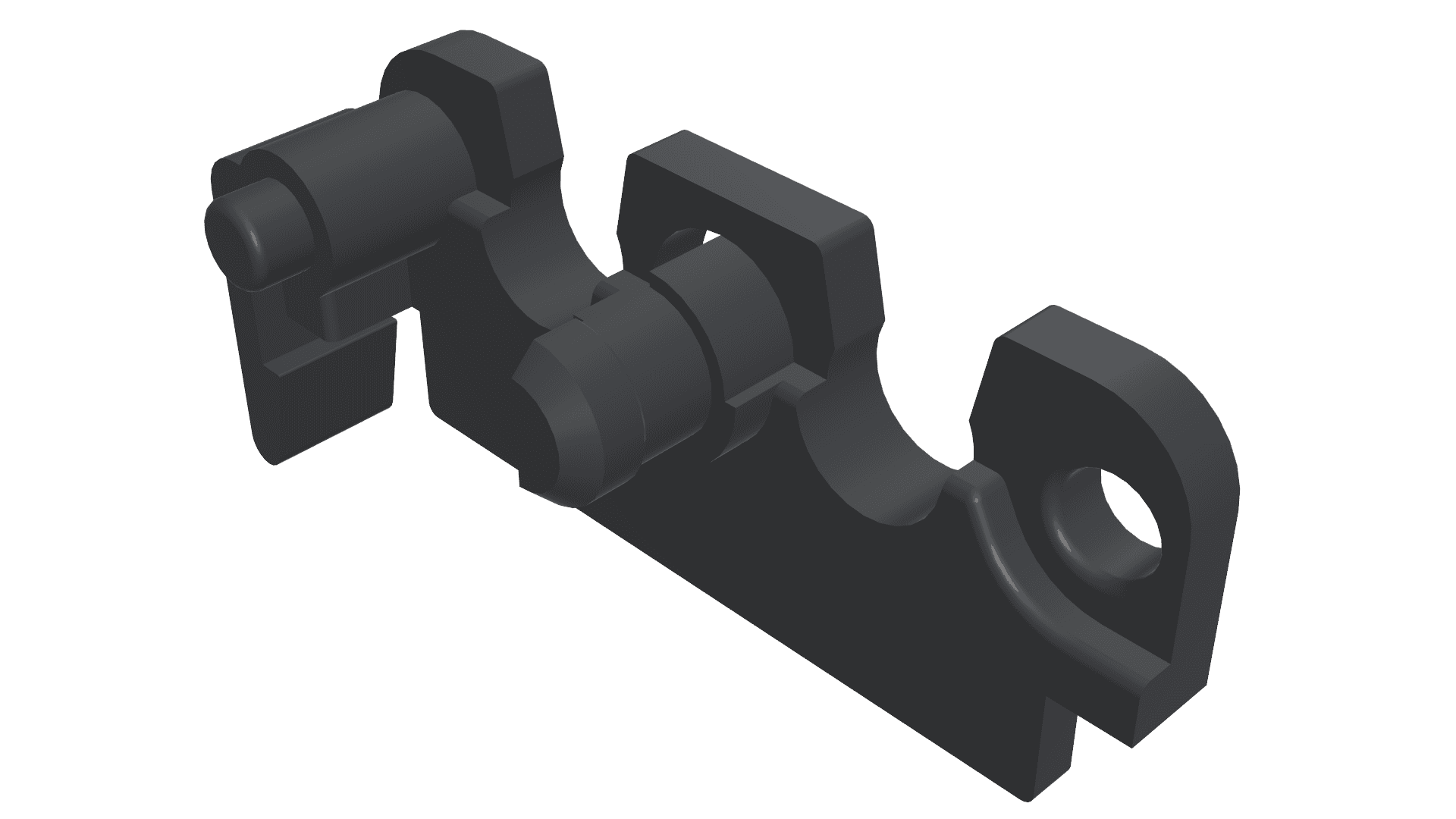

518i M10 Throttle-Linkage Nipple

REPLACES OEM13541286378

Nylon1 FILECC-BY-NC-SAMechanical

PART RECORDREF 1329

PART: 518i M10 Throttle-Linkage Nipple
OEM: 13541286378
FITS: 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1329QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

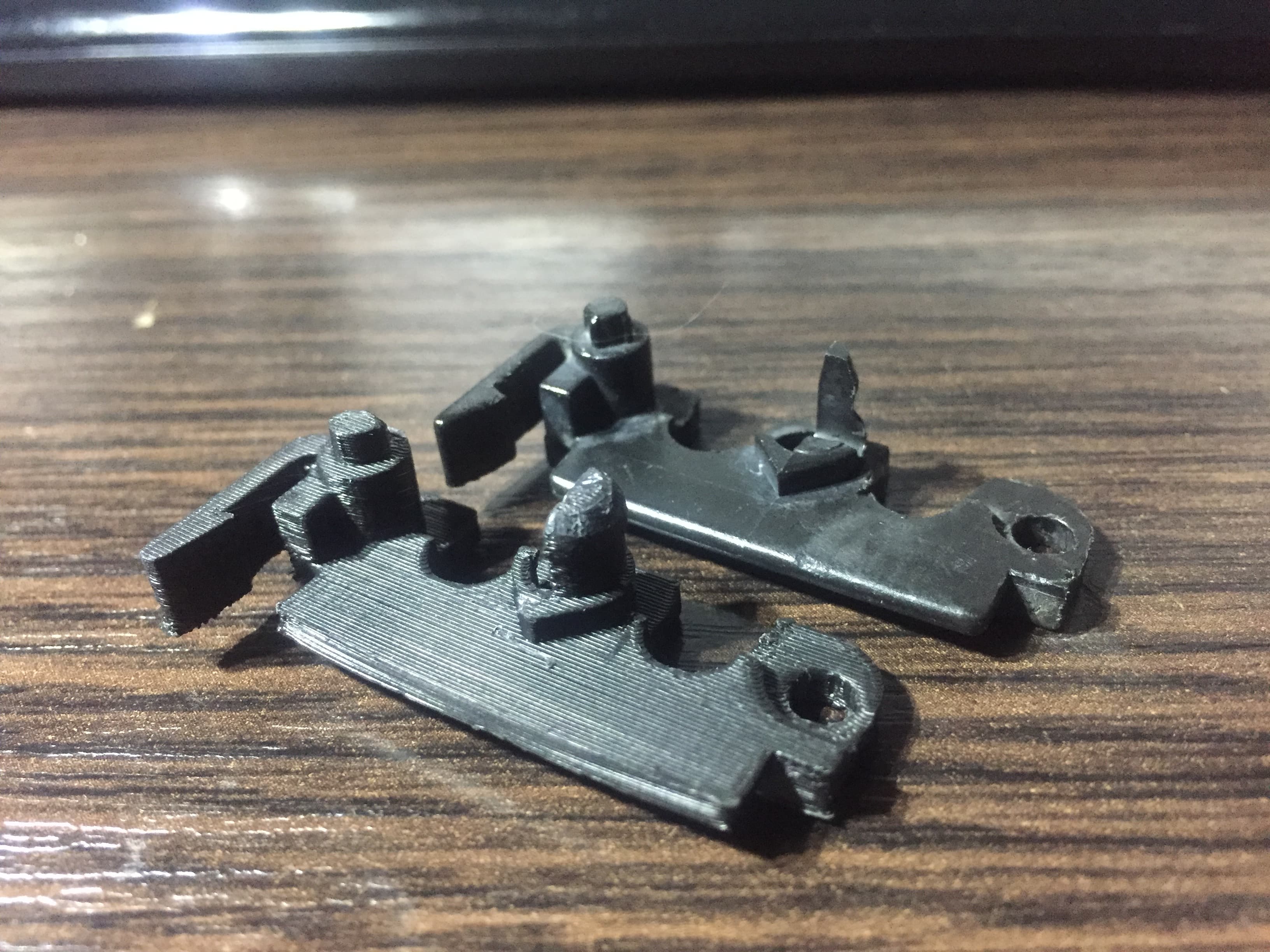

PLATE 01 / 05No caption recorded

Build sheet

MAN-1329

[01]bmwe30_throttlebodynipple13-54-1-286-378-v10.stlbmwe30_throttlebodynipple13-54-1-286-378-v10.stl.STL
[02]Bounding box41.500 × 18.970 × 11.800 mm
[03]Volume1,890.894 mm³

Field notes

BY KOTYARKO_O

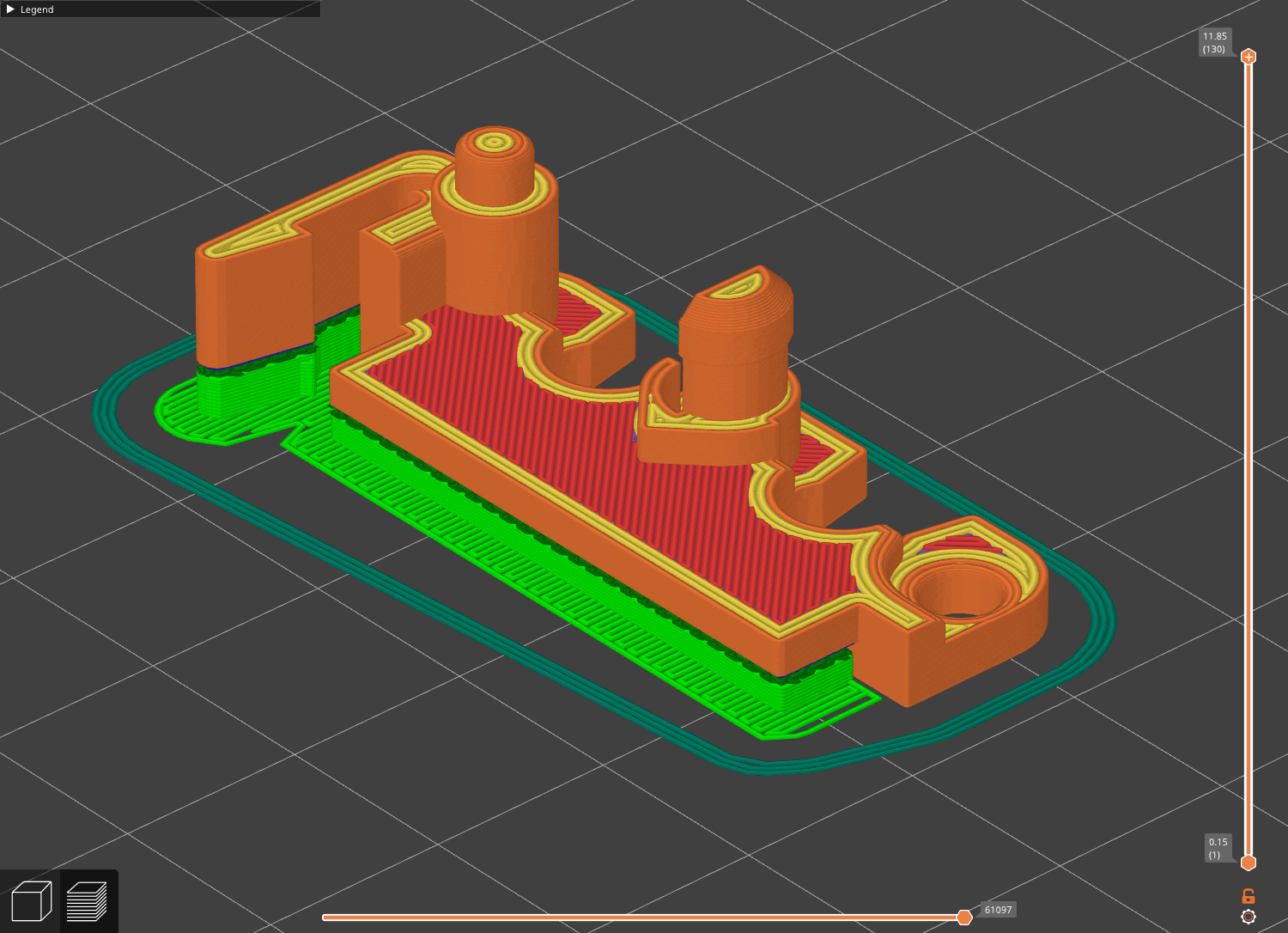

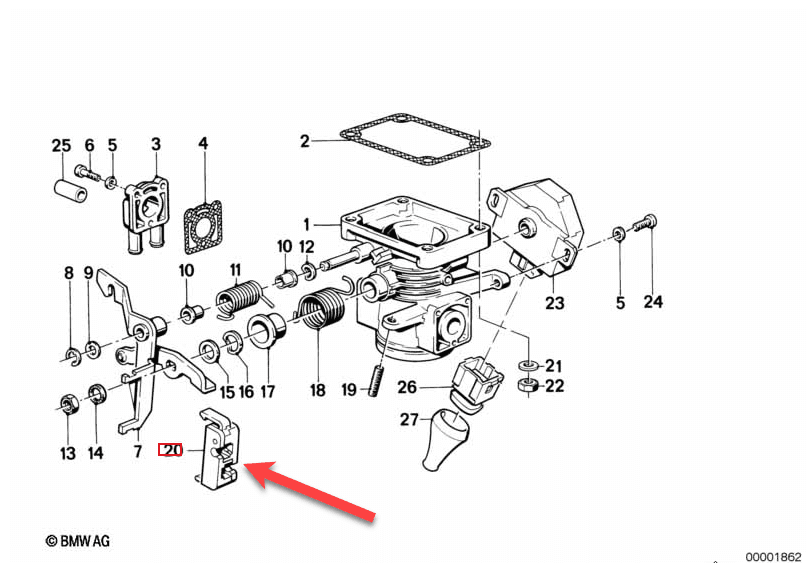

Replacement throttle-body linkage/cable nipple for the M10-powered BMW E28 518i; two identical pieces are required in the catalog assembly. The design is based on an original part and includes print-orientation guidance. BMW number 13541286378 is cataloged specifically for E28 518i M10 applications and selected M10-powered E30 models, not every E28 engine.

View original source ↗
