Wiring Clip

REPLACES OEM61131362825 · 63121364431

ABS · PETG1 FILECC-BY-NC-SAElectrical

PART RECORDREF 1080

PART: Wiring Clip
OEM: 61131362825, 63121364431
FITS: 3 Series E21, 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1080QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

9 PLATES

PLATE 01 / 09No caption recorded

Build sheet

MAN-1080

[01]BmwE30_wiringClip63_12_1_364_431_v3.stlBmwE30_wiringClip63_12_1_364_431_v3.stl.STL
[02]Bounding box24.257 × 14.282 × 12.500 mm
[03]Volume1,088.086 mm³

Field notes

BY KOTYARKO_O

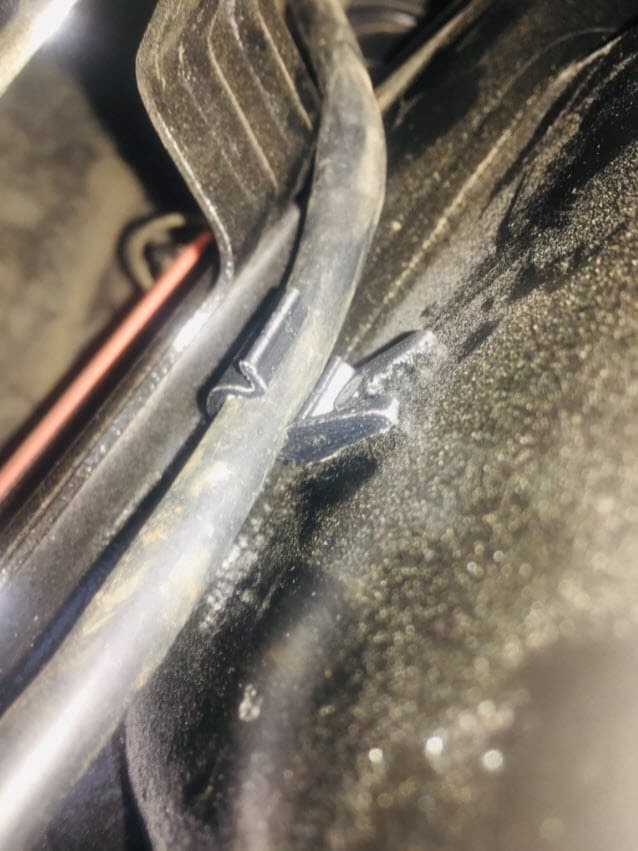

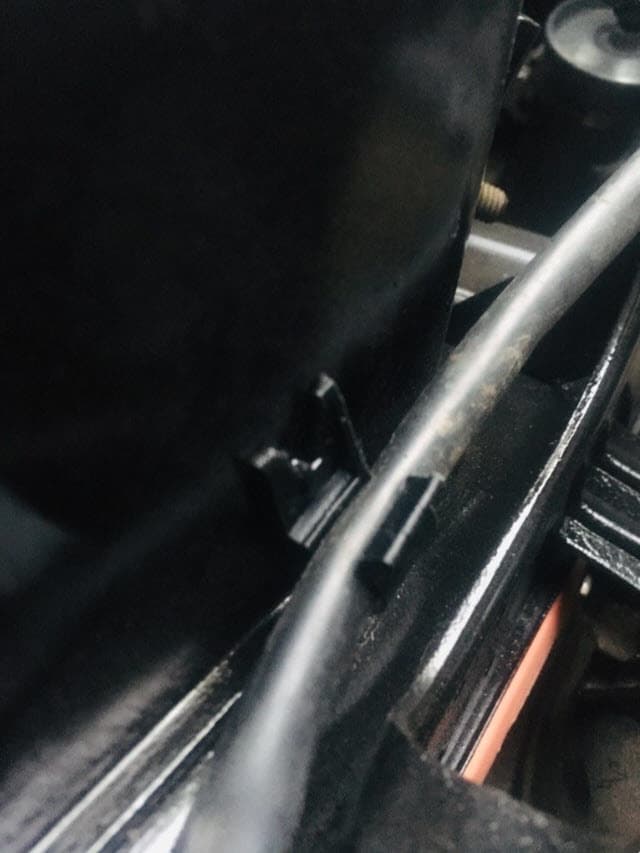

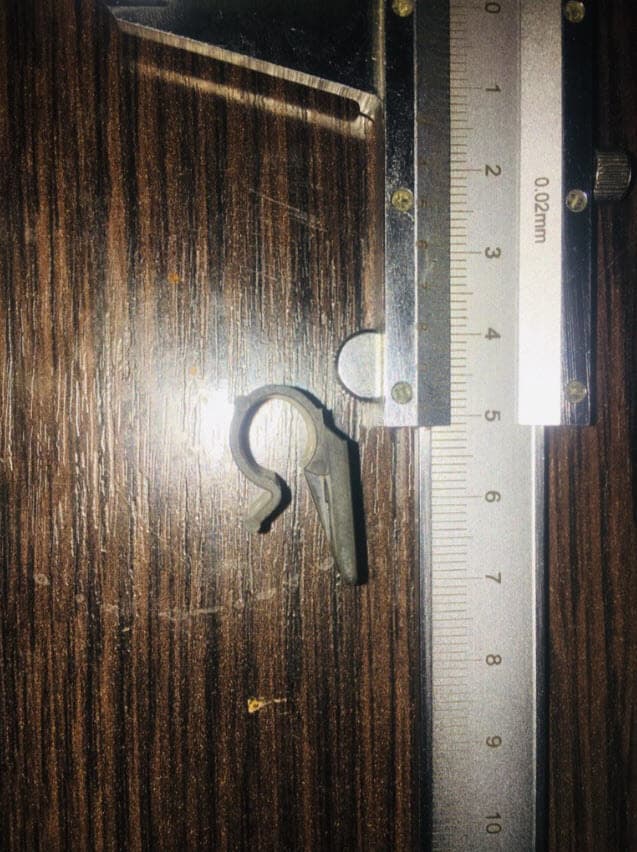

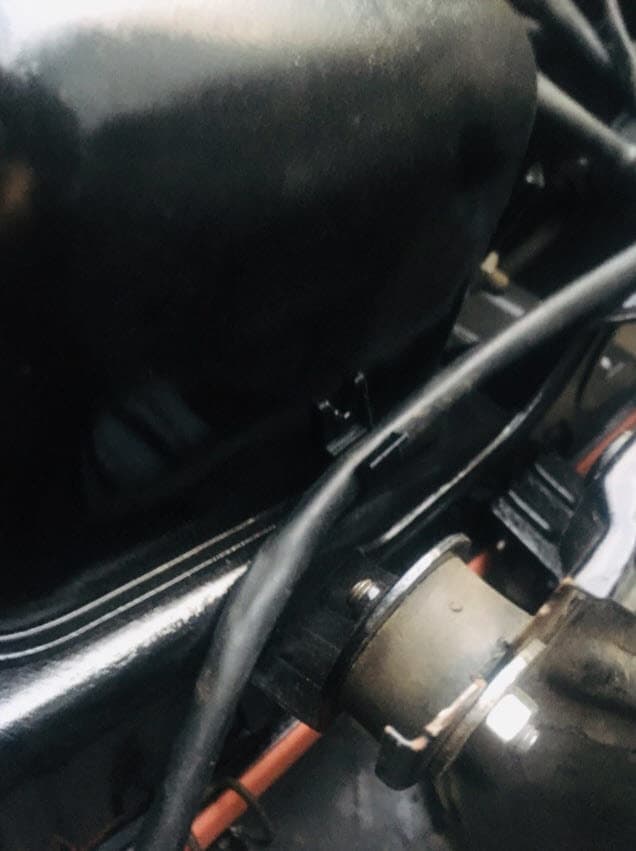

Dimensioned replacement wiring clip for BMW E21, E28 and E30, physically shown in use. BMWFans identifies the two creator-listed catalog applications as cable clamp 63121364431 and clamp 61131362825. Use heat-resistant material and verify loom diameter and mounting-hole retention.

View original source ↗
