Door-Lock Knob Sleeve

ABS · PETG1 FILECC-BY-NC-SADoors

PART RECORDREF 1082

PART: Door-Lock Knob Sleeve
OEM: —
FITS: 3 Series E21, 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1082QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1082

[01]BmwE30_doorLockKnobSleeve_v1.stlBmwE30_doorLockKnobSleeve_v1.stl.STL
[02]Bounding box17.398 × 17.396 × 7.449 mm
[03]Volume435.161 mm³

Field notes

BY KOTYARKO_O

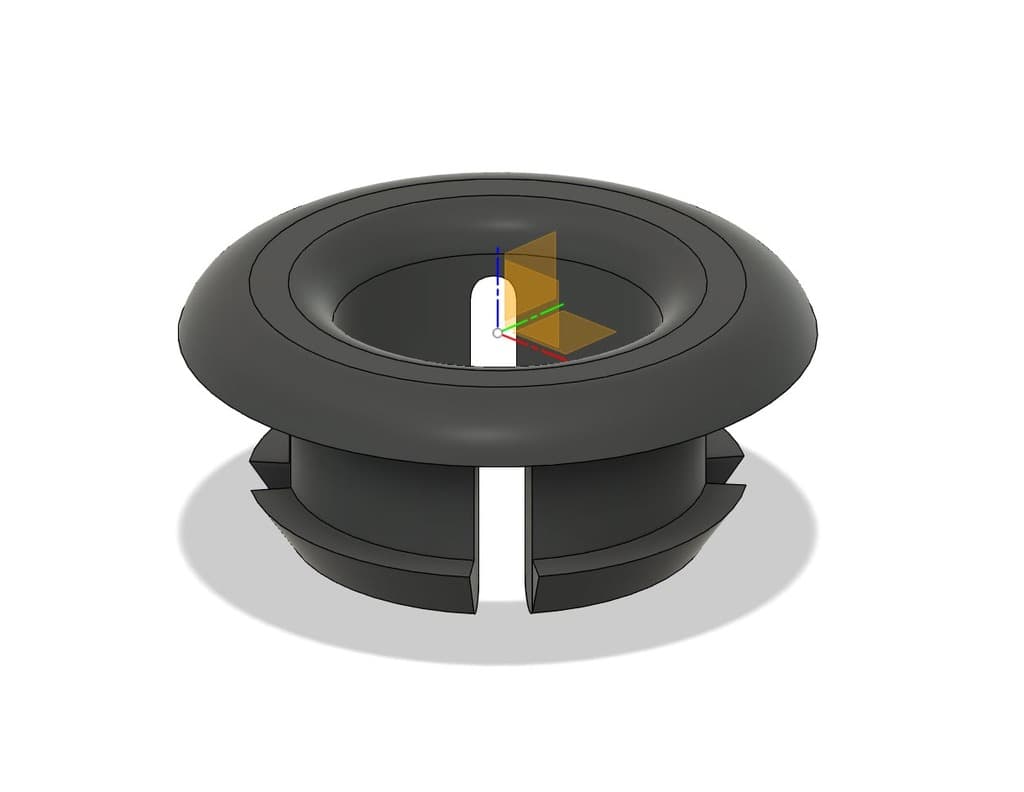

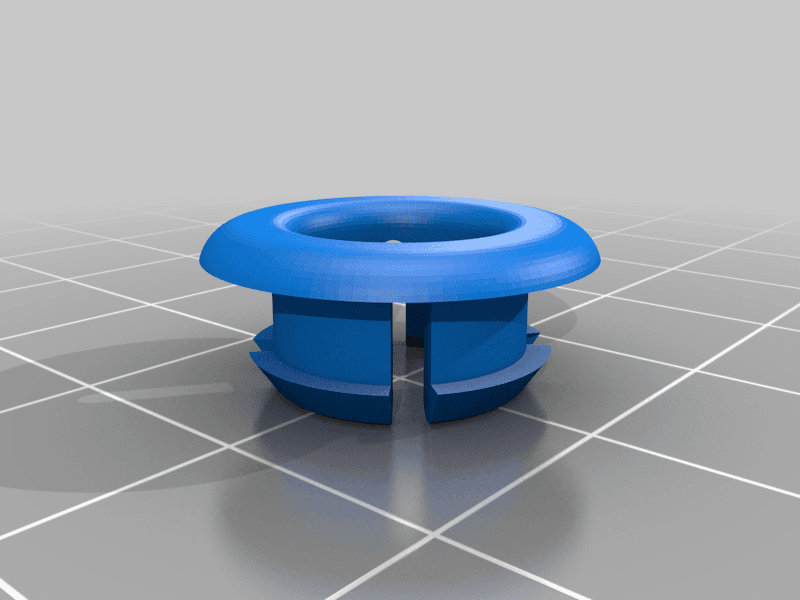

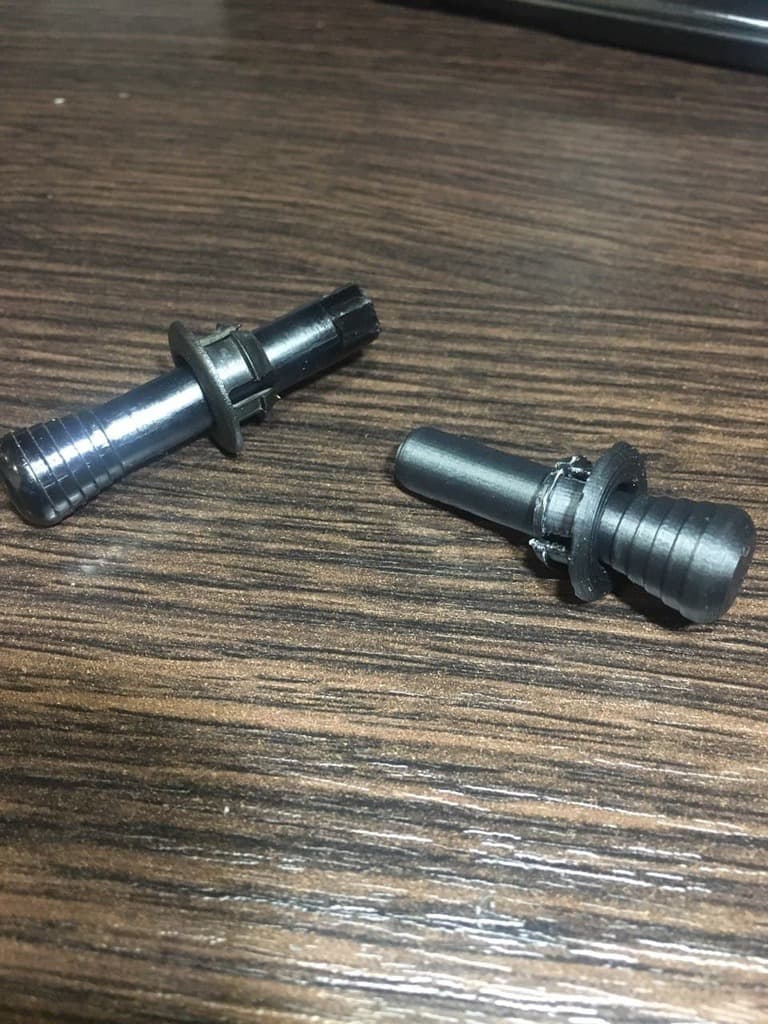

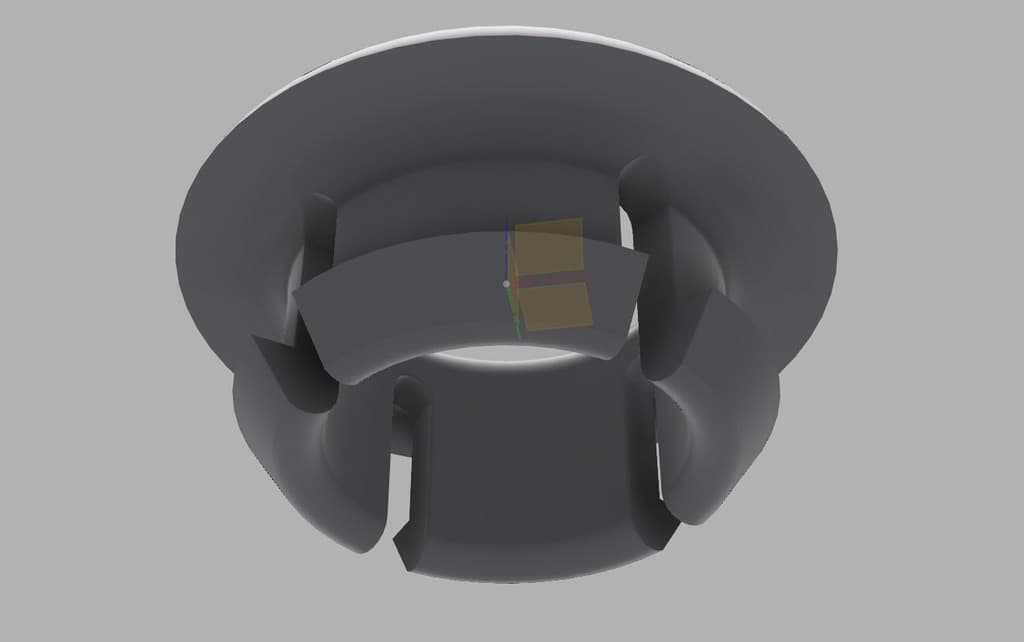

Replacement door-lock knob sleeve for BMW E21, E28 and E30, enlarged slightly for improved fit and physically demonstrated with the matching knob. The creator's two catalog references cover both sleeve and knob; neither is submitted here because public catalogs did not unambiguously map one number to this modified sleeve.

View original source ↗
