Door-Lock Knob

ABS · PETG1 FILECC-BY-NC-SADoors

PART RECORDREF 1083

PART: Door-Lock Knob
OEM: —
FITS: 3 Series E21, 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1083QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1083

[01]BmwE30_doorLockKnob_v1.stlBmwE30_doorLockKnob_v1.stl.STL
[02]Bounding box42.000 × 11.930 × 11.926 mm
[03]Volume1,839.248 mm³

Field notes

BY KOTYARKO_O

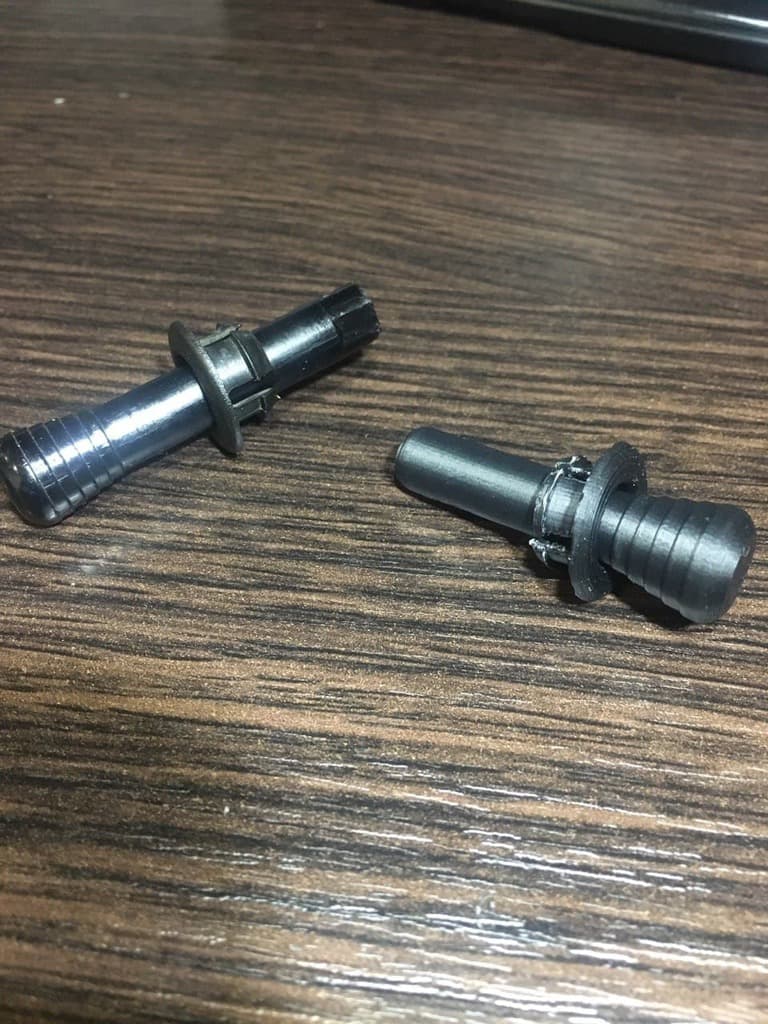

Replacement door-lock knob for BMW E21, E28 and E30, physically shown beside the original hardware and designed to work with the original or matching printable sleeve. The creator's mixed knob/sleeve catalog references are intentionally omitted. Verify pin diameter and retention.

View original source ↗
