Dome-Light Switch Knob

ABS · Nylon1 FILECC-BY-NC-SAElectrical

PART RECORDREF 1086

PART: Dome-Light Switch Knob
OEM: —
FITS: 3 Series E21, 3 Series E30, 5 Series E12

Loading 3D viewer...

PART ID · BIMMER-3D / 1086QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1086

[01]bmwe30_domelightswitchknob_hella63-31-1-363-234-v8.stepbmwe30_domelightswitchknob_hella63-31-1-363-234-v8.step.STL

Field notes

BY KOTYARKO_O

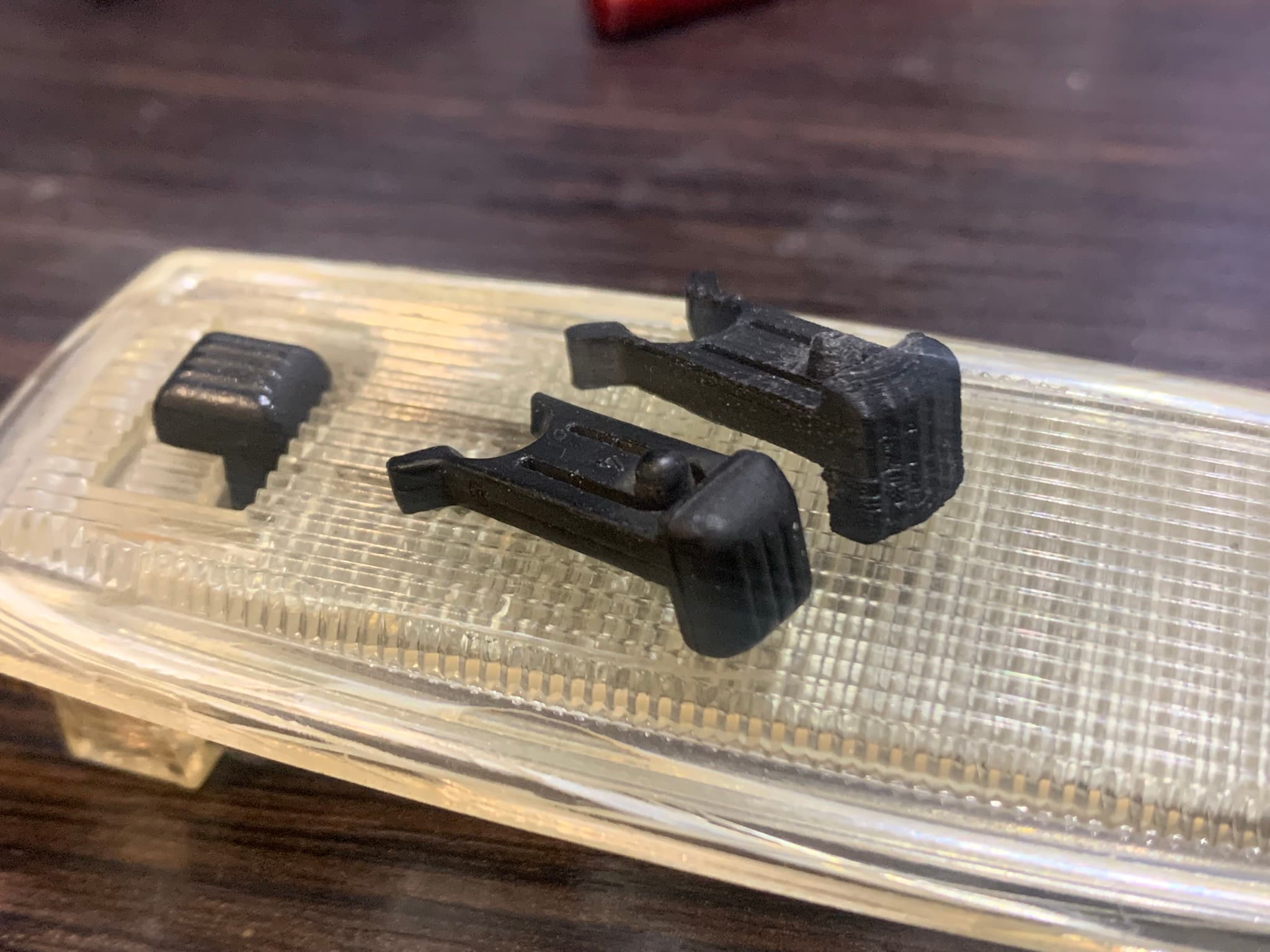

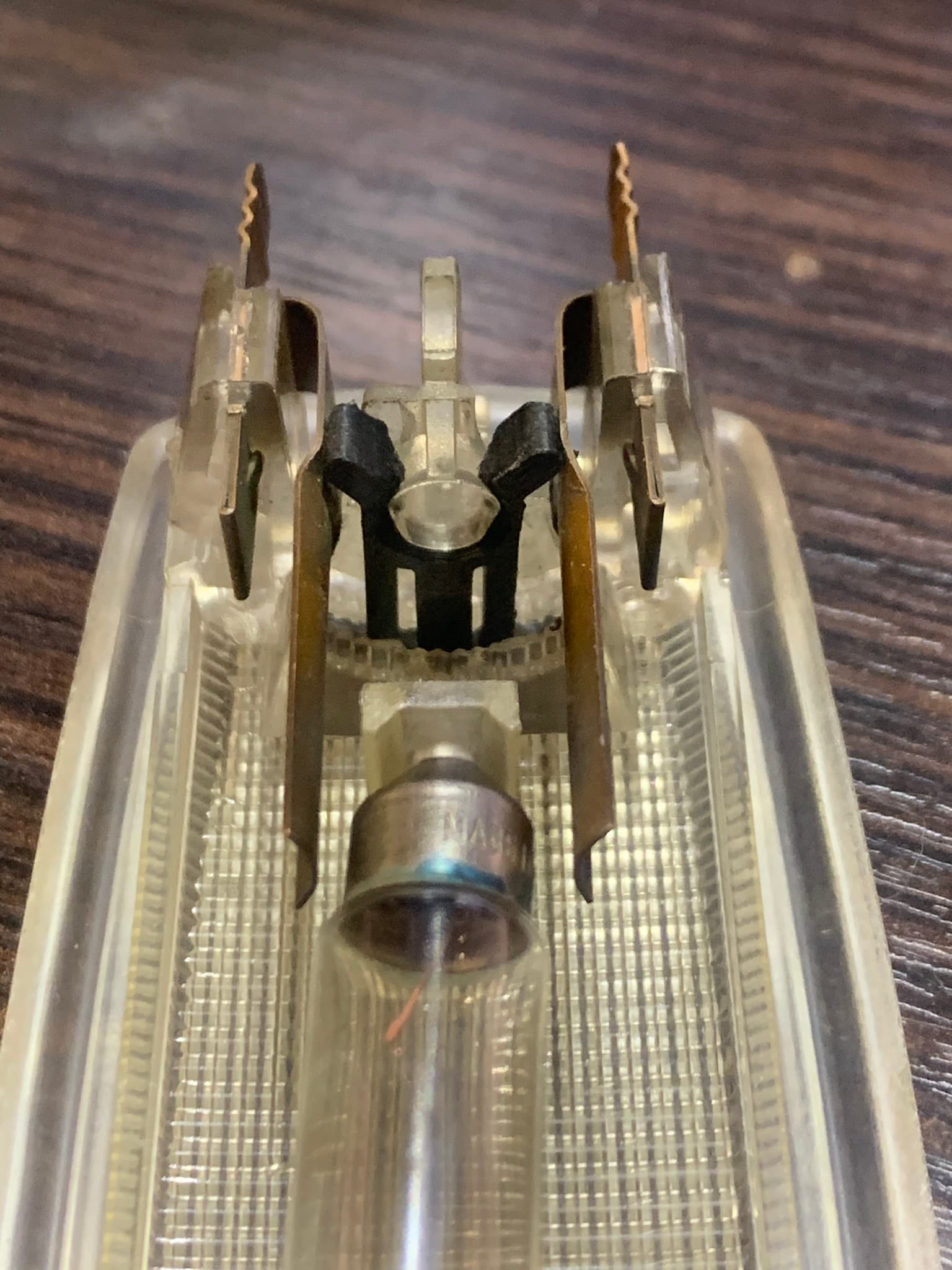

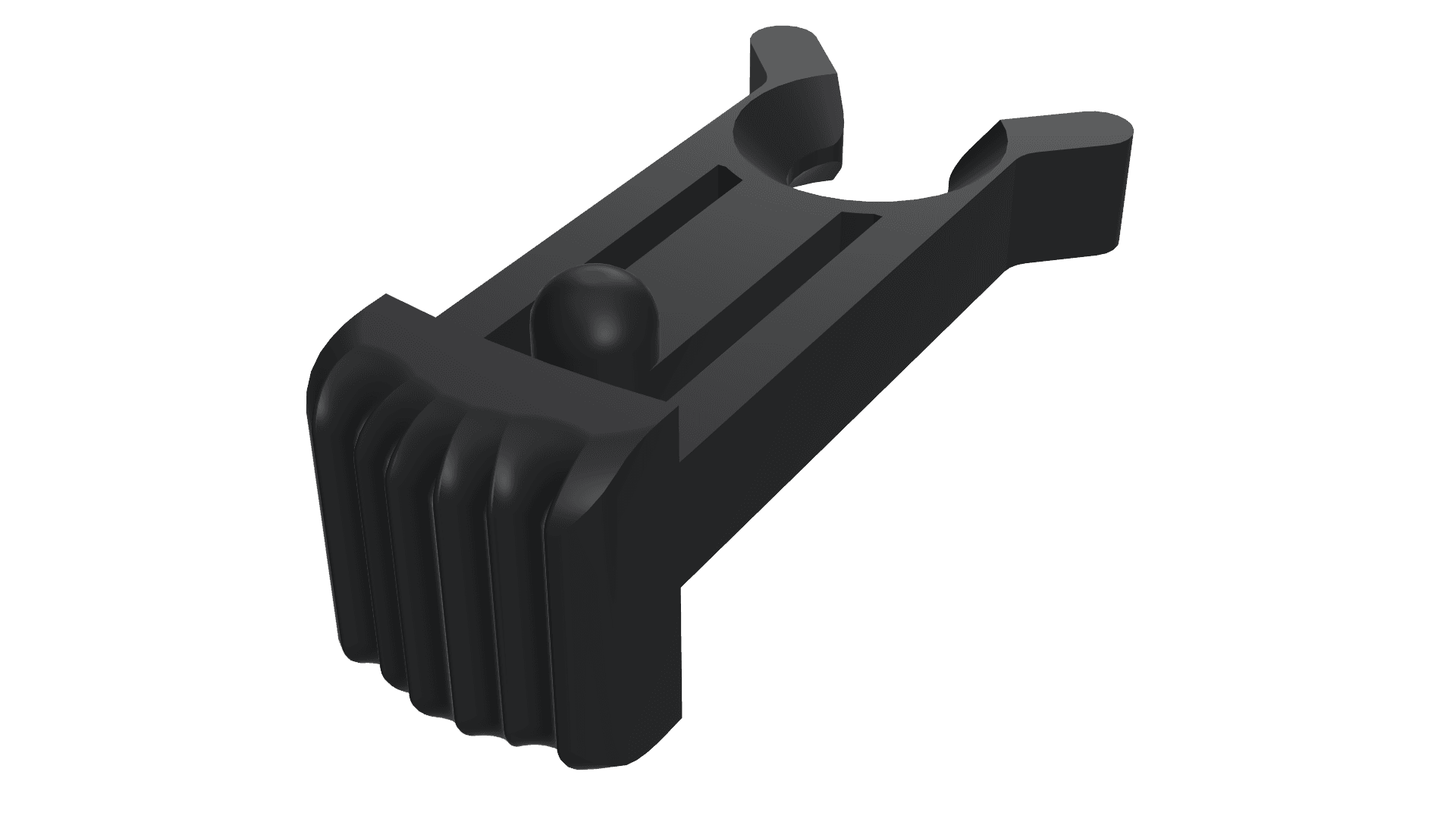

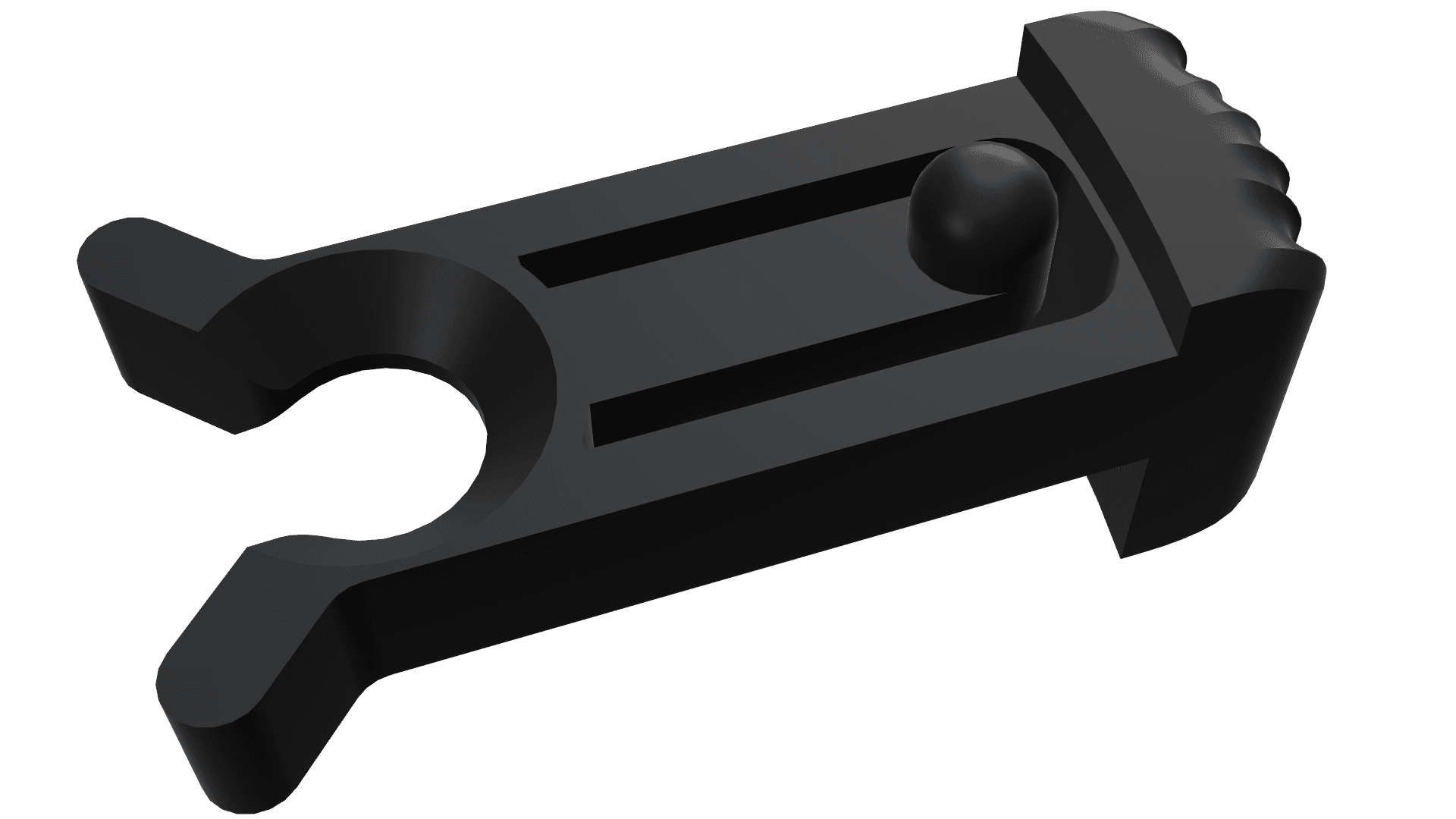

Dimensioned replacement switch knob for the Hella-style interior dome light used in BMW E12, E21 and E30. Physical prints are shown on the lamp. The creator-listed numbers identify complete lamp variants rather than this knob, so no parent-assembly number is submitted.

View original source ↗
