Door-Mirror Wiring Bottom Cover

REPLACES OEM51161937441 · 51161937442 · 51161937443 · 51161937444

ABS · PETG1 FILECC-BYDoors

PART RECORDREF 1107

PART: Door-Mirror Wiring Bottom Cover
OEM: 51161937441, 51161937442, 51161937443, 51161937444
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1107QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

9 PLATES

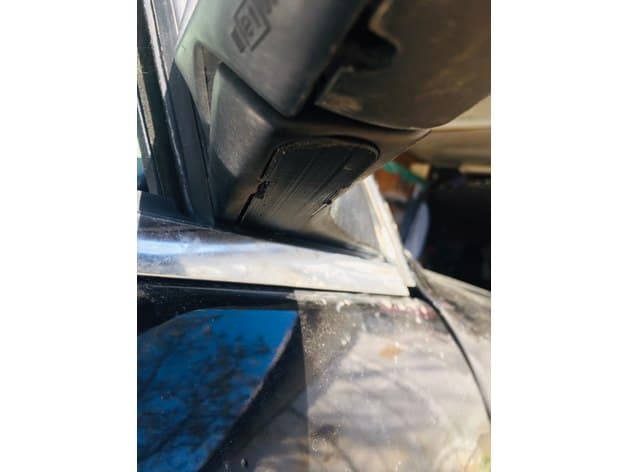

PLATE 01 / 09No caption recorded

Build sheet

MAN-1107

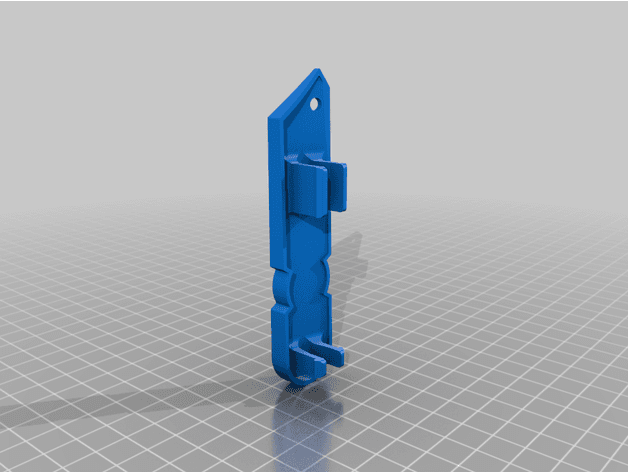

[01]BmwE30_mirrorWiringBottomCover51_16_1_937_441_51_16_1_937_442_v7.stlBmwE30_mirrorWiringBottomCover51_16_1_937_441_51_16_1_937_442_v7.stl.STL
[02]Bounding box101.719 × 23.000 × 16.988 mm
[03]Volume5,569.407 mm³

Field notes

BY DMITRY WITHOUTLASTNAME (KOTYARKO_O)

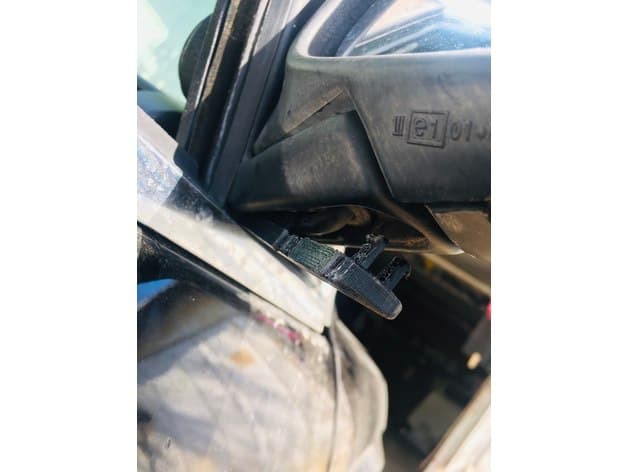

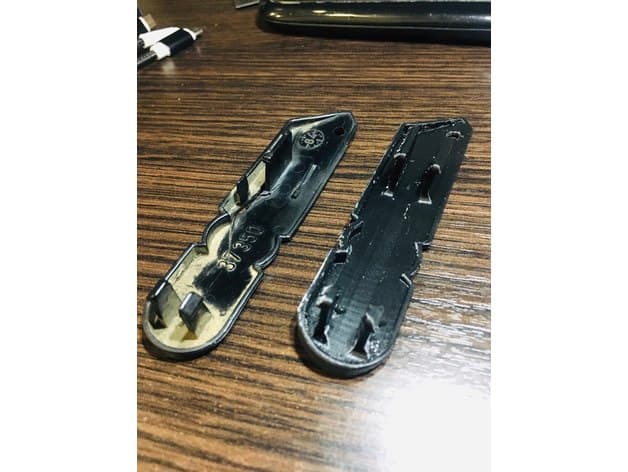

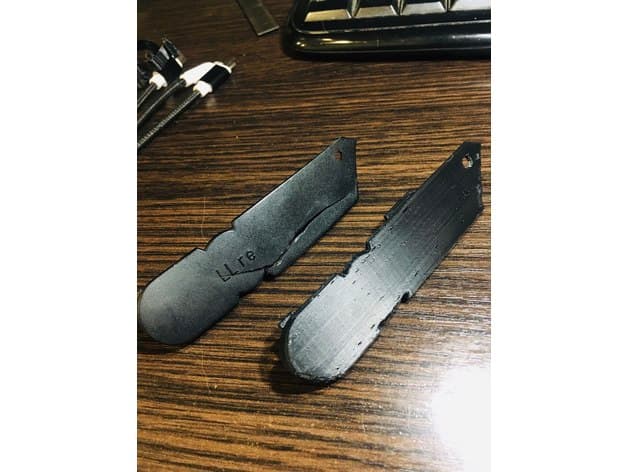

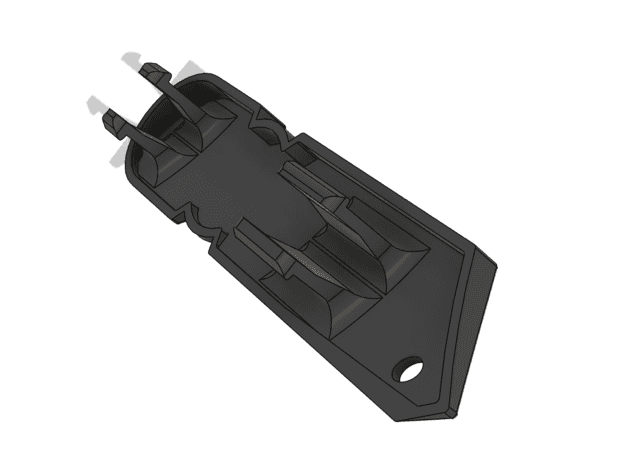

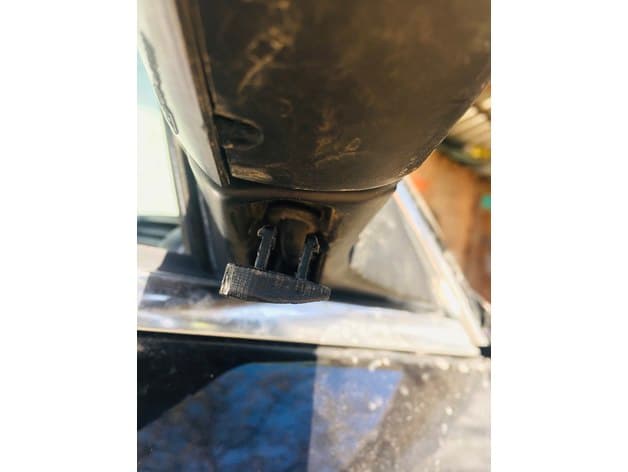

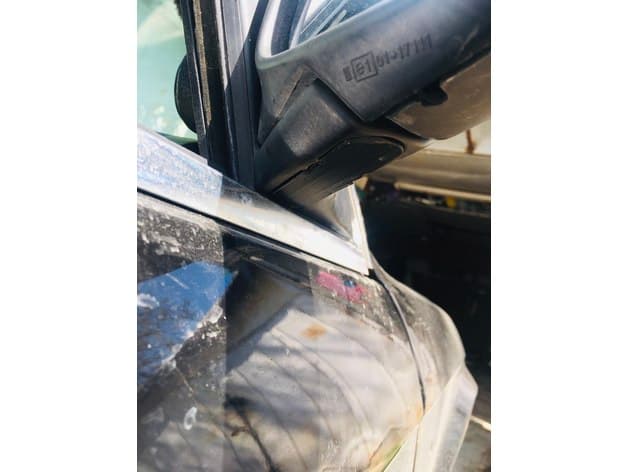

Reinforced replacement lower wiring cover for E30 door mirrors, copied from the original and physically fitted. The supplied geometry is LHD; mirror it for RHD. BMWFans confirms left/right LHD 51161937441/442 and RHD 51161937443/444.

View original source ↗
