Diesel Fuel-Filter Outer Clip

ABS · PETG1 FILECC-BYMechanical

PART RECORDREF 1302

PART: Diesel Fuel-Filter Outer Clip
OEM: —
FITS: 3 Series F30 / F31 / F34 / F80

Loading 3D viewer...

PART ID · BIMMER-3D / 1302QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

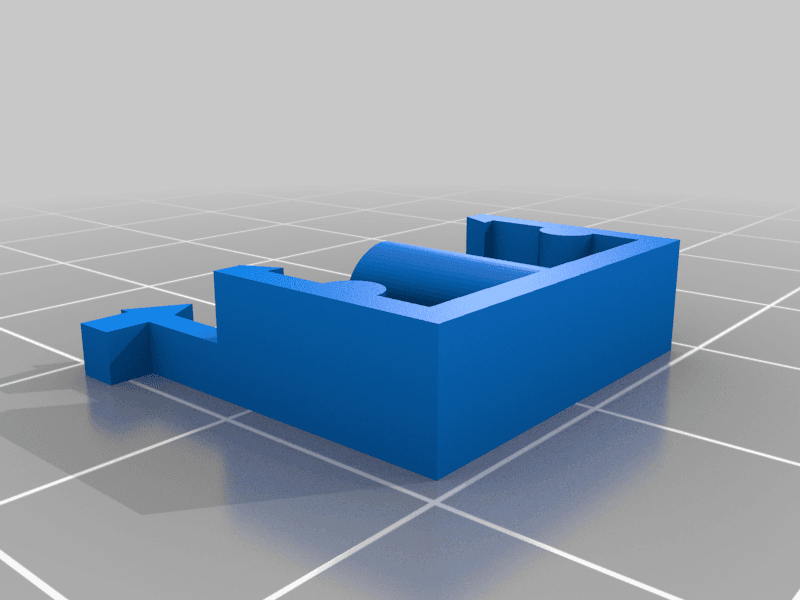

PLATE 01 / 03No caption recorded

Build sheet

MAN-1302

[01]BmwFuelClip.stlBmwFuelClip.stl.STL
[02]Bounding box21.500 × 18.109 × 5.200 mm
[03]Volume392.161 mm³

Field notes

BY ADRIANO SALVATORE (ADRIANO12356)

Replacement outer fuel-filter clip designed for a 2015 F30 328d and reported by the creator to have remained installed for more than a year. Use the specified material, inspect layer adhesion and fit, and stop if the part interferes with safe service or pedal operation.

View original source ↗
