Coupe Dome-Light Mounting Bracket

REPLACES OEM54121884483

ABS · PETG1 FILECC-BYHeadlining

PART RECORDREF 1101

PART: Coupe Dome-Light Mounting Bracket
OEM: 54121884483
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1101QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1101

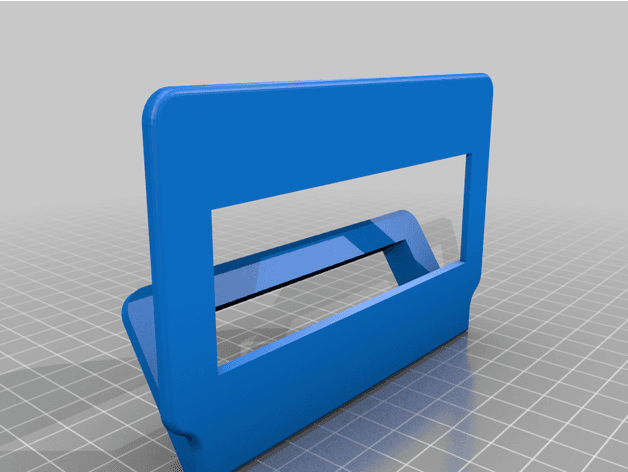

[01]dome_light_v2.stldome_light_v2.stl.STL
[02]Bounding box124.000 × 80.165 × 28.453 mm
[03]Volume29,150.425 mm³

Field notes

BY CHRIS SMERGS (A32GUY)

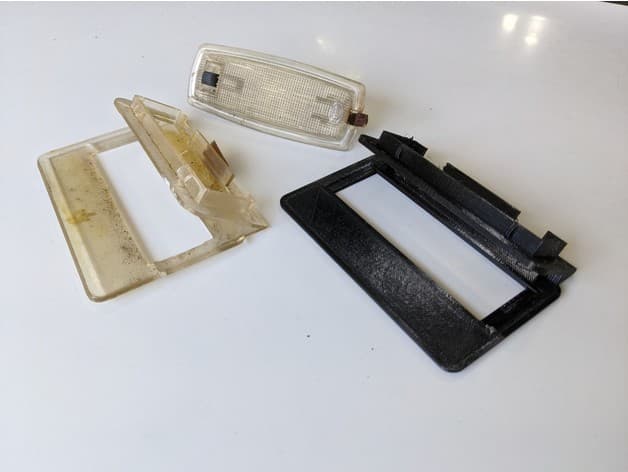

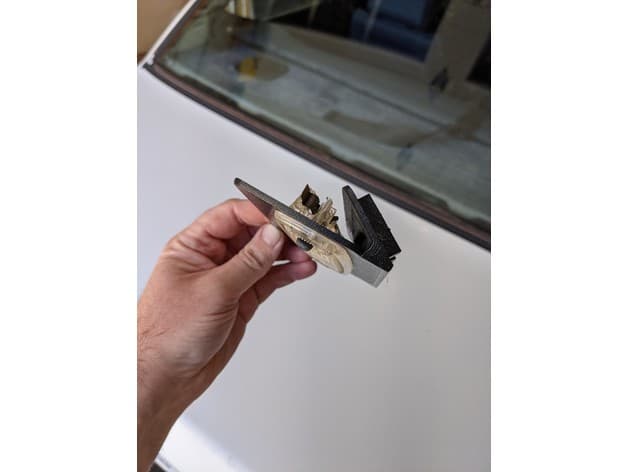

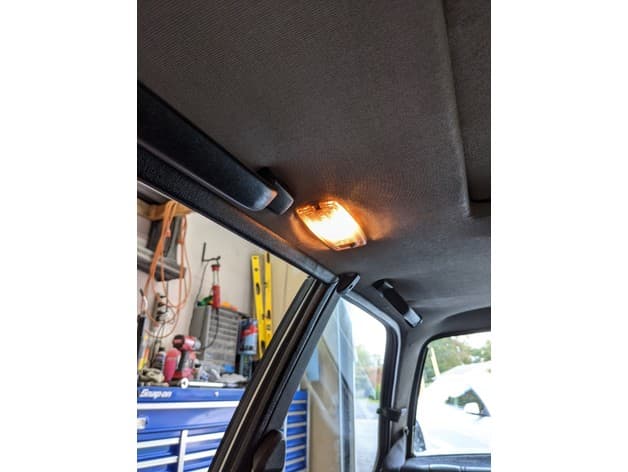

Replacement headliner bracket supporting the dome light in an E30 coupe, physically compared with a failed original and installed. It is not claimed for convertible bodies; sedan fitment was not independently established. BMWFans confirms bracket 54121884483.

View original source ↗
