PART №1121
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
Convertible Top-Lock Centering Pivot
REPLACES OEM54311971255
ABS · Nylon1 FILECC-BY-SAHeadlining
- PART
- Convertible Top-Lock Centering Pivot
- OEM
- 54311971255
- FITS
- 3 Series E30
Loading 3D viewer...
PART ID · BIMMER-3D / 1121QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
1 PLATE

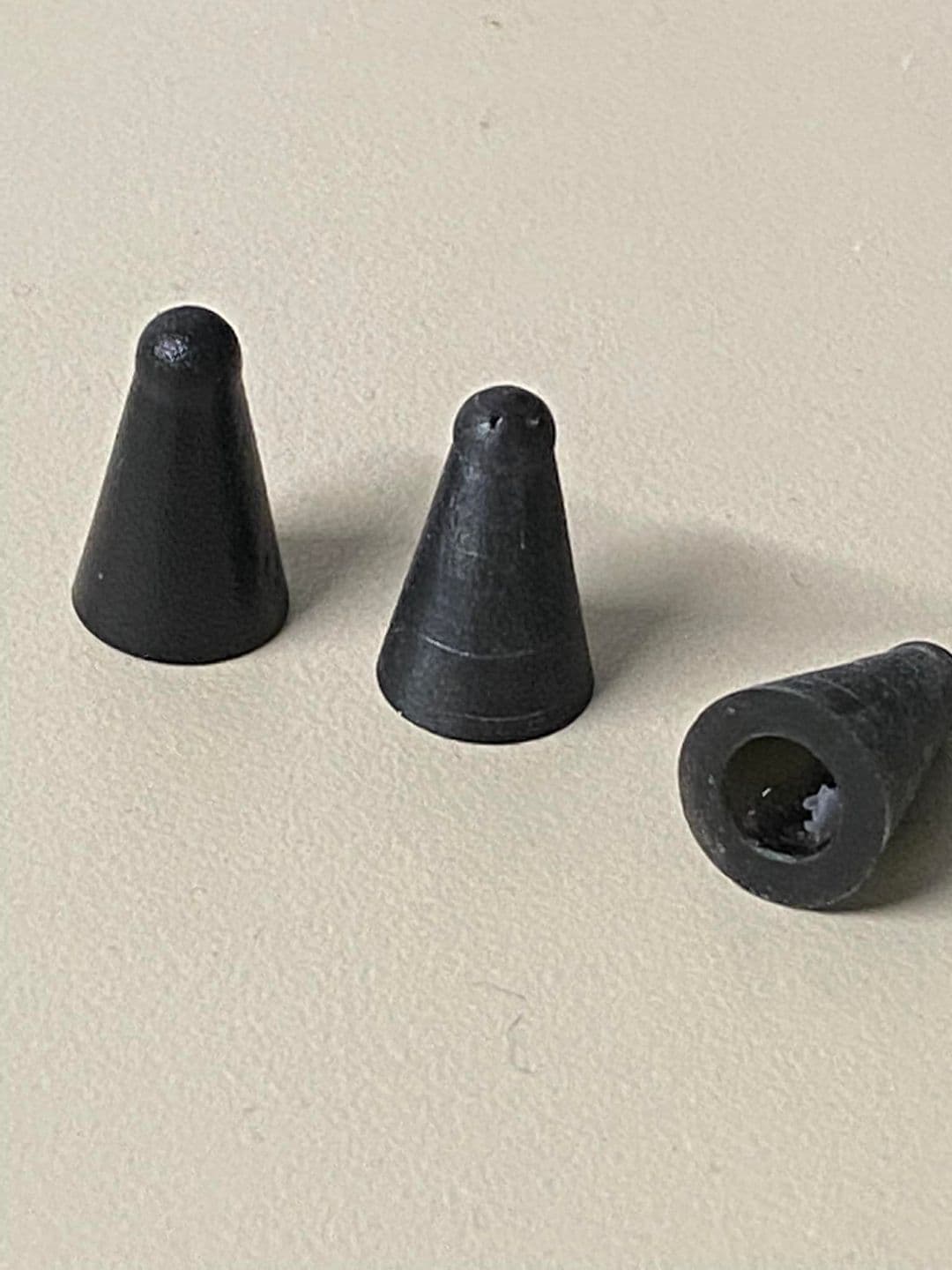

PLATE 01 / 01No caption recorded
Build sheet
MAN-1121- [01]convertible-pivot.stlconvertible-pivot.stl.STL
- [02]Bounding box16.850 × 10.520 × 10.520 mm
- [03]Volume511.628 mm³
Field notes
BY ALEXResin-printable replacement pivot for the E30 convertible top-lock centering mechanism, physically compared with the original. BMWFans identifies the component as covering for centering bolt 54311971255. Verify pivot movement and roof latching before driving.
