Console-Storage Phone-Mount Base

ABS · PETG4 FILESCC-BY-NCDashboard

PART RECORDREF 1065

PART: Console-Storage Phone-Mount Base
OEM: —
FITS: 2 Series F45 / F46 Active / Gran Tourer

Loading 3D viewer...

PART ID · BIMMER-3D / 1065QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

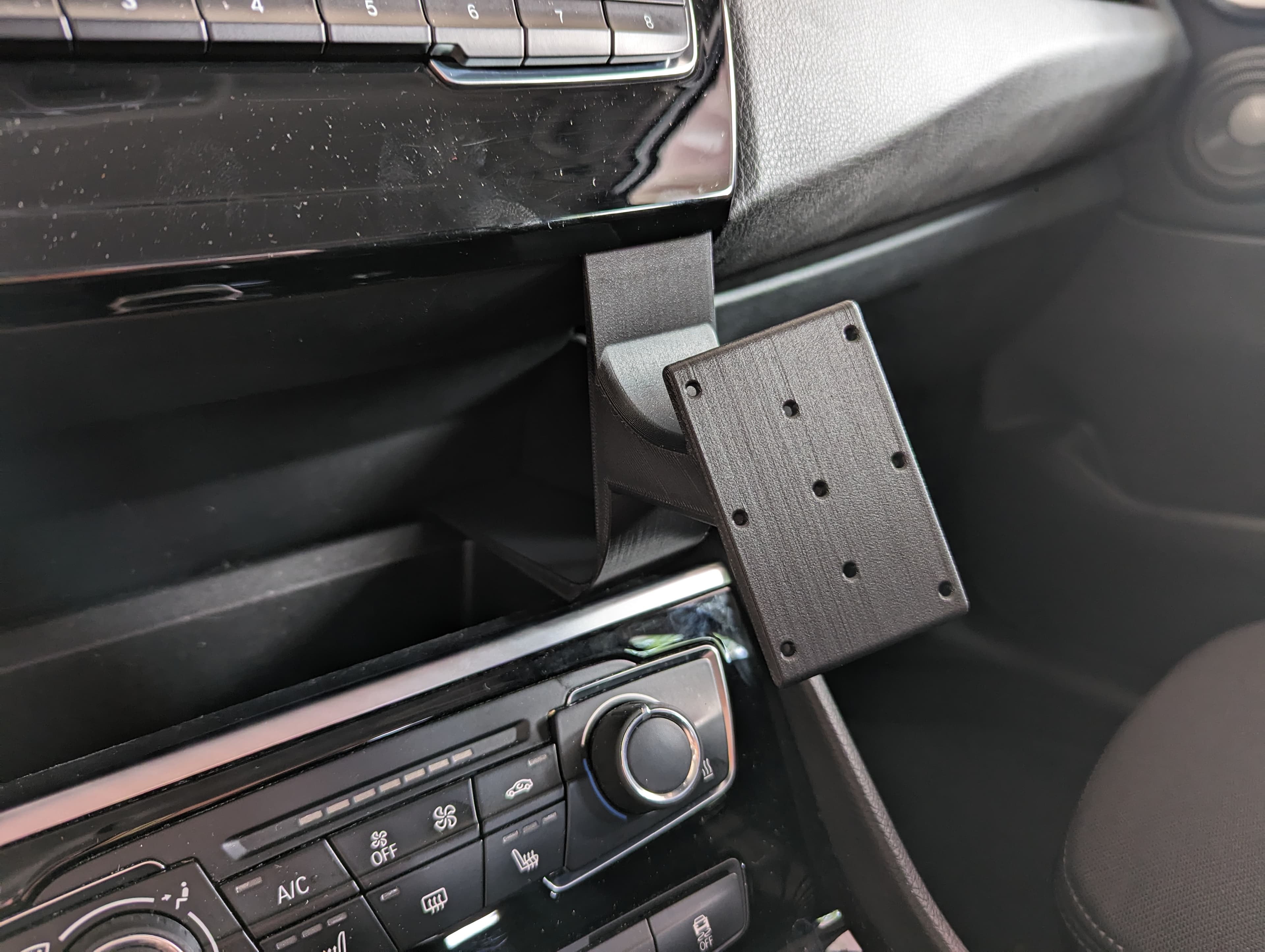

PLATE 01 / 02No caption recorded

Build sheet

MAN-1065

[01]BMW-F45-MobileMount.stlBMW-F45-MobileMount.stl.STL
[02]BMW-F45-MobileMount_v2.stlBMW-F45-MobileMount_v2.stl.STL
[03]BMW-F45-MobileMount_v2-MounPlateRotatable_Counterbore.stlBMW-F45-MobileMount_v2-MounPlateRotatable_Counterbore.stl.STL
[04]BMW-F45-MobileMount_v2-MounPlateRotatable_Countersink.stlBMW-F45-MobileMount_v2-MounPlateRotatable_Countersink.stl.STL
[05]Bounding box194.635 × 115.727 × 40.000 mm
[06]Volume94,419.543 mm³

Field notes

BY FAUST7TH

Four support-free mounting-base variants that clip into the small center-console storage pocket of BMW F45/F46 models. Includes fixed and rotating plates; rotating versions use an M5 nut and 12–20 mm bolt. Use PETG, ASA, or ABS rather than ordinary PLA.

View original source ↗
