Compact Centre-Console Cupholder and Reducer

ABS · PETGMULTI-PART2 FILESCC-BY-SAInterior

PART RECORDREF 1164

PART: Compact Centre-Console Cupholder and Reducer
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1164QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

11 PLATES

PLATE 01 / 11No caption recorded

Build sheet

MAN-1164

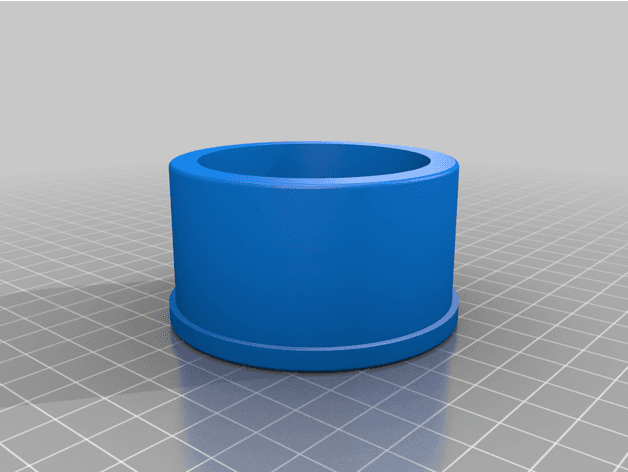

[01]54-67mm_adapter.stl54-67mm_adapter.stl.STL

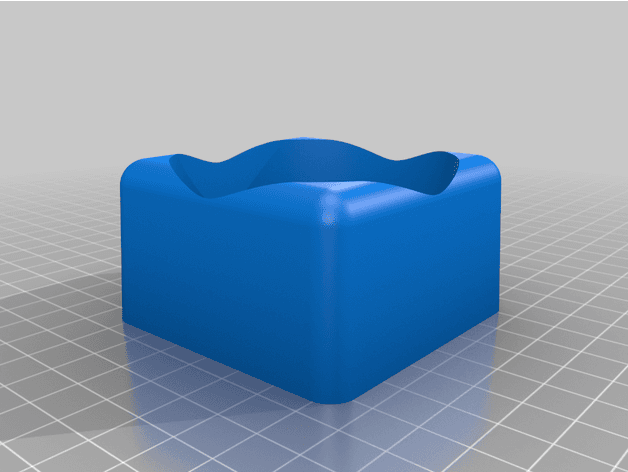

[02]67mm_cupholder.stl67mm_cupholder.stl.STL
[03]Bounding box77.000 × 70.000 × 70.000 mm
[04]Volume90,551.589 mm³

Field notes

BY FABIAN KNESE (CYBERLEOPARD)

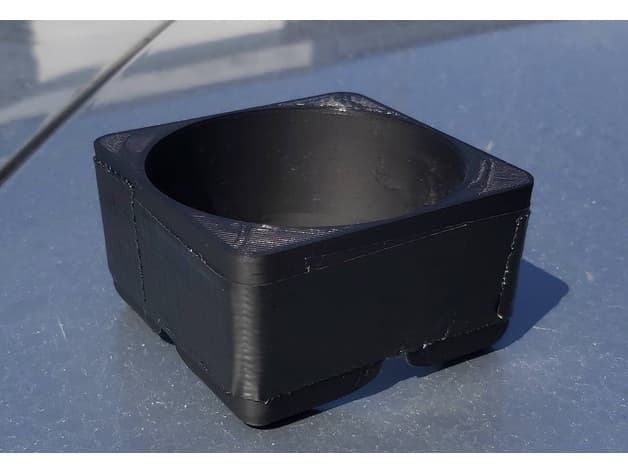

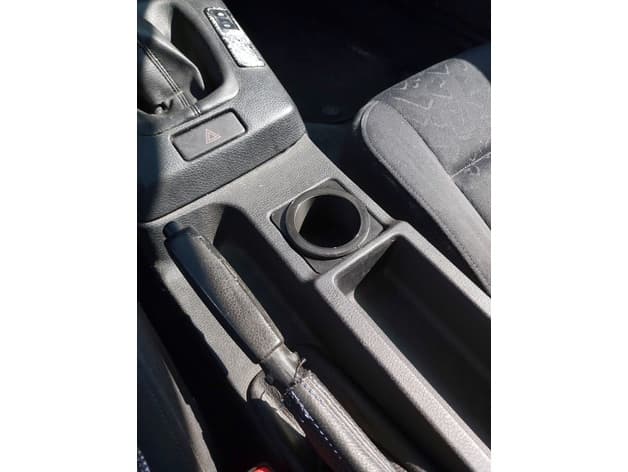

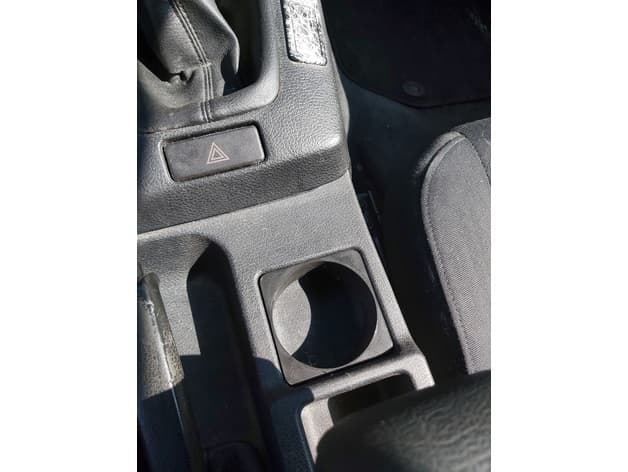

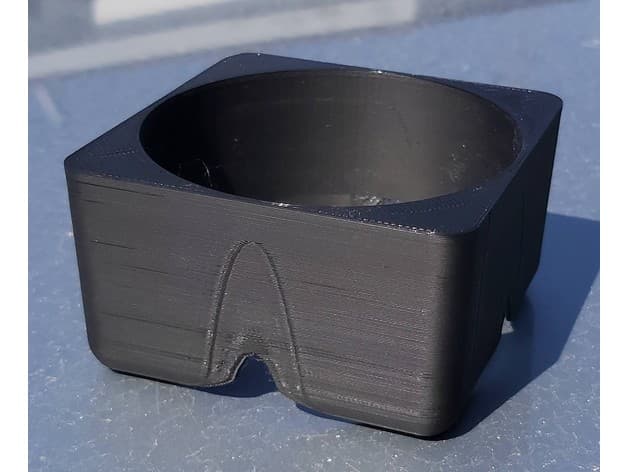

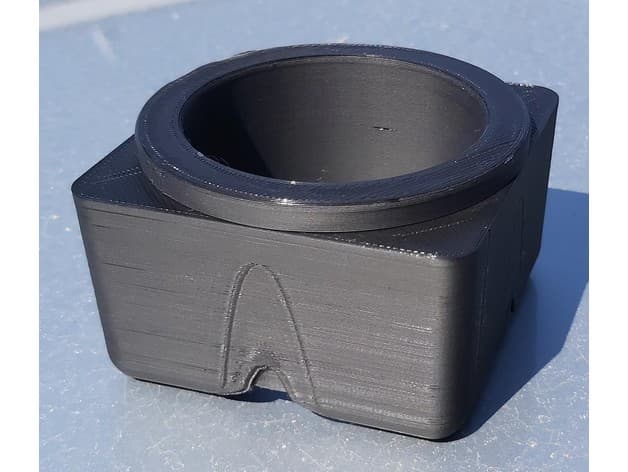

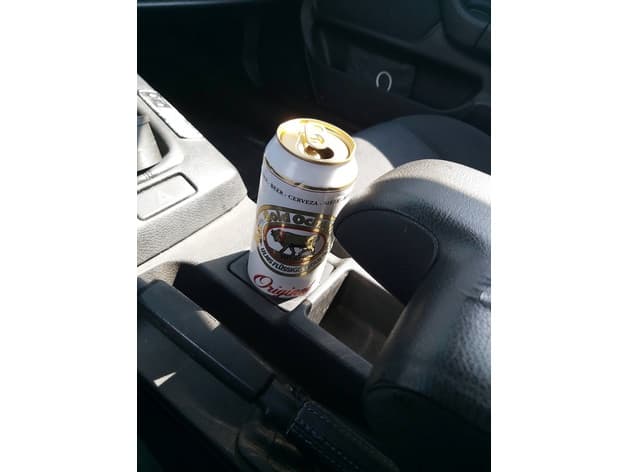

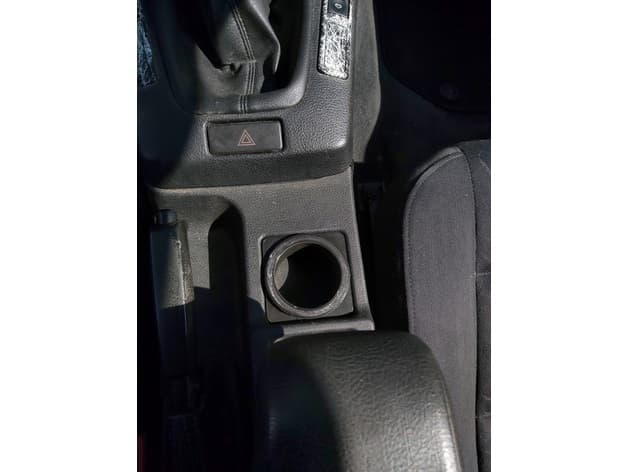

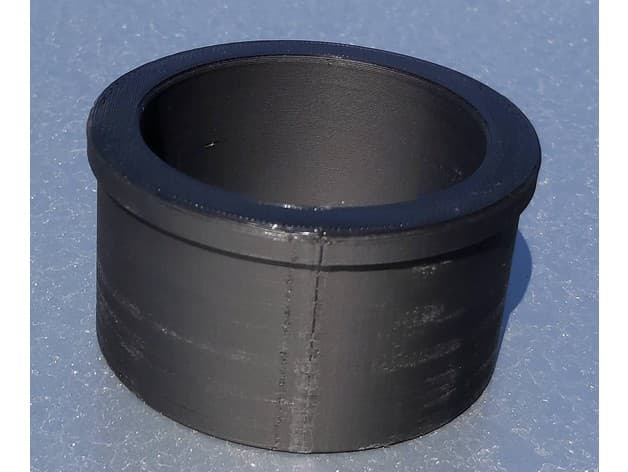

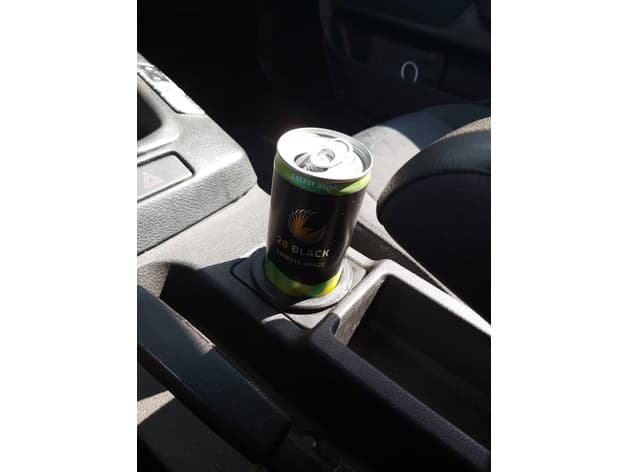

67 mm cupholder and 54 mm reducer for the square opening ahead of the armrest in an E36 Compact. The source shows both sizes physically installed with 250 ml and 500 ml cans. Verify handbrake, shifter and armrest clearance before use.

View original source ↗
