Centre-Console Trim Spacer

REPLACES OEM51161943121

ABS · PETG1 FILE1 DOWNLOADCC-BY-NC-SAConsole & storage

PART RECORDREF 1136

PART: Centre-Console Trim Spacer
OEM: 51161943121
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1136QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

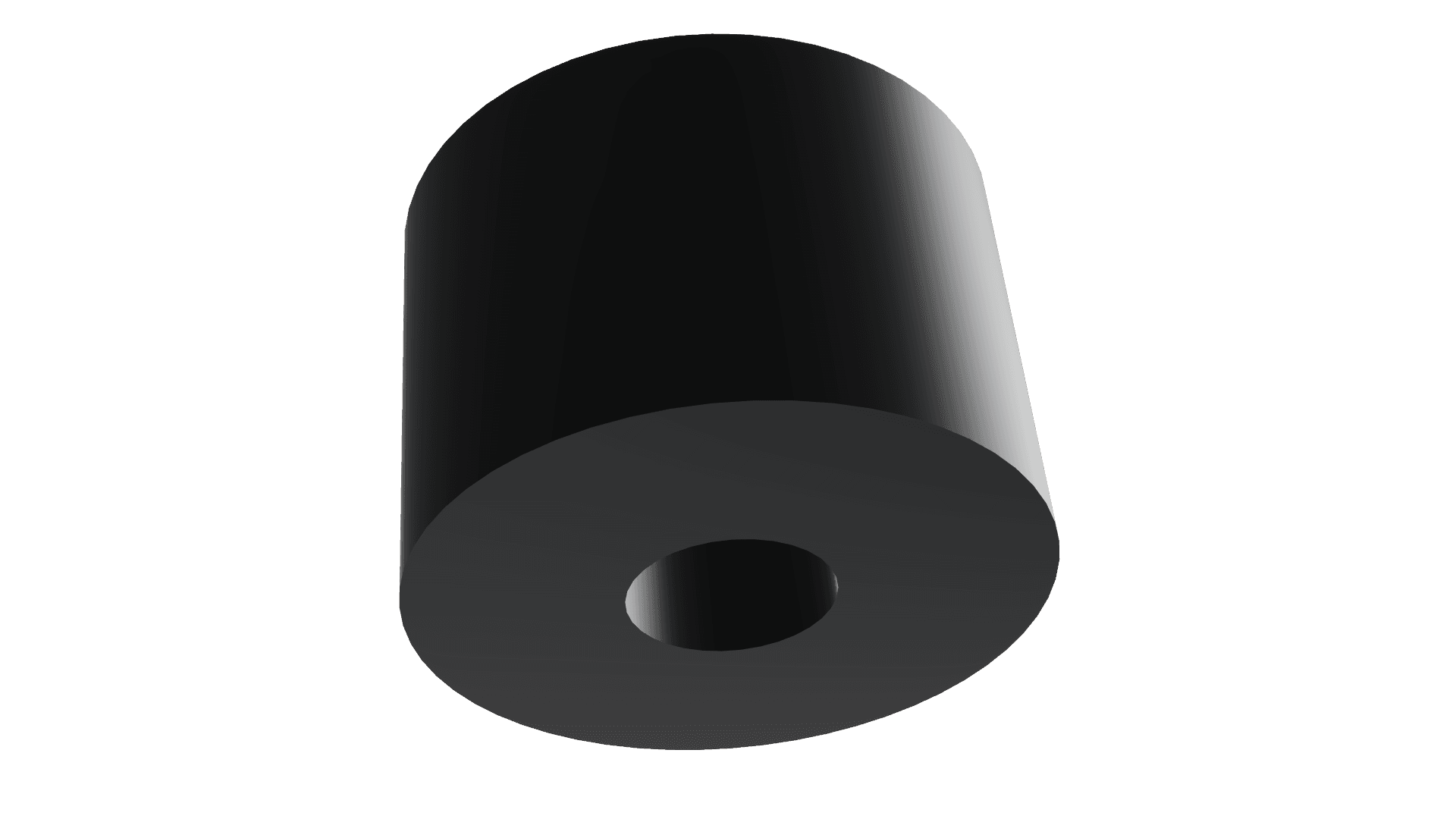

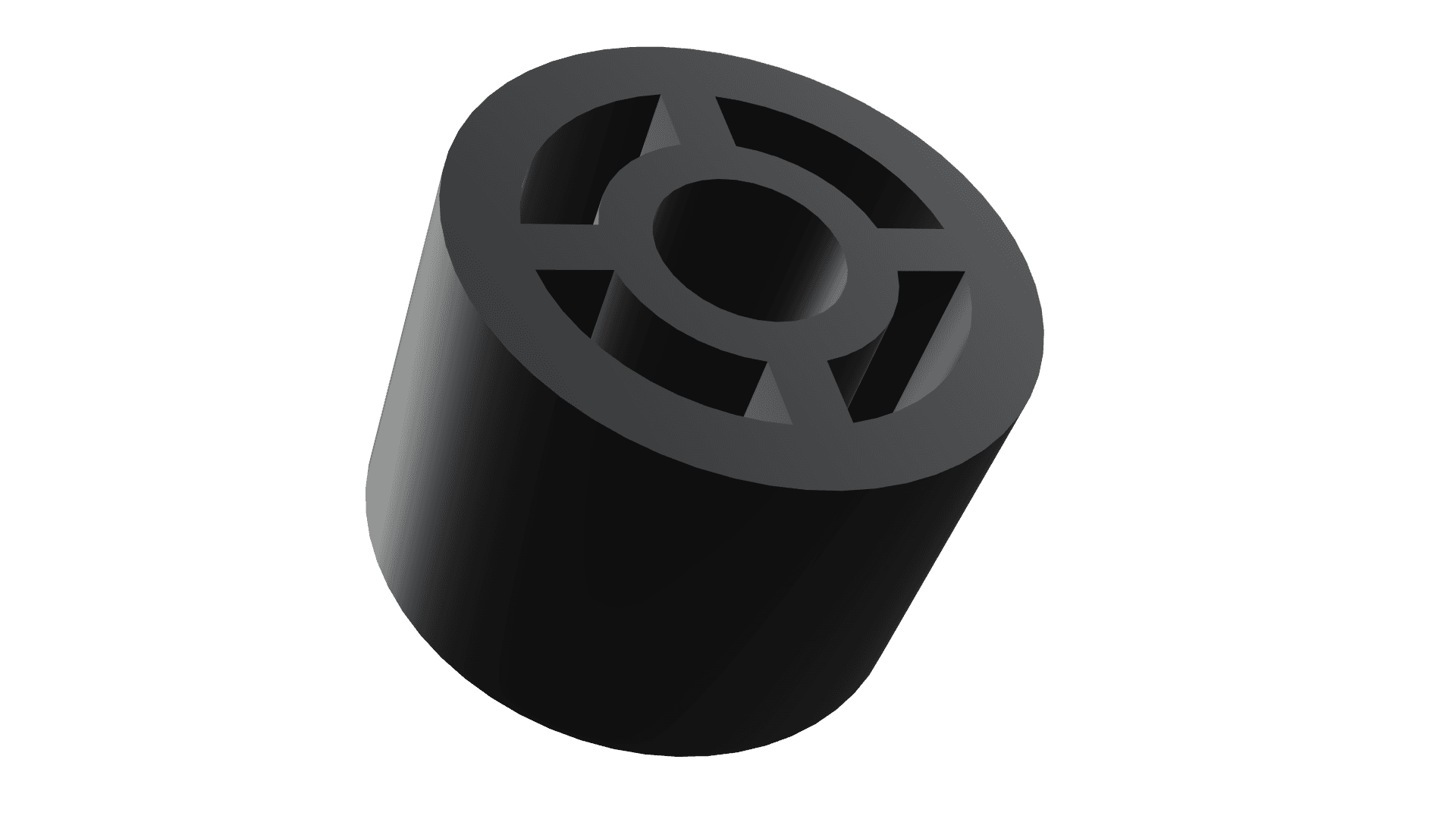

Centre-Console Trim Spacer — image 1 of 7

PLATE 01 / 07No caption recorded

Build sheet

MAN-1136

[01]bmwe30_centerconsolelower_spacer51-16-1-943-121-v1.stepbmwe30_centerconsolelower_spacer51-16-1-943-121-v1.step.STL
[02]Bounding box20.000 × 20.000 × 14.000 mm
[03]Volume3,024.441 mm³

Field notes

BY KOTYARKO_O

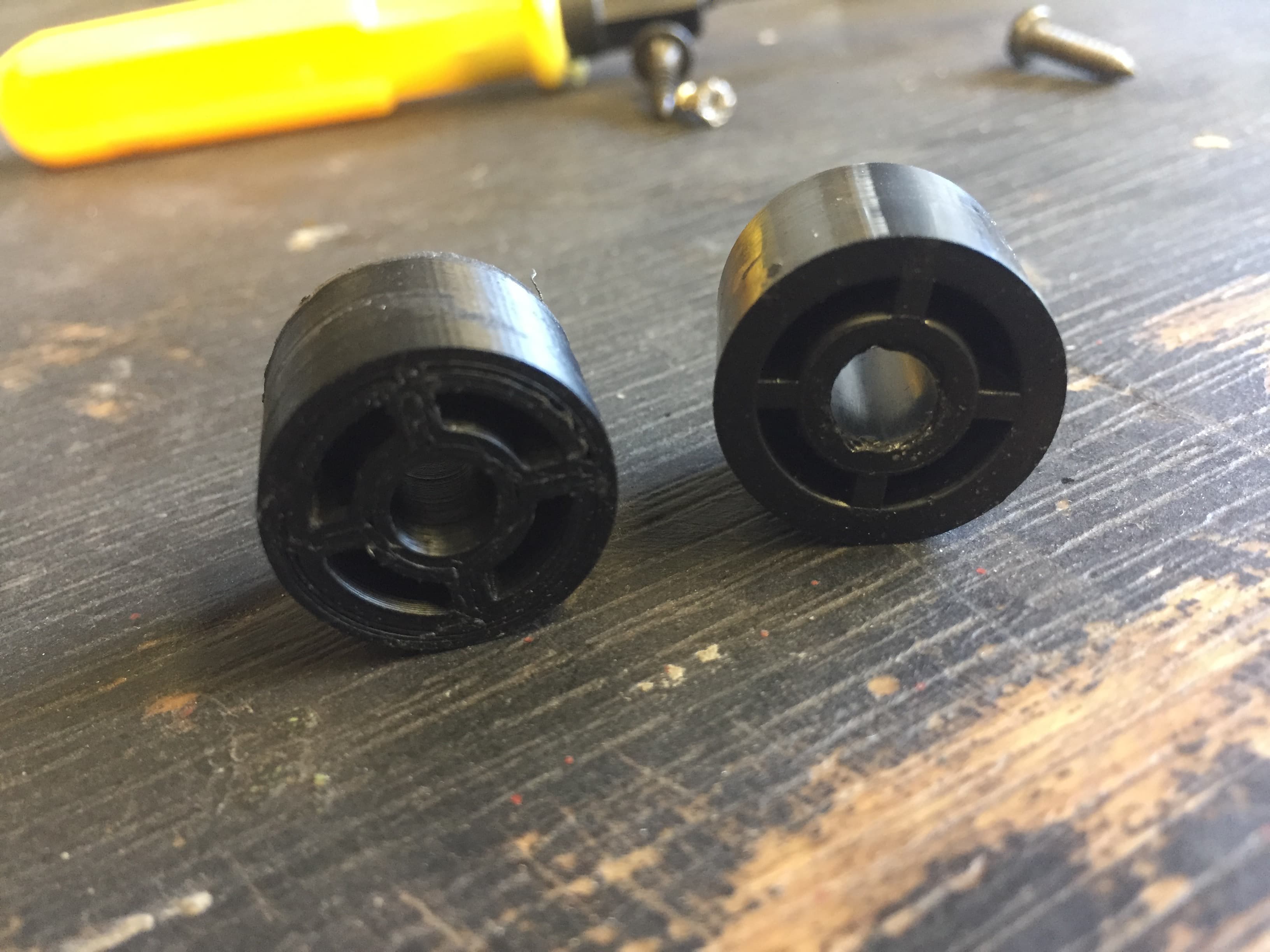

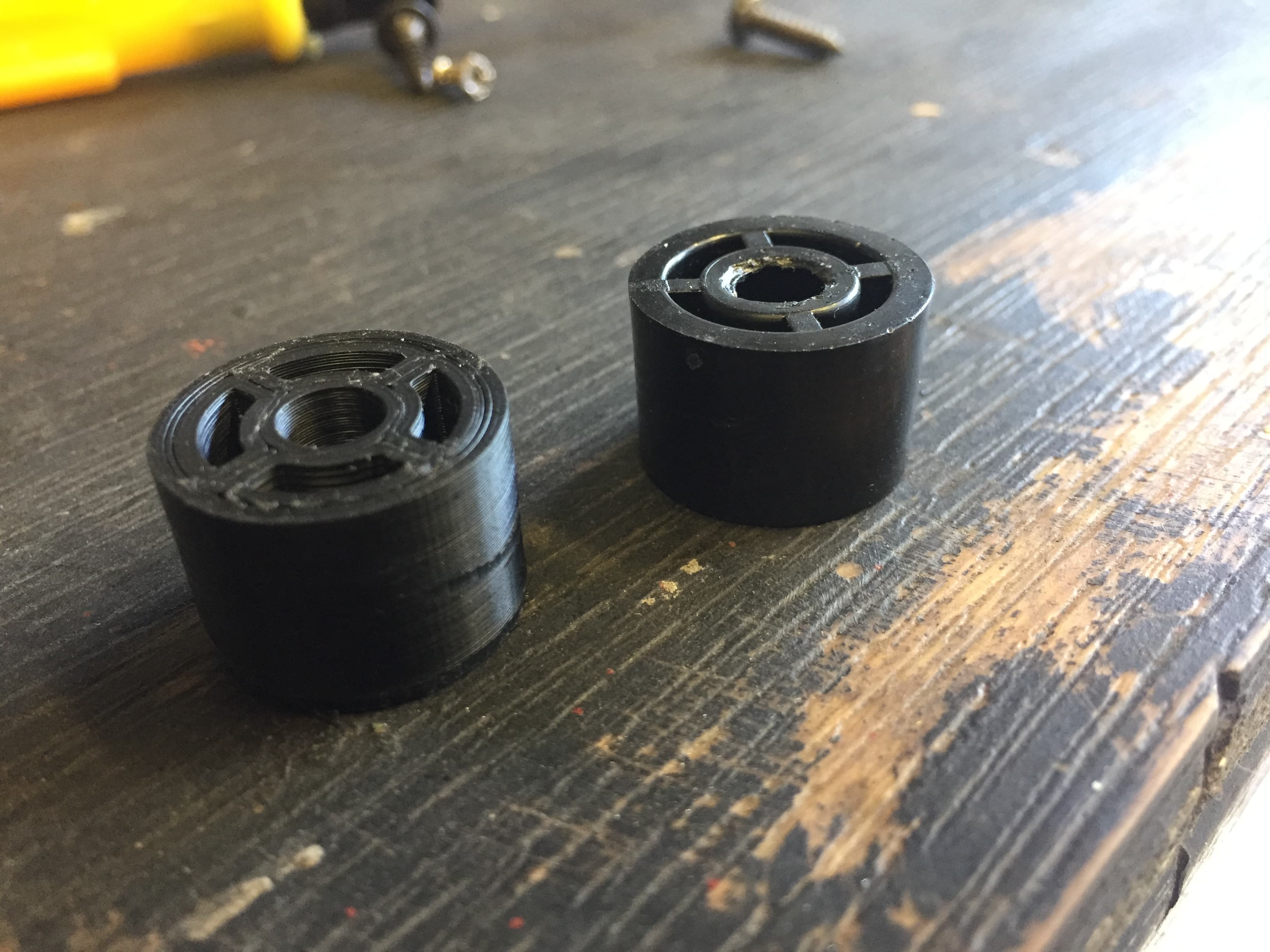

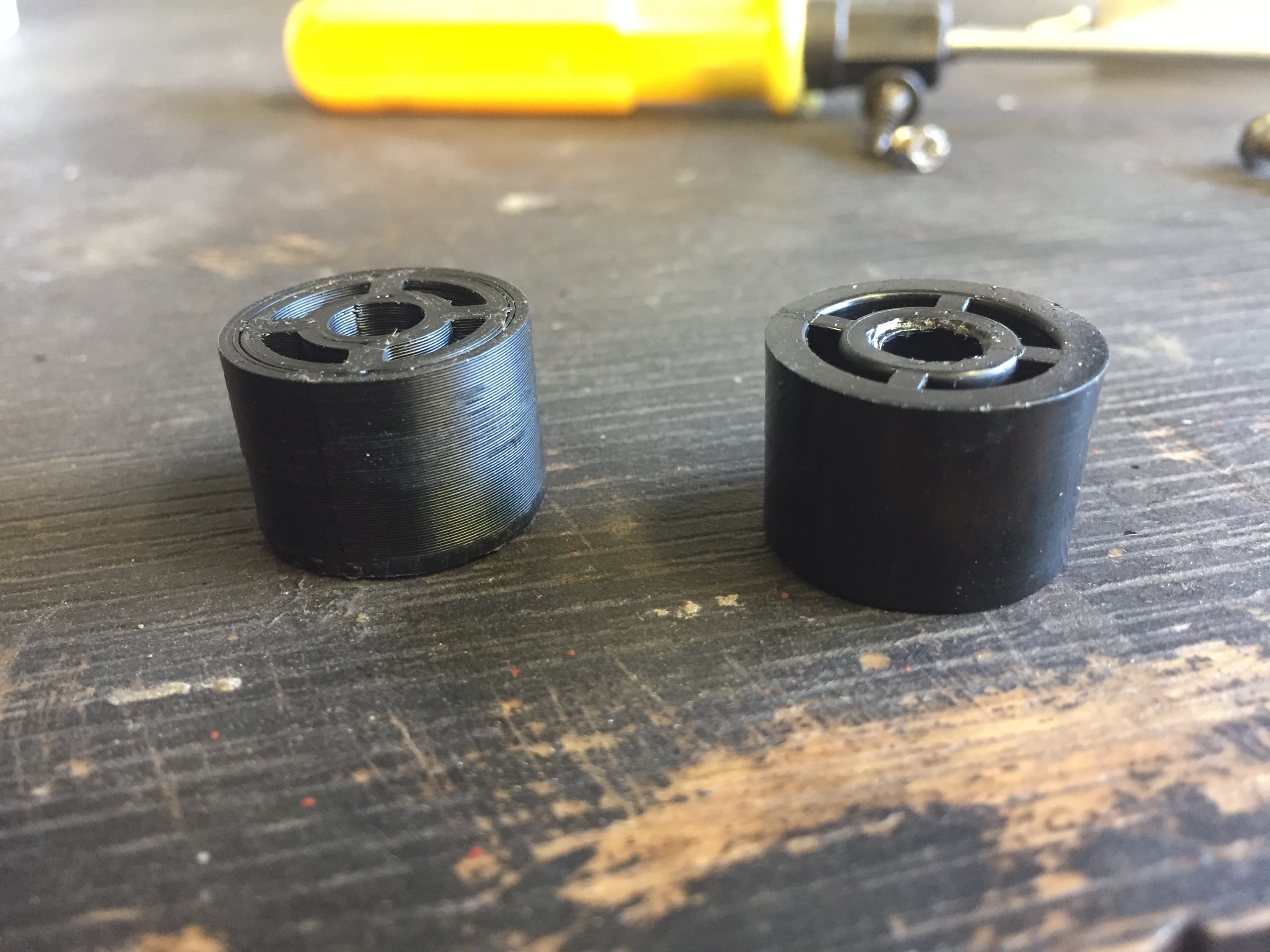

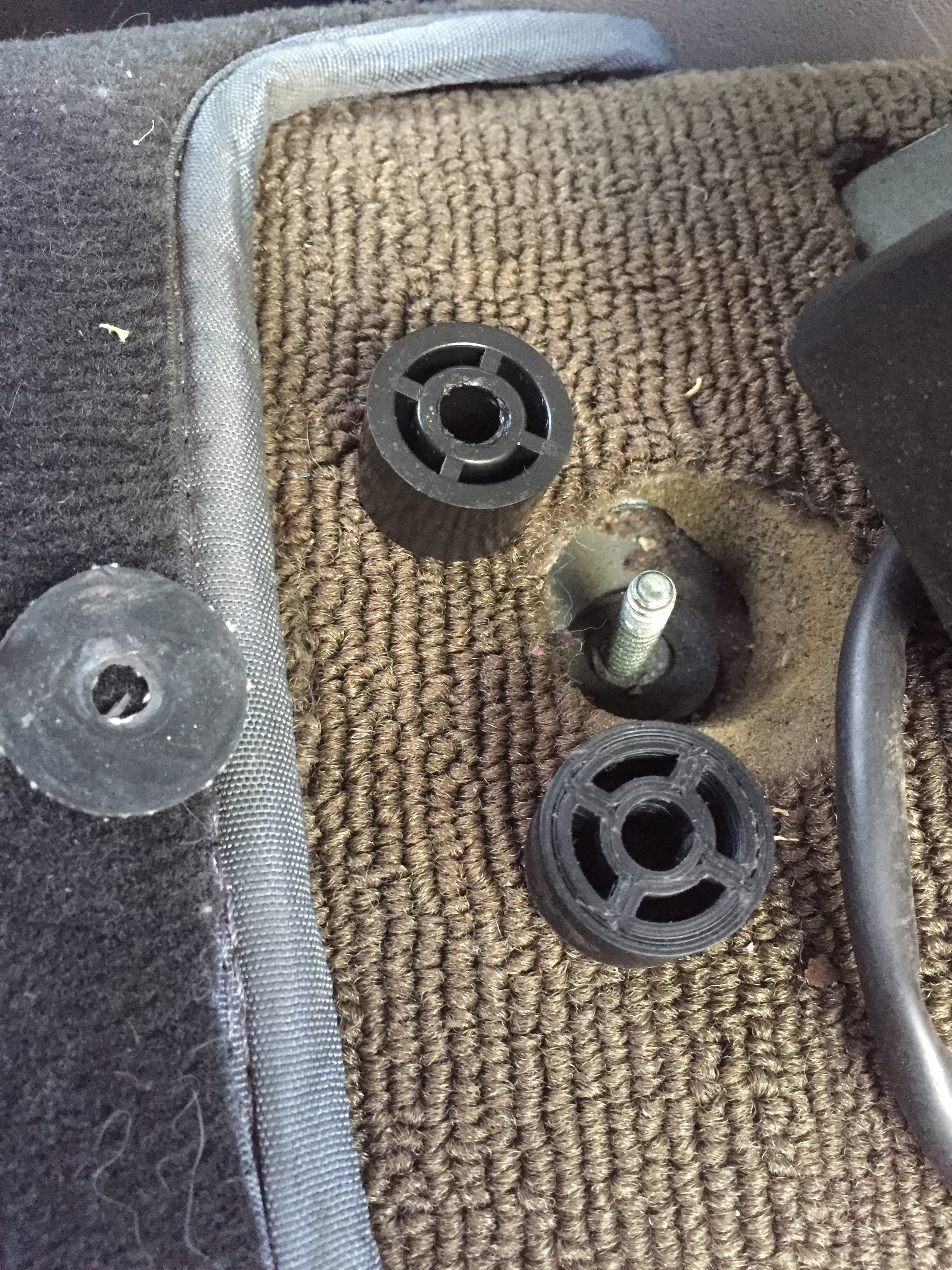

Replacement E30 centre-console spacer that prevents lower trim deformation, copied from the original and physically installed. BMWFans confirms spacer 51161943121.

View original source ↗
