Boot Toolkit Reversible Screwdriver Handle

ABS · PETG1 FILECC-BYMechanical
PART RECORDREF 1268
PART
Boot Toolkit Reversible Screwdriver Handle
OEM
FITS
3 Series E90 / E91 / E92 / E93
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1268QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
8 PLATES
Plate 1 of 8
PLATE 01 / 08No caption recorded
Build sheet
MAN-1268
  • [01]BMW_Toolkit_Screwdriver_v4.stl.STL
  • [02]Bounding box88.000 × 20.000 × 20.000 mm
  • [03]Volume21,451.467 mm³
Field notes
BY NICHOLAS KONEN (NORTHPRINT)

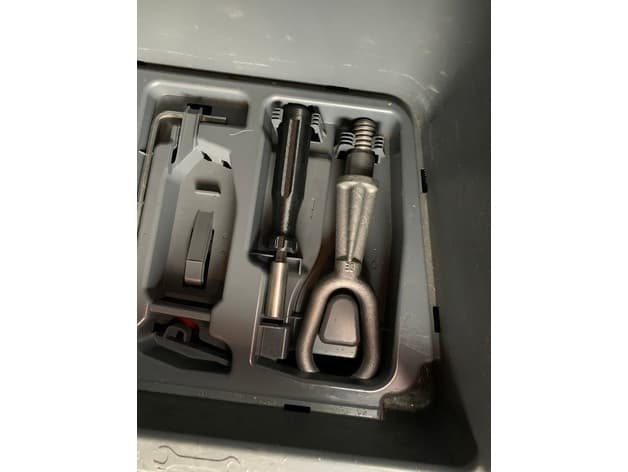

BMW Toolkit screwdriver. I designed this for E90 toolkit, as they stopped supplying these in the trunk after E46's. I spent ~$10 for a Phillips/flathead screwdriver from an online OEM supplier. This vehicle uses solely Torx fasteners, so a Phillips/flathead does me no good. This design allows you to use an off the shelf 2" long 1/4" bit extender. Then you can add whatever bit you'd like. Such as any size Torx bit, any size Phillips, or a flathead. It doesn't quite fit in the toolkit, some trimming would be required as the extender is thicker than the stock neck. However it will fit nicely, and the trimming is easy. The extender is a friction fit, but using an 0.2[mm] nozzle, it is TIGHT. It is also worth noting that this screwdriver has a 10mm box wrench on the bottom, and an 8mm box wrench on the top, but you have to remove the extender to use that one. Replaces BMW PN 71111179629 Shoul Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.
