Watertight-Connector Casting Molds

ABS · NylonMULTI-PART6 FILESCC-BY-NCElectrical

PART RECORDREF 1099

PART: Watertight-Connector Casting Molds
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1099QTY 6 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1099

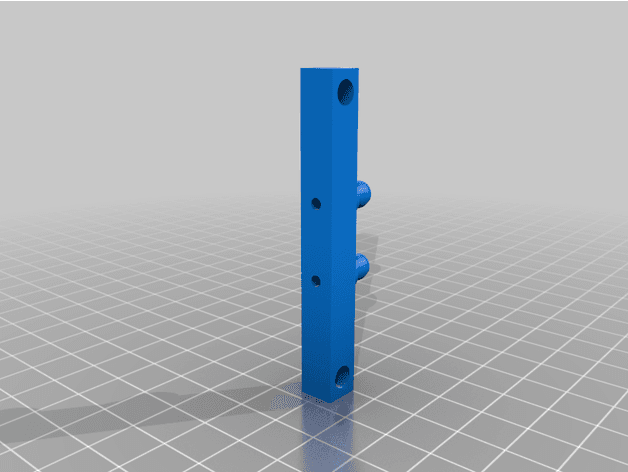

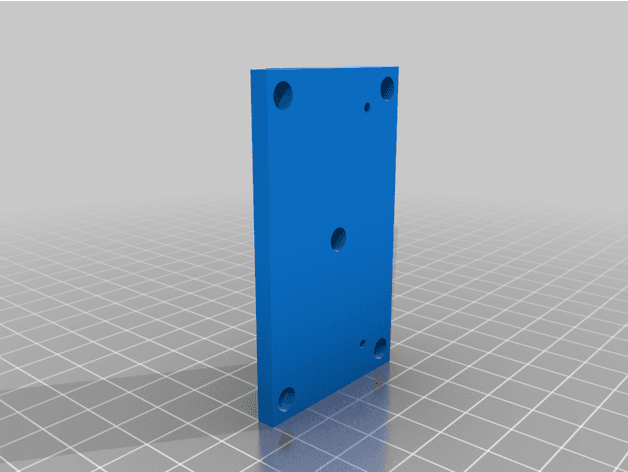

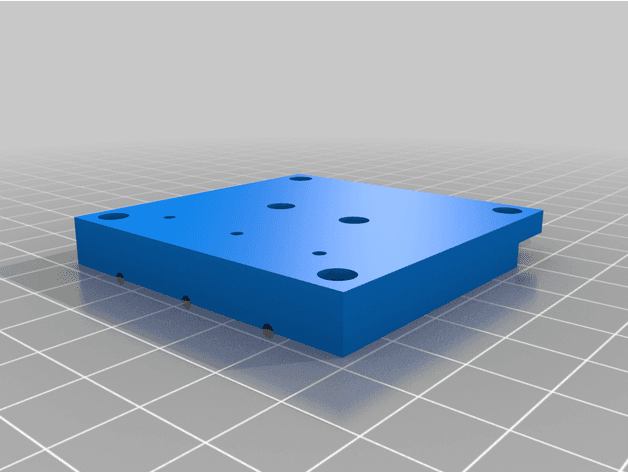

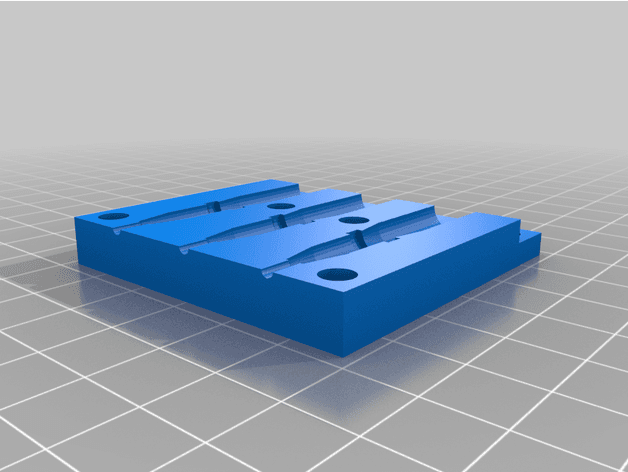

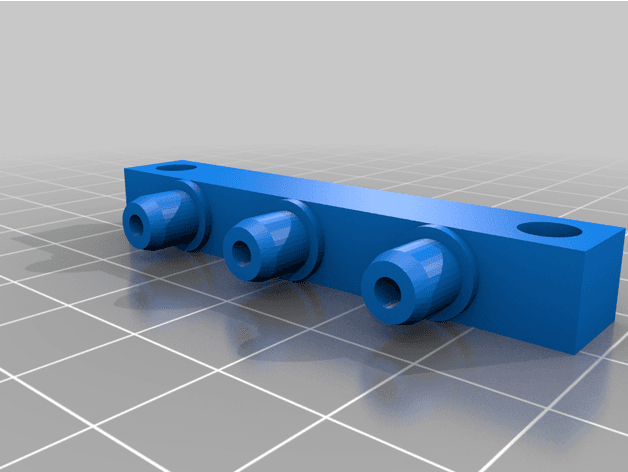

[01]bottom_90deg.stlbottom_90deg.stl.STL
[02]bottom_straight.stlbottom_straight.stl.STL
[03]front_90deg.stlfront_90deg.stl.STL
[04]front_straight.stlfront_straight.stl.STL
[05]top_90deg.stltop_90deg.stl.STL
[06]top_straight.stltop_straight.stl.STL
[07]Bounding box221.000 × 68.000 × 8.000 mm
[08]Volume81,828.451 mm³

Field notes

BY PETER JASTRZEBSKI (KONFUSEDPETE)

Straight and 90-degree reusable molds for rebuilding disintegrated overmolded BMW E3x electrical terminals with hot glue or a suitable insulating compound. The source includes a repair write-up; preserve terminal alignment and verify insulation and water resistance before connection.
