Automatic Gear-Indicator Bezel

ABS · PETG1 FILEPublic DomainInterior
PART RECORDREF 1449
PART
Automatic Gear-Indicator Bezel
OEM
FITS
02 Series Type 114 / E10
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1449QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1449
  • [01]BMW Schaltpanel V3.stl.STL
  • [02]Bounding box111.000 × 17.500 × 1.000 mm
  • [03]Volume1,736.593 mm³
Field notes
BY J.FED_RR

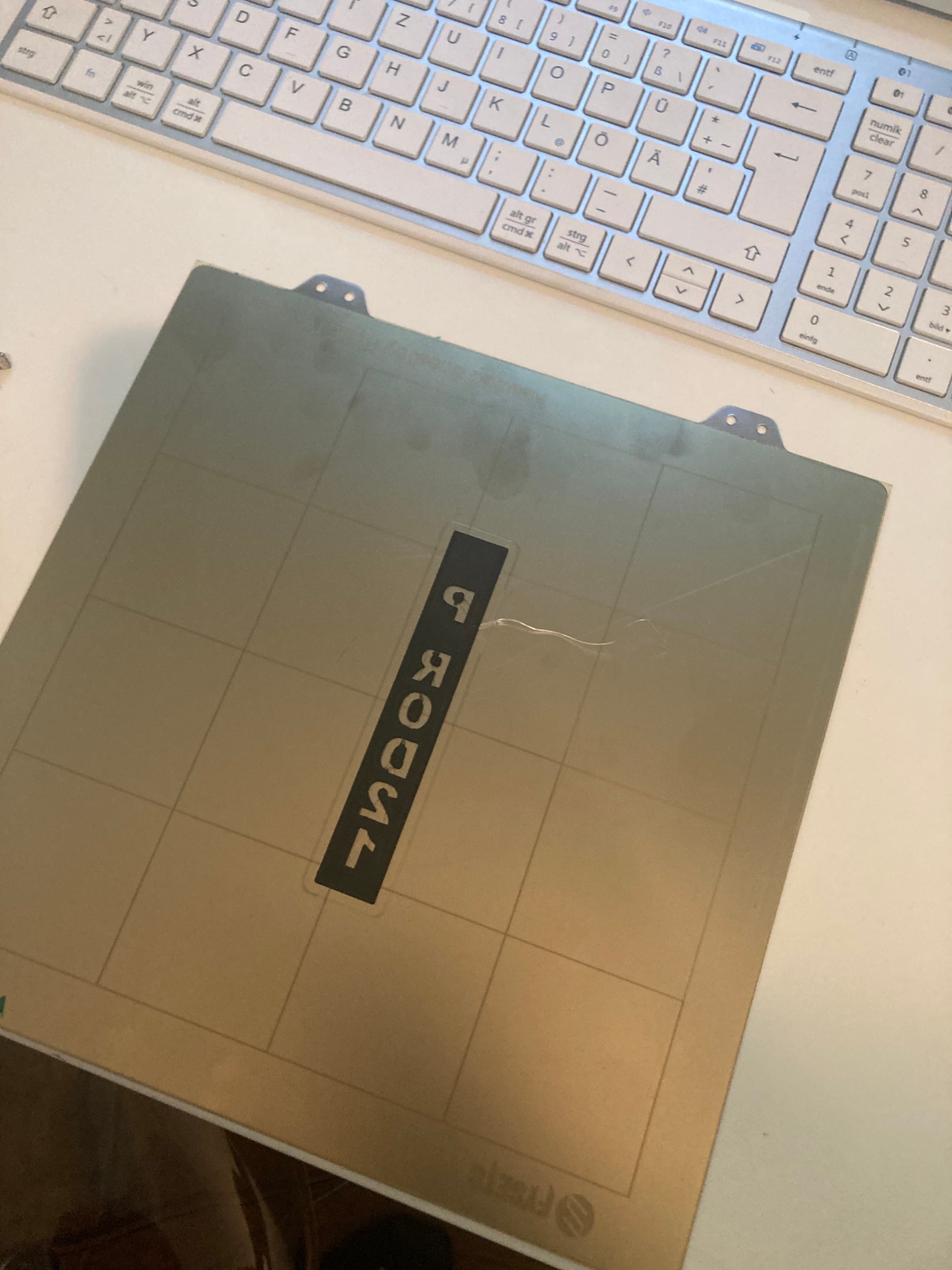

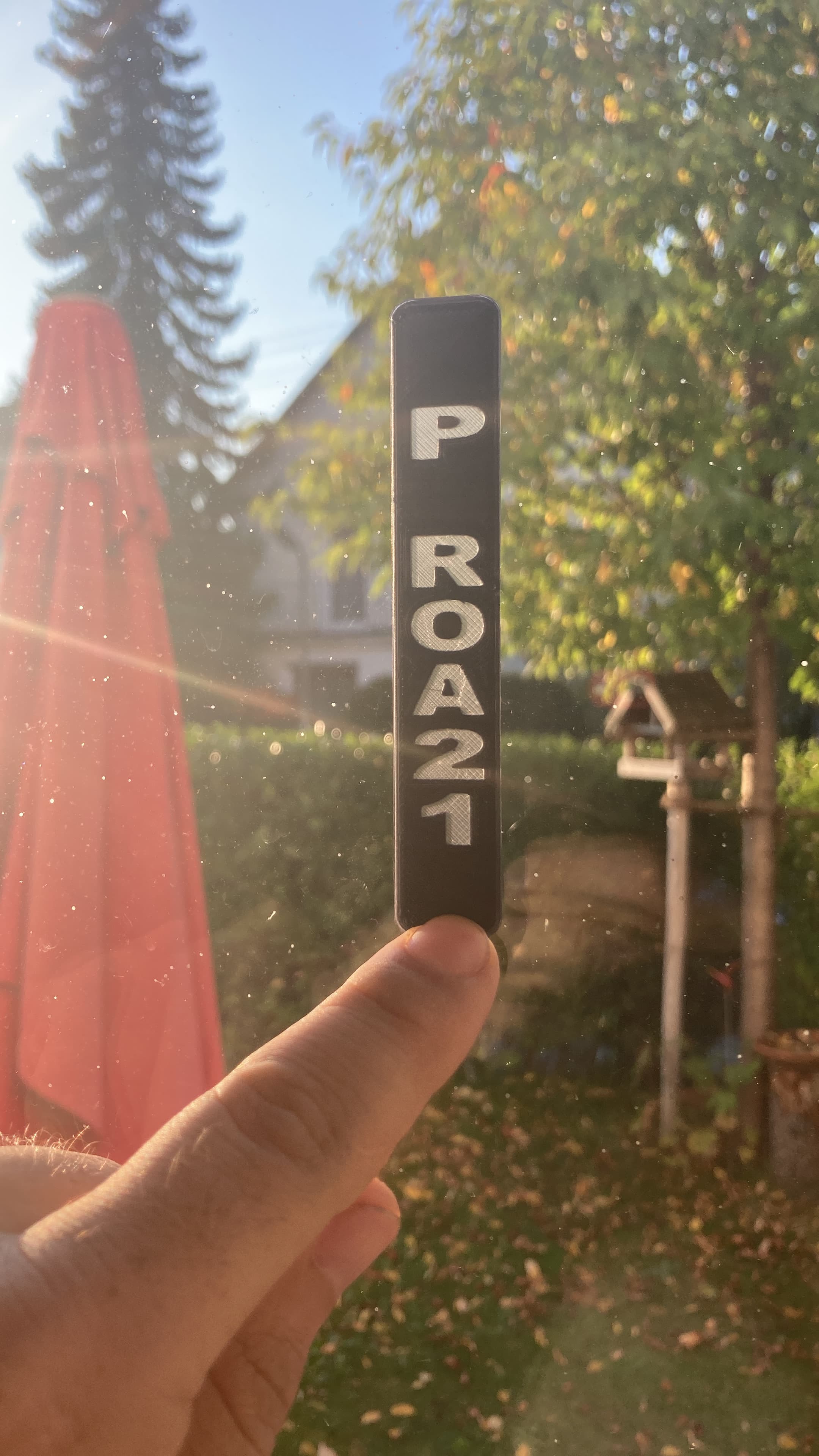

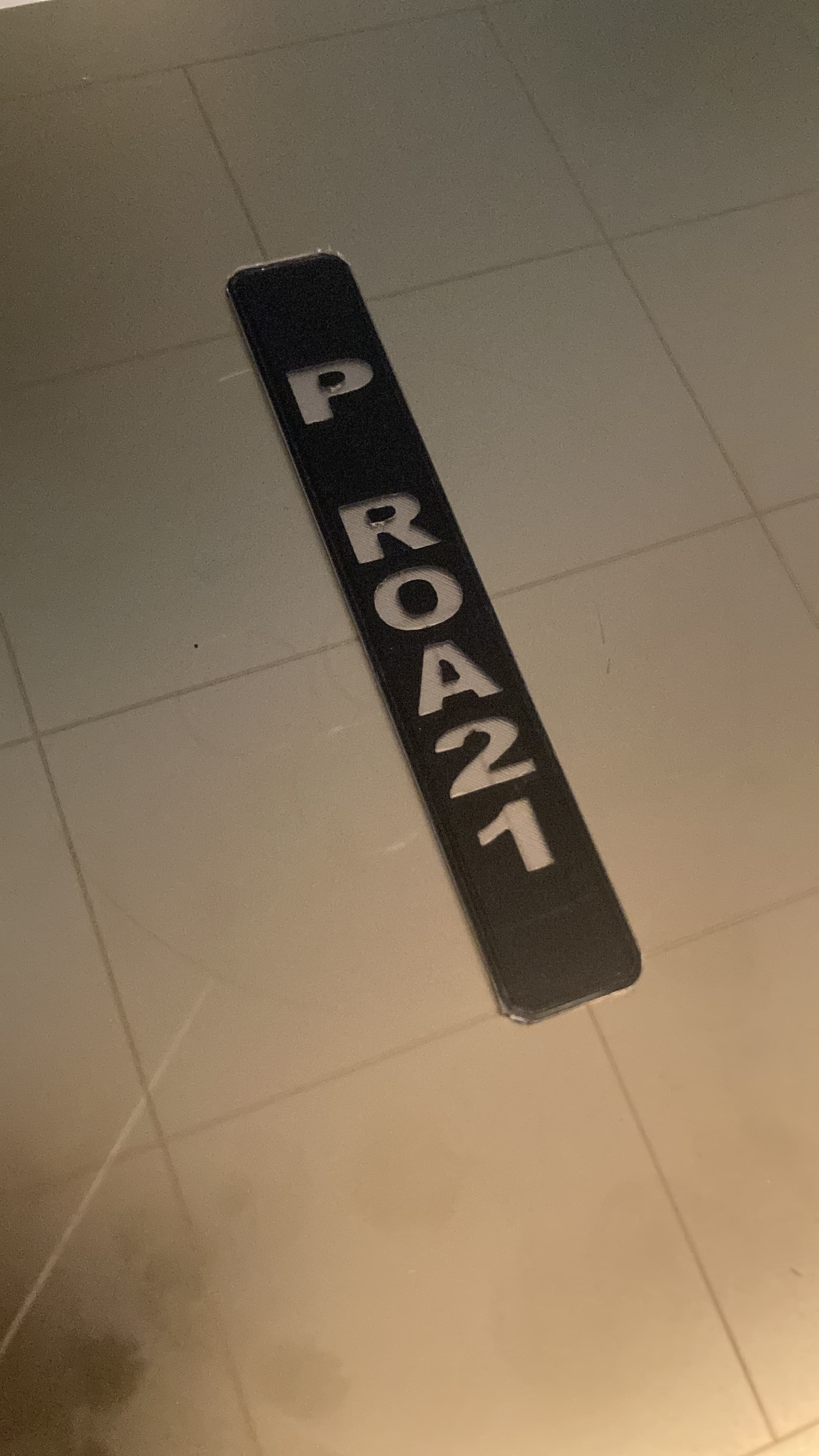

Replacement automatic-selector gear-indicator bezel, shown physically installed and loose for inspection. The creator specifies a filament color change: print the first layers in transparent material and the following layers in black so the markings remain legible. Automatic-transmission fitment only; compare the selector opening and indicator layout before installation. No parent selector-assembly number is assigned.
