Alpina Vent-Gauge Connector Housing

ABS · Nylon1 FILECC-BY-NC-SAElectrical

PART RECORDREF 1093

PART: Alpina Vent-Gauge Connector Housing
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1093QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1093

[01]kontakt.stlkontakt.stl.STL
[02]Bounding box44.500 × 16.000 × 13.500 mm
[03]Volume5,731.35 mm³

Field notes

BY JAN MAGNUS ØDEGAARD (JANMAGGA)

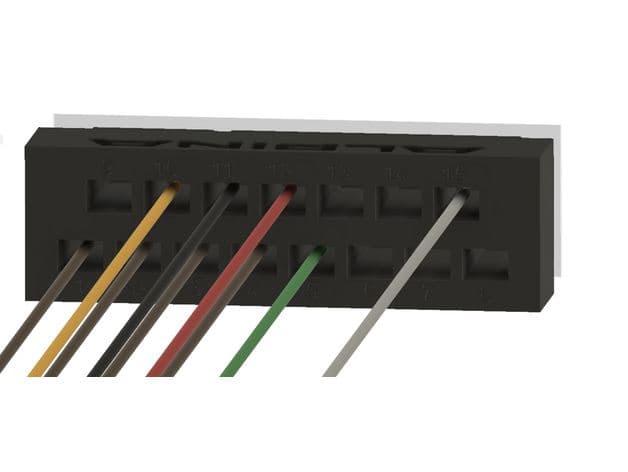

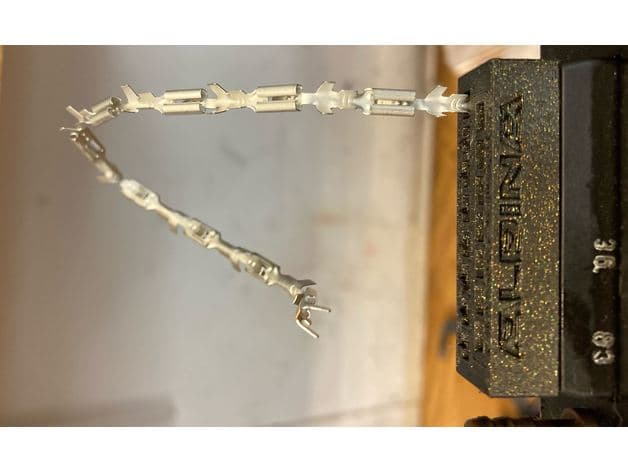

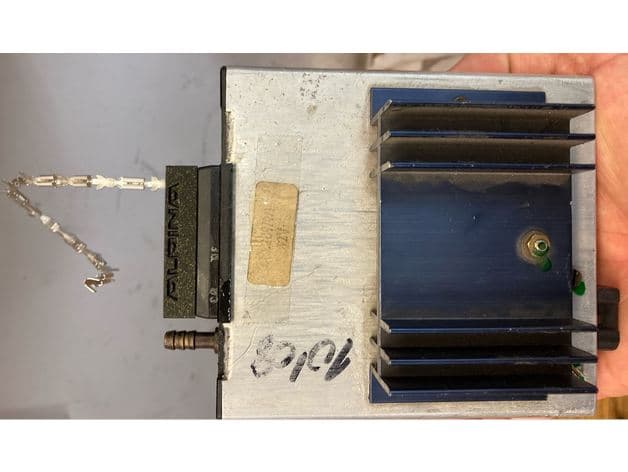

Replacement electrical connector housing for the classic Alpina vent gauge, designed around BMW 2.8 mm crimp terminals and compared with the original connector. Match terminal locking and pin order to the vehicle wiring before energizing.
