325i Clutch Alignment Tool

ABS · PETG1 FILECC-BY-NCMechanical

PART RECORDREF 1252

PART: 325i Clutch Alignment Tool
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1252QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1252

[01]E90_Tool_fixed.stlE90_Tool_fixed.stl.STL
[02]Bounding box39.998 × 26.746 × 26.744 mm
[03]Volume16,232.187 mm³

Field notes

BY KEVIN WHYTE (SALONA)

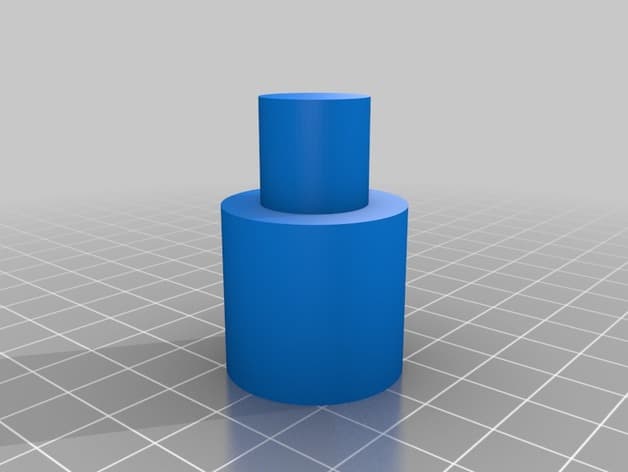

This tool perfectly aligns the clutch friction plate for a BMW E90 325i with dual mass flywheel and self adjusting clutch. On the gearbox side of the tool there is a 7.1mm dia hole so that it can be tapped to M8. I recommend printing in PLA with 100% infill. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.
