318ti Rear 5.25-Inch Speaker Adapter Pair
ABS · PETGMULTI-PART2 FILESCC-BY-NC-SAInterior
- PART
- 318ti Rear 5.25-Inch Speaker Adapter Pair
- OEM
- —
- FITS
- 3 Series E36
Loading 3D viewer...
PART ID · BIMMER-3D / 1145QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES

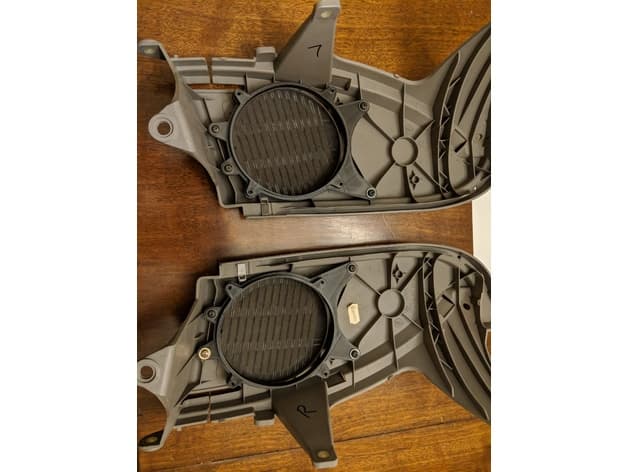

PLATE 01 / 06No caption recorded
Build sheet
MAN-1145- [01]e36c_speaker_adapter_2_L.stle36c_speaker_adapter_2_L.stl.STL
- [02]e36c_speaker_adapter_2_R.stle36c_speaker_adapter_2_R.stl.STL
- [03]Bounding box255.810 × 188.400 × 10.000 mm
- [04]Volume55,284.524 mm³
Field notes

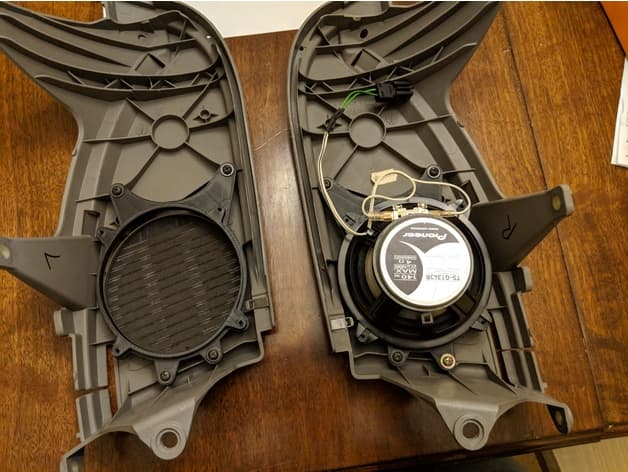

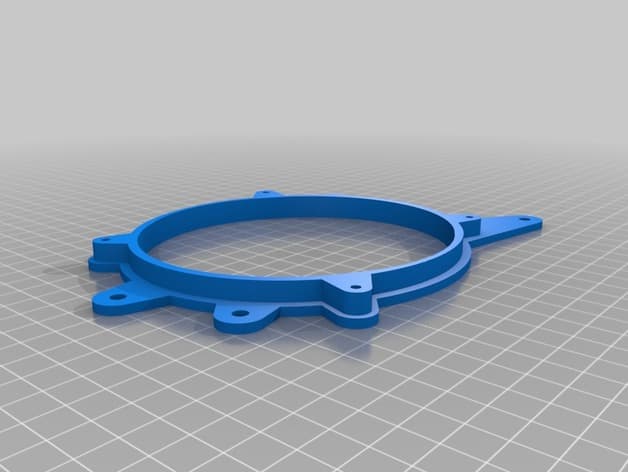

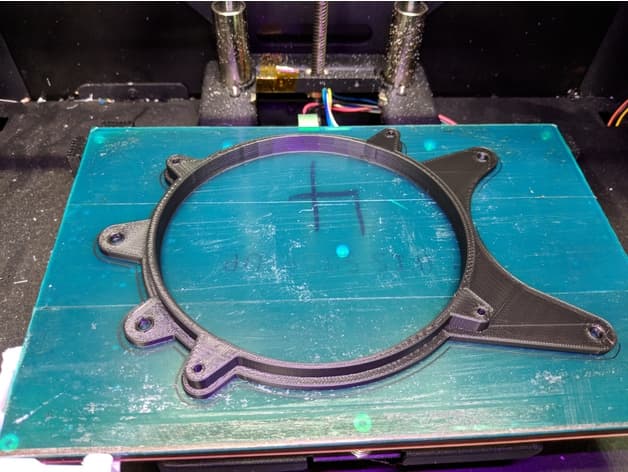

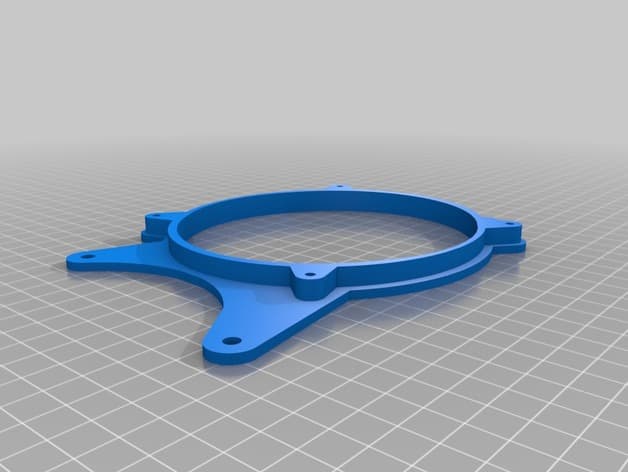

BY ANDREW CURTIN (ADCURTIN)Left and right adapters for installing standard 5.25-inch rear speakers in the BMW E36 318ti Compact without cutting the original housings. The source shows the printed adapters, speaker assembly and installed housings. Verify speaker depth, wiring clearance and screw retention.
