318ti 168 mm Differential-Seal Removal Sleeve

Nylon · PETG1 FILECC-BYMechanical

PART RECORDREF 1165

PART: 318ti 168 mm Differential-Seal Removal Sleeve
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1165QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1165

[01]BMW_168mm_diff_seal_rmvl_tool.stlBMW_168mm_diff_seal_rmvl_tool.stl.STL
[02]Bounding box60.000 × 60.000 × 40.000 mm
[03]Volume34,544.161 mm³

Field notes

BY PETER RINALDI (PRINALDI)

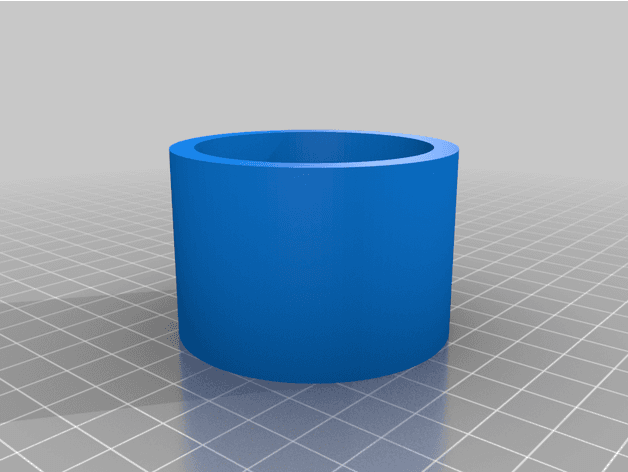

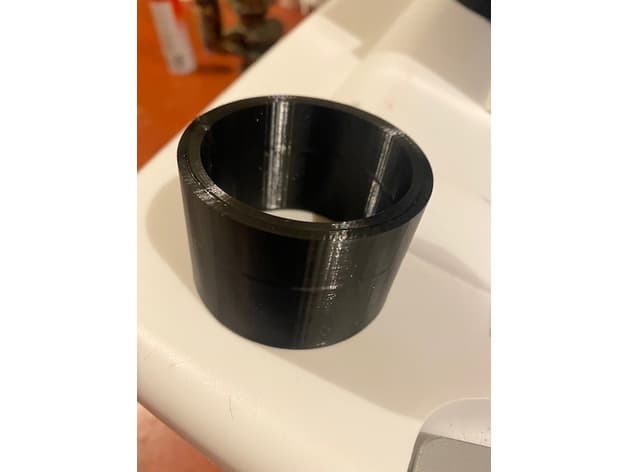

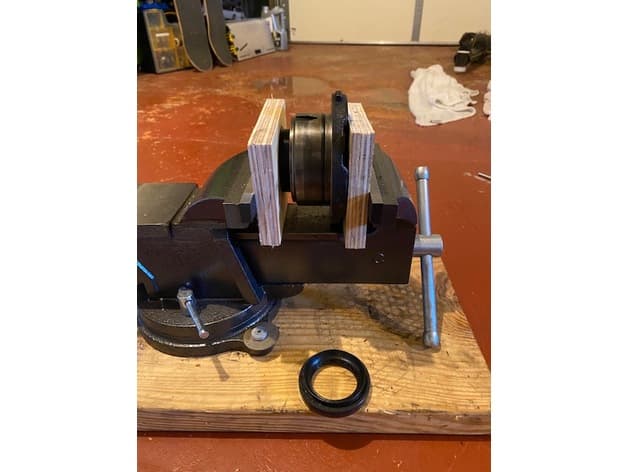

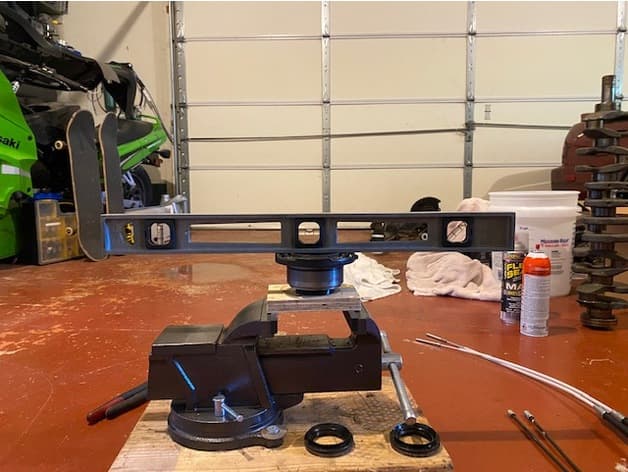

50 mm inner-diameter service sleeve for pressing output-flange seals out of the 168 mm differential on a 1995 E36 318ti. The source shows the physical tool and flange. Support the housing correctly, keep the tool square, and do not reuse a damaged seal.

View original source ↗
