318ti 168 mm Differential Output-Seal Driver

Nylon · PETG1 FILECC-BYMechanical

PART RECORDREF 1162

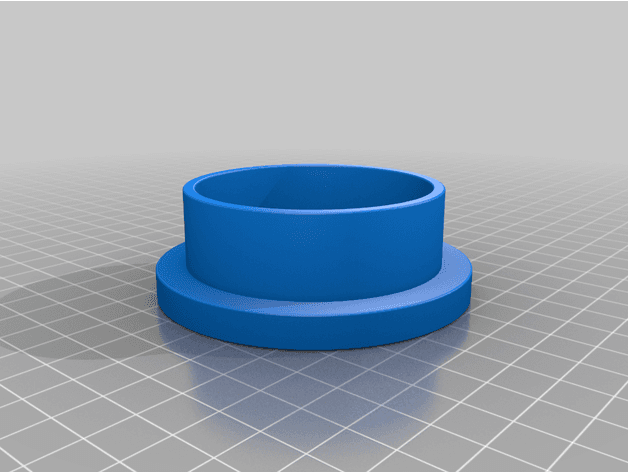

PART: 318ti 168 mm Differential Output-Seal Driver
OEM: —
FITS: 3 Series E36, Z3 E36/7 / E36/8

Loading 3D viewer...

PART ID · BIMMER-3D / 1162QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1162

[01]BMW318tiDifferentialOutputSealDriver.stlBMW318tiDifferentialOutputSealDriver.stl.STL
[02]Bounding box80.000 × 80.000 × 27.500 mm
[03]Volume29,677.907 mm³

Field notes

BY FRISO SCHLOTTAU (FSCHLOTTAU)

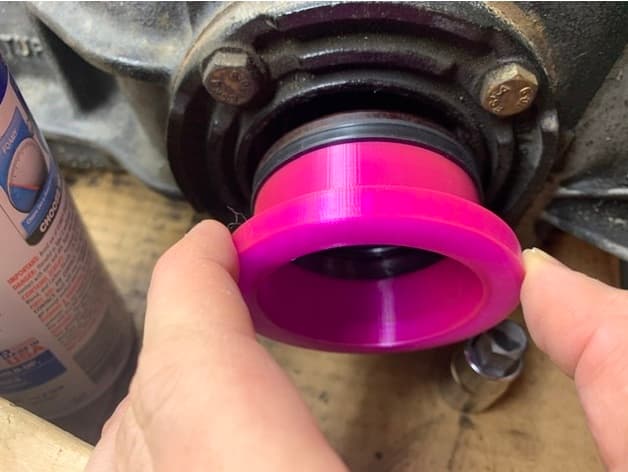

Service driver sized to install 168 mm differential output seals to the original depth on four-cylinder E36 and creator-listed Z3 applications. The source shows the physical tool on the differential. Use with a flat striking plate, measure seal depth, and inspect the seal lip before assembly.

View original source ↗
