15-Inch BBS RZ Style 5 Centre-Cap Set

ABS · NylonMULTI-PART4 FILESCC-BY-NC-SAExterior

PART RECORDREF 1096

PART: 15-Inch BBS RZ Style 5 Centre-Cap Set
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1096QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

10 PLATES

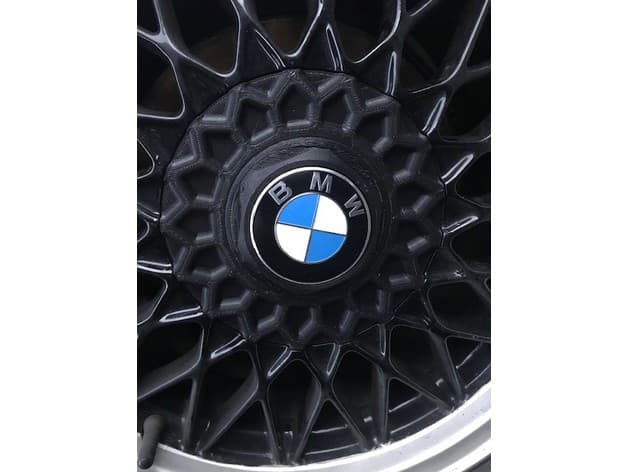

PLATE 01 / 10No caption recorded

Build sheet

MAN-1096

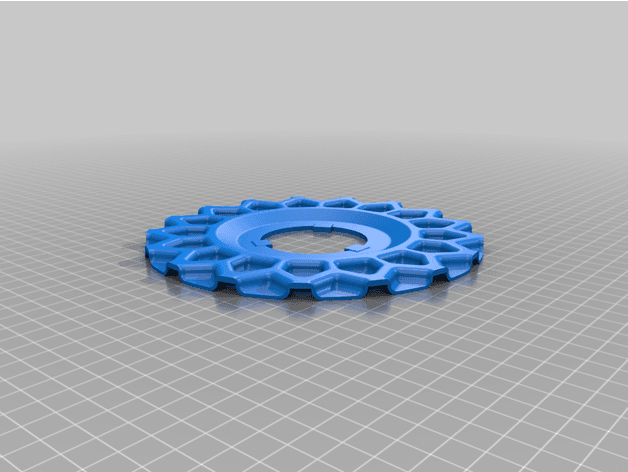

[01]Plate.stlPlate.stl.STL

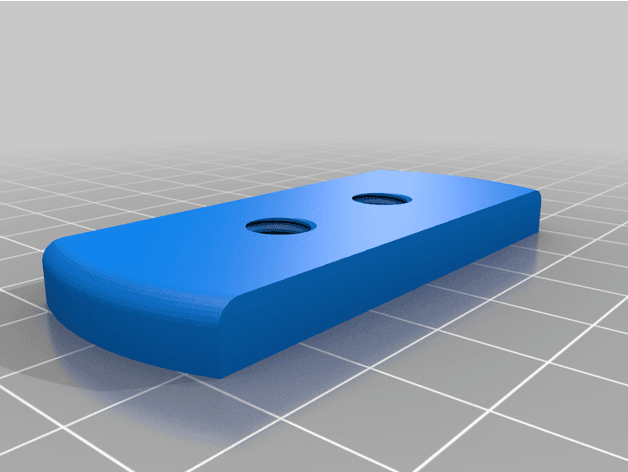

[02]insert.stlinsert.stl.STL

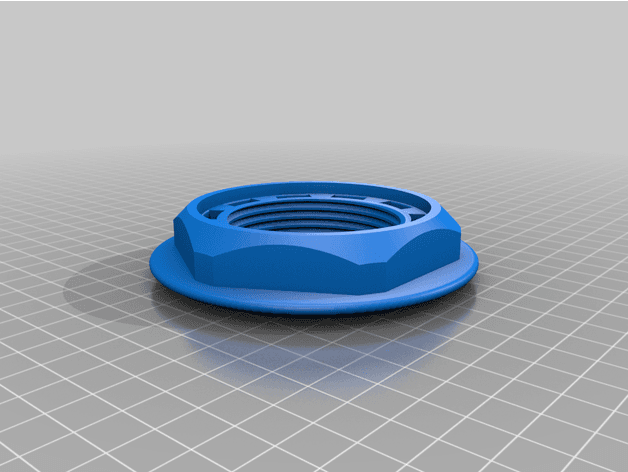

[03]nut.stlnut.stl.STL

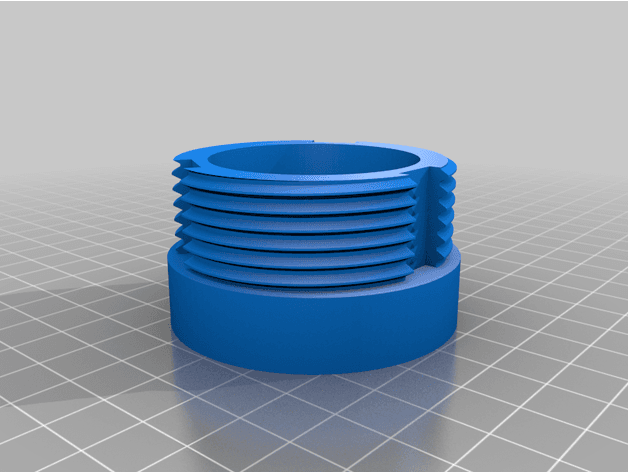

[04]thread.stlthread.stl.STL
[05]Bounding box352.103 × 171.000 × 32.000 mm
[06]Volume191,567.314 mm³

Field notes

BY ROBERT ENGLISH (RENGLISH)

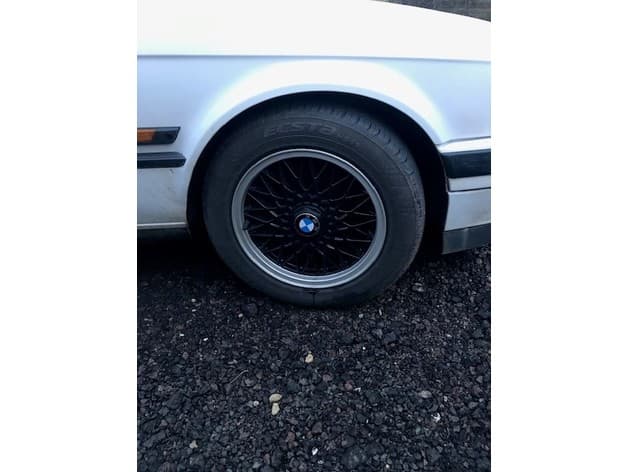

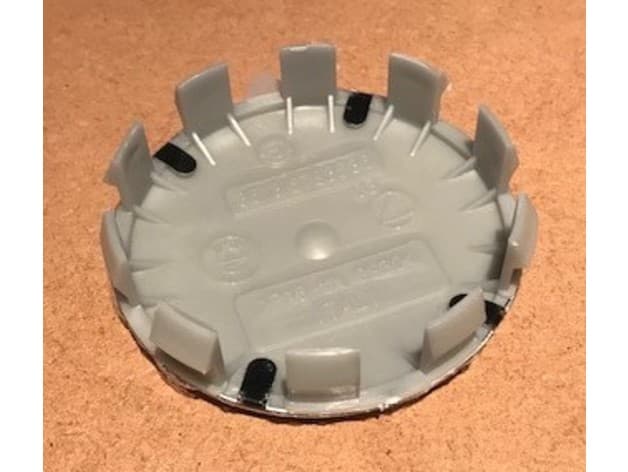

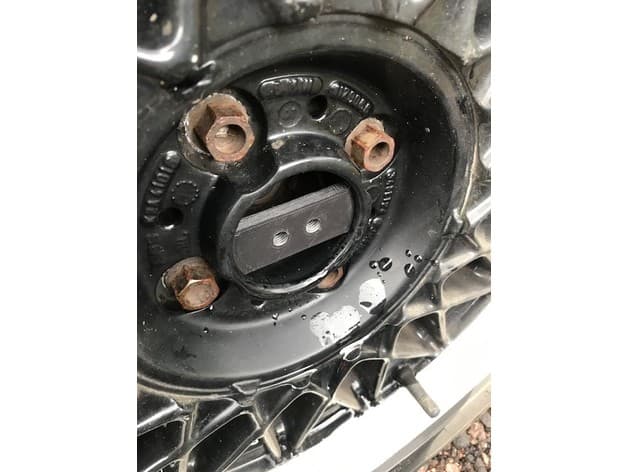

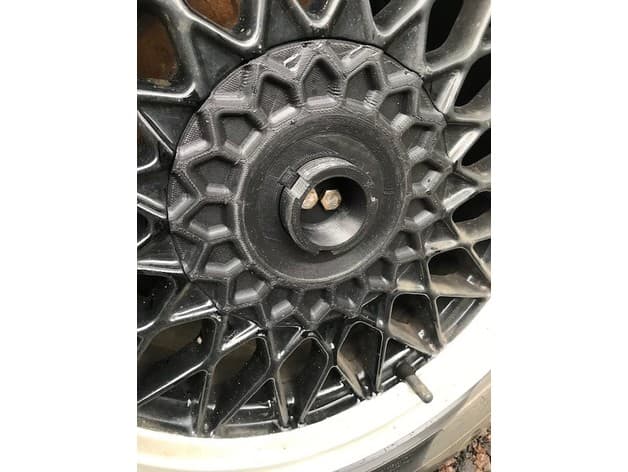

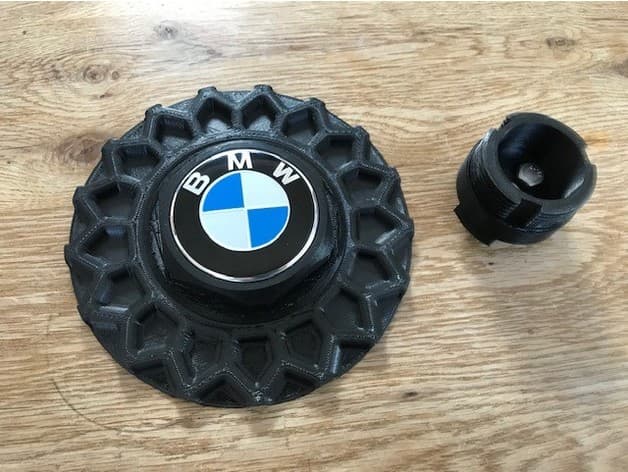

Four-part replacement centre-cap system for 15-inch BBS RZ Style 5 wheels used on E30. The creator prototyped and fitted it, documents assembly and temperature-resistant materials, and advises checking the printed nut position regularly. The separate 68 mm badge number is intentionally omitted.

View original source ↗
