14-Inch Basket-Weave Wheel Centre Caps

ABS · NylonMULTI-PART5 FILESCC-BY-NC-SAExterior

PART RECORDREF 1124

PART: 14-Inch Basket-Weave Wheel Centre Caps
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1124QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1124

[01]Clip v1.0.stlClip v1.0.stl.STL
[02]Face v1.0.stlFace v1.0.stl.STL
[03]Hex_68mm-bmw-logo v1.0.stlHex_68mm-bmw-logo v1.0.stl.STL
[04]Hex_b-logo v1.0.stlHex_b-logo v1.0.stl.STL
[05]Hex_no-logo v1.0.stlHex_no-logo v1.0.stl.STL
[06]Bounding box489.977 × 151.000 × 40.000 mm
[07]Volume327,254.818 mm³

Field notes

BY ELUSIVESHIBA

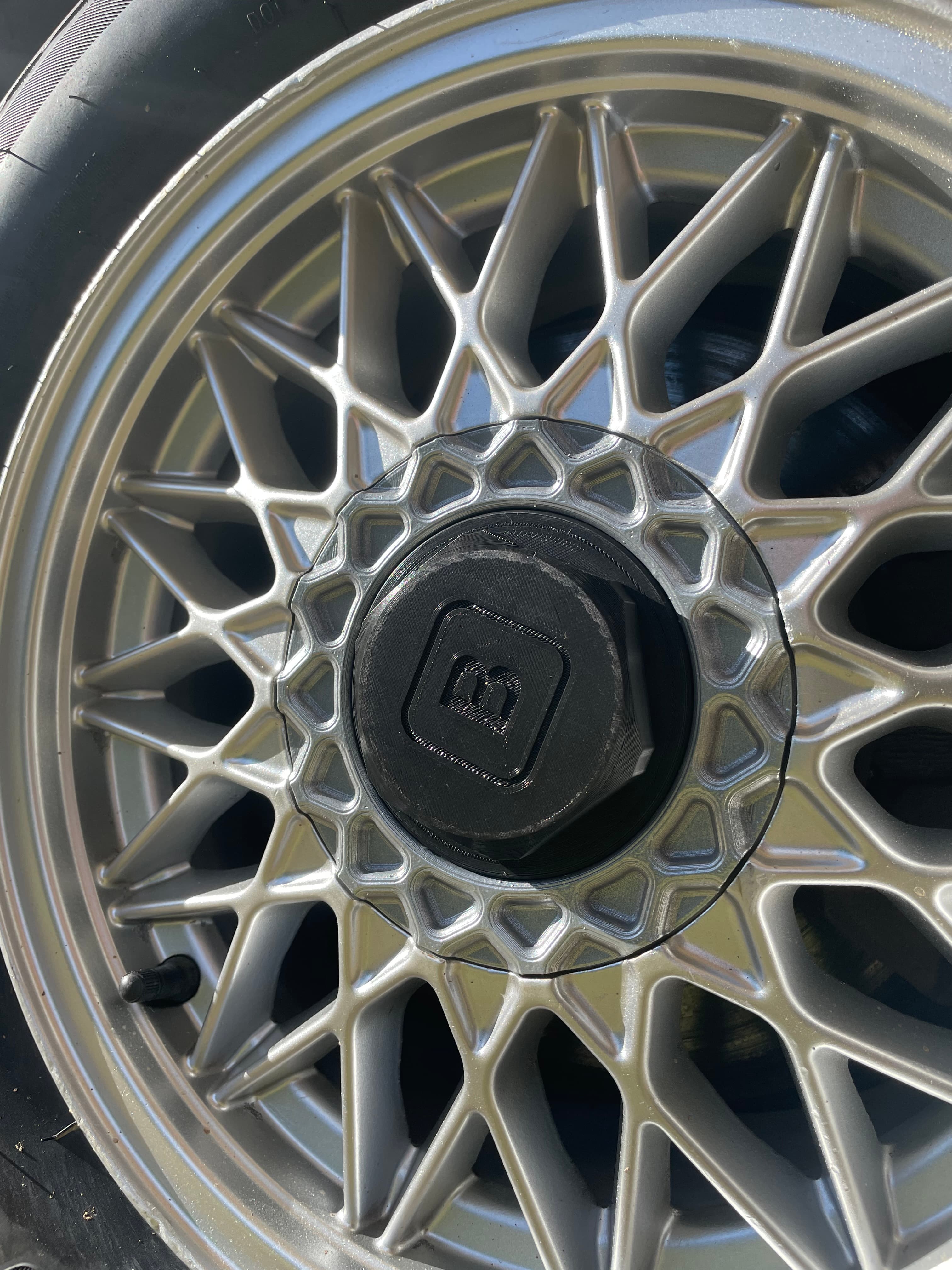

Five-file replacement centre-cap system for factory-style 14-inch E30 basket-weave wheels, using a face, locking clip and choice of three hex inserts. The source shows physical installation; test one assembly and verify positive retention before road use.
