Wiper clip

ABS · PETG1 FILECC-BYWipers
PART RECORDREF 1221
PART
Wiper clip
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1221QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
1 PLATE
Plate 1 of 1

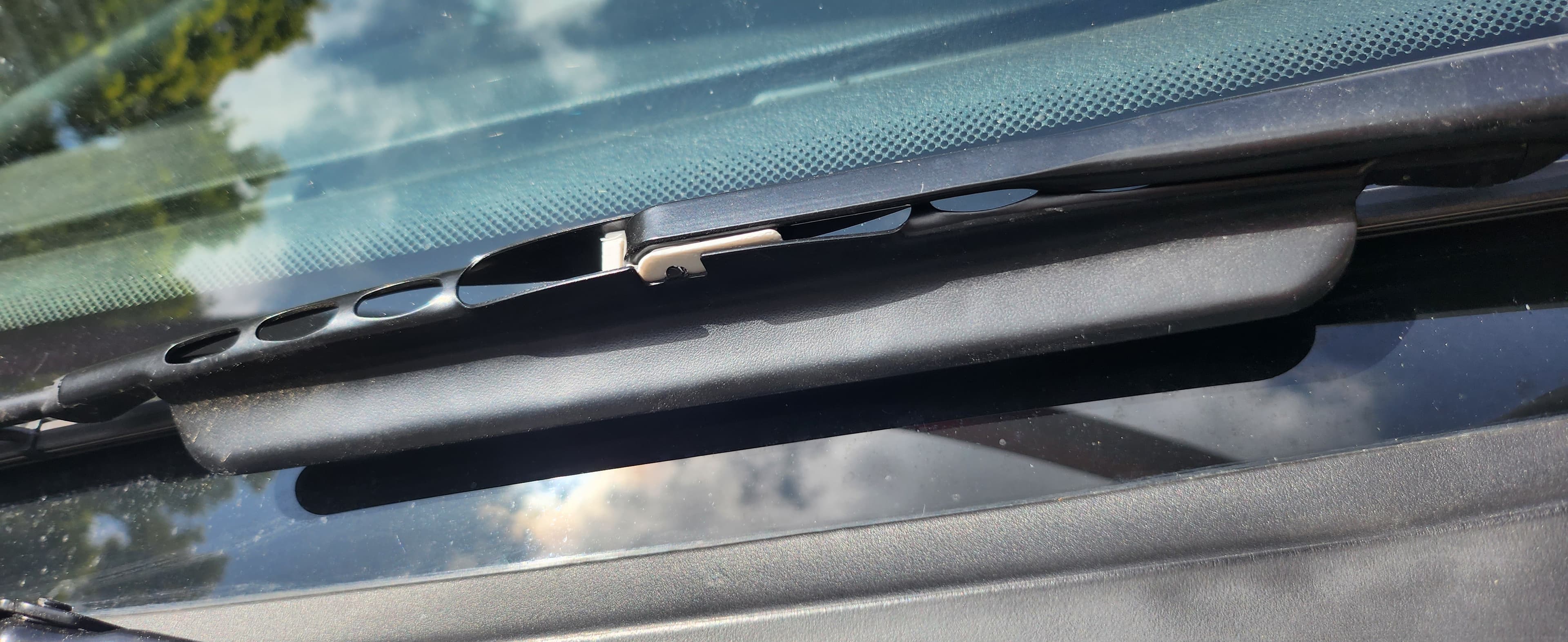

PLATE 01 / 01No caption recorded
Build sheet
MAN-1221
  • [01]bmw e46 wiper clip.stl.STL
  • [02]Bounding box34.836 × 11.365 × 10.560 mm
  • [03]Volume699.645 mm³
Field notes
BY ROBOERECTUS

So I broke my wiper clip while replacing some other stuff on the car. There's not really a viable/economical replacement and original part does not take well to super glue. I started from another STL and modeled over it in fusion. Then did a couple of test prints and iterated as I went. Depending on your tolerances, filament, and shrinkage, you may have to fiddle with the final dimensions. Printed in PC-ABS. It doesn't fall off when using the windshield washing function. idk if I'd use it in a rally race. Use at your own risk. Use heat-, UV- and fluid-resistant material and verify full wiper or washer clearance.
