Windscreen Cowl Mount Repair Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCWipers
PART RECORDREF 1493
PART
Windscreen Cowl Mount Repair Set
OEM
FITS
X3 E83
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1493QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
8 PLATES
Plate 1 of 8
PLATE 01 / 08No caption recorded
Build sheet
MAN-1493

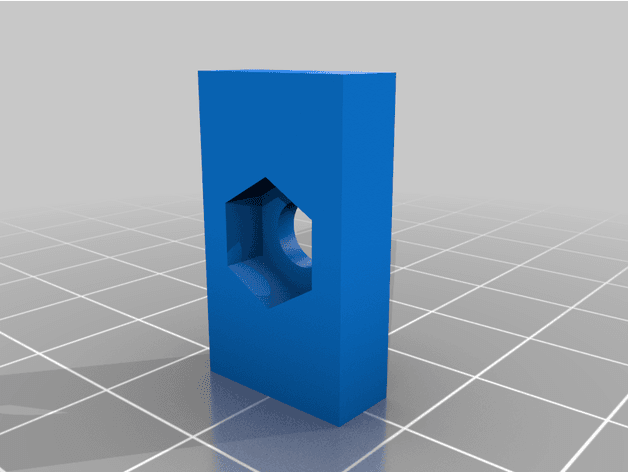

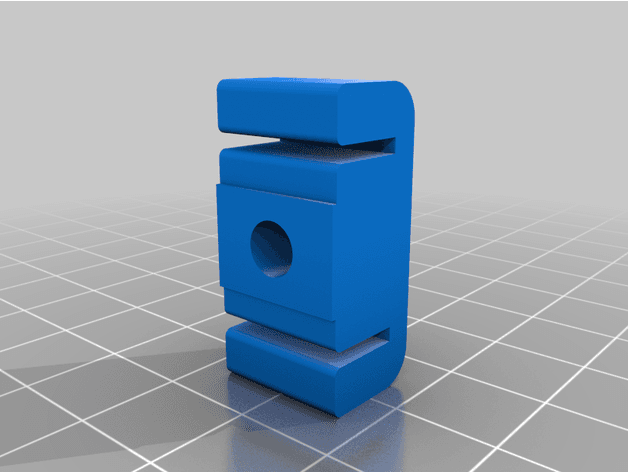

  • [01]Main_part.stl.STL
  • [02]Second_part.stl.STL
  • [03]Bounding box29.000 × 17.192 × 14.000 mm
  • [04]Volume5,340.86 mm³
Field notes
BY MISTER DMITRIY (MISTER_DMITRIY)

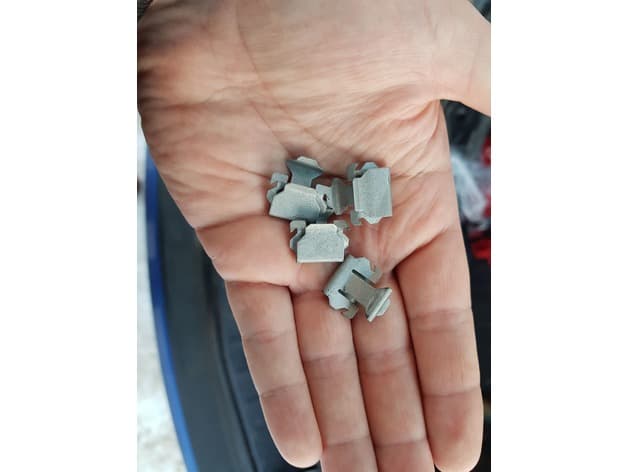

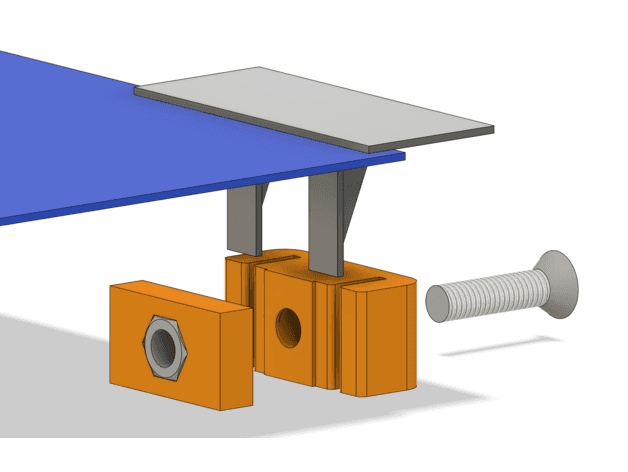

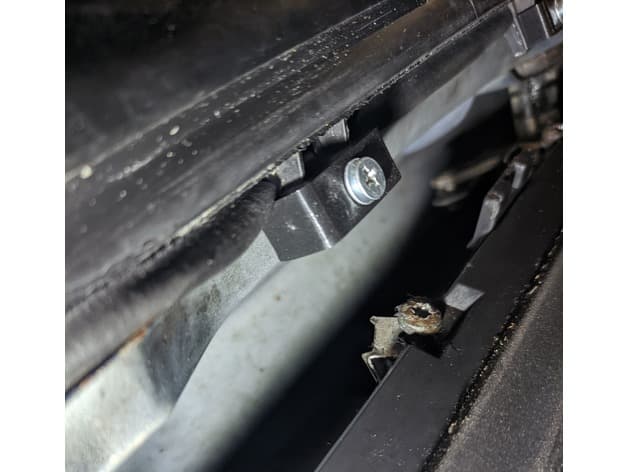

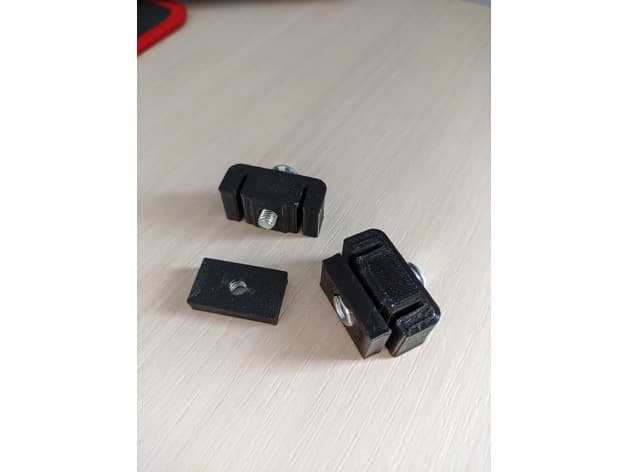

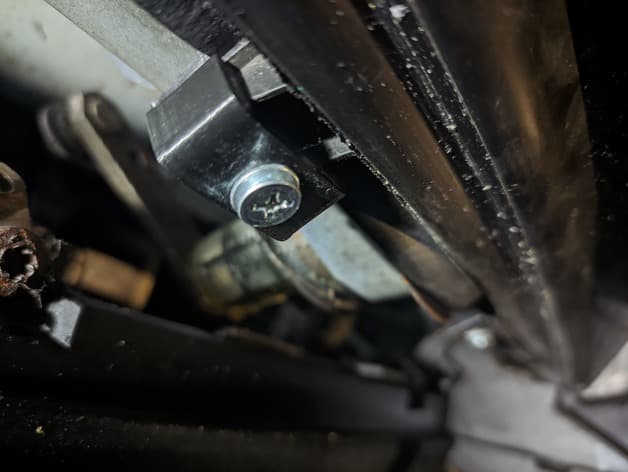

Two-piece bolted replacement for missing metal staples that retain the lower-windscreen rain tray, with loose and installed physical evidence. The source's 51713401811 identifies the complete E83 windscreen-panel cover, while the printed geometry replaces its mounting feature, so that parent number is not assigned. Use a weather- and heat-resistant material, corrosion-resistant M5 hardware, and verify wiper clearance, water drainage and retention after installation.
