PART №1540
FROMBIMMER-3D-PARTSDESTWORKBENCH01 AUG 2026
Wheel-Housing Service-Flap Clip
ABS · PETG1 FILECC-BY-NCTrim Clips
- PART
- Wheel-Housing Service-Flap Clip
- OEM
- —
- FITS
- Z4 E85 / E86
Loading 3D viewer...
PART ID · BIMMER-3D / 1540QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet
MAN-1540- [01]Klip_revesionsklappe.stlKlip_revesionsklappe.stl.STL
- [02]Bounding box60.606 × 25.151 × 6.981 mm
- [03]Volume2,280.855 mm³
Field notes

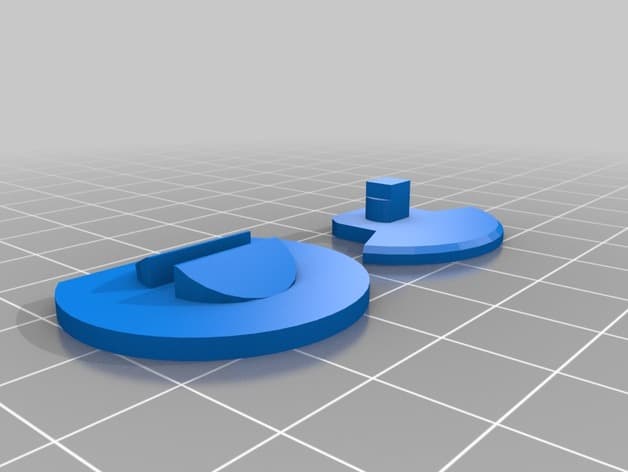

BY SAFIN 3D (SAFIN85)Two-piece clip for the wheel-housing service flap, shown installed, loose and after extended use. The creator reports that PLA softened but still held after two years and recommends a more heat-resistant material. BMW does not service this clip separately from the surrounding flap, so no parent-assembly number is assigned. Verify closure and tyre, lamp and suspension clearance.
