Dashboard Button-Strip USB Holder

ABS · PETGMULTI-PART4 FILESCC-BY-NC-SADashboard
PART RECORDREF 1237
PART
Dashboard Button-Strip USB Holder
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1237QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Build sheet
MAN-1237
  • [01]usb-plug.3mf.STL
  • [02]usbmount-clamp.3mf.STL
  • [03]usbmount-v10.3mf.STL
  • [04]usbmount-v10.step.STL
Field notes
BY HOMOPHOBIA

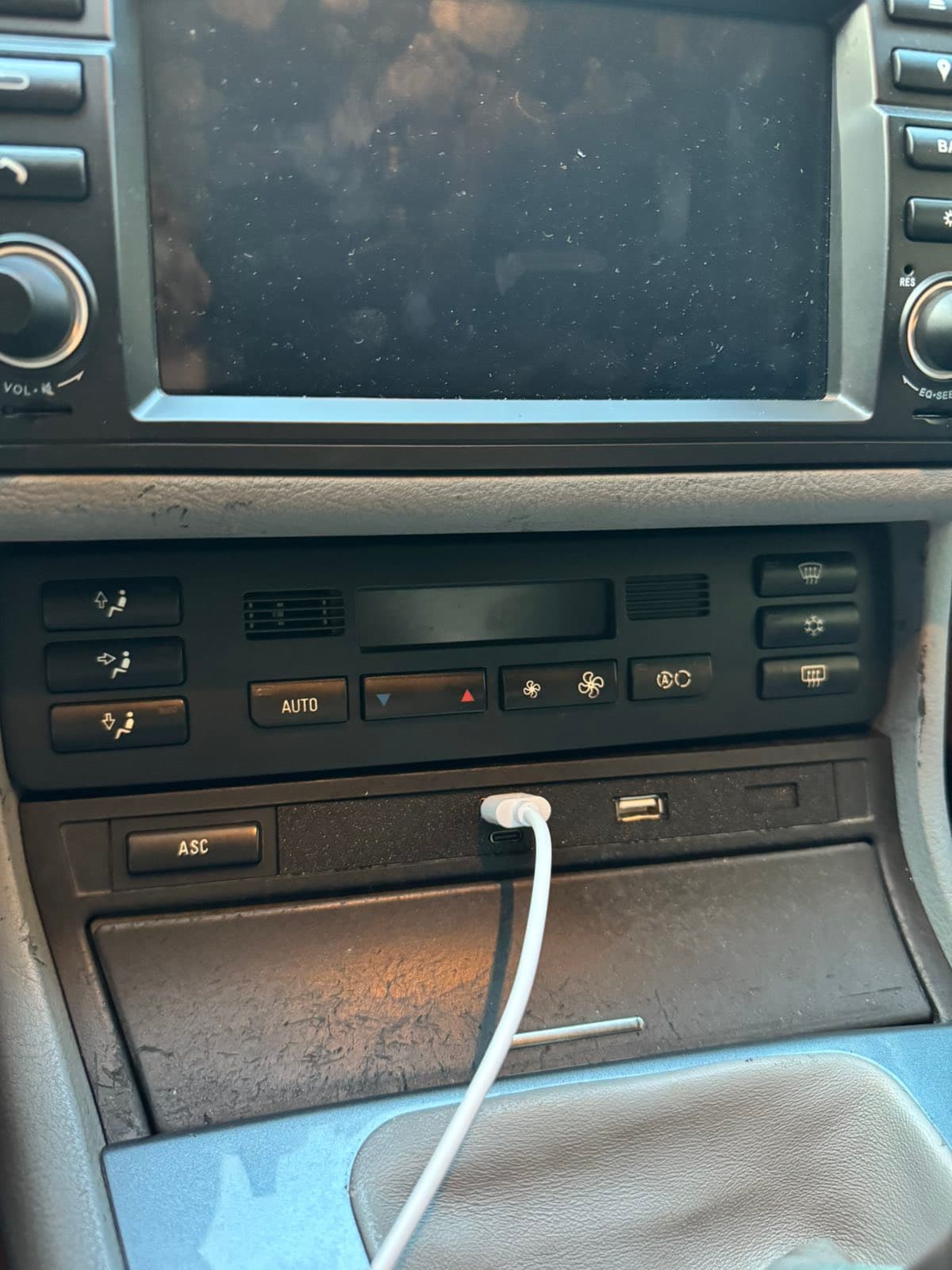

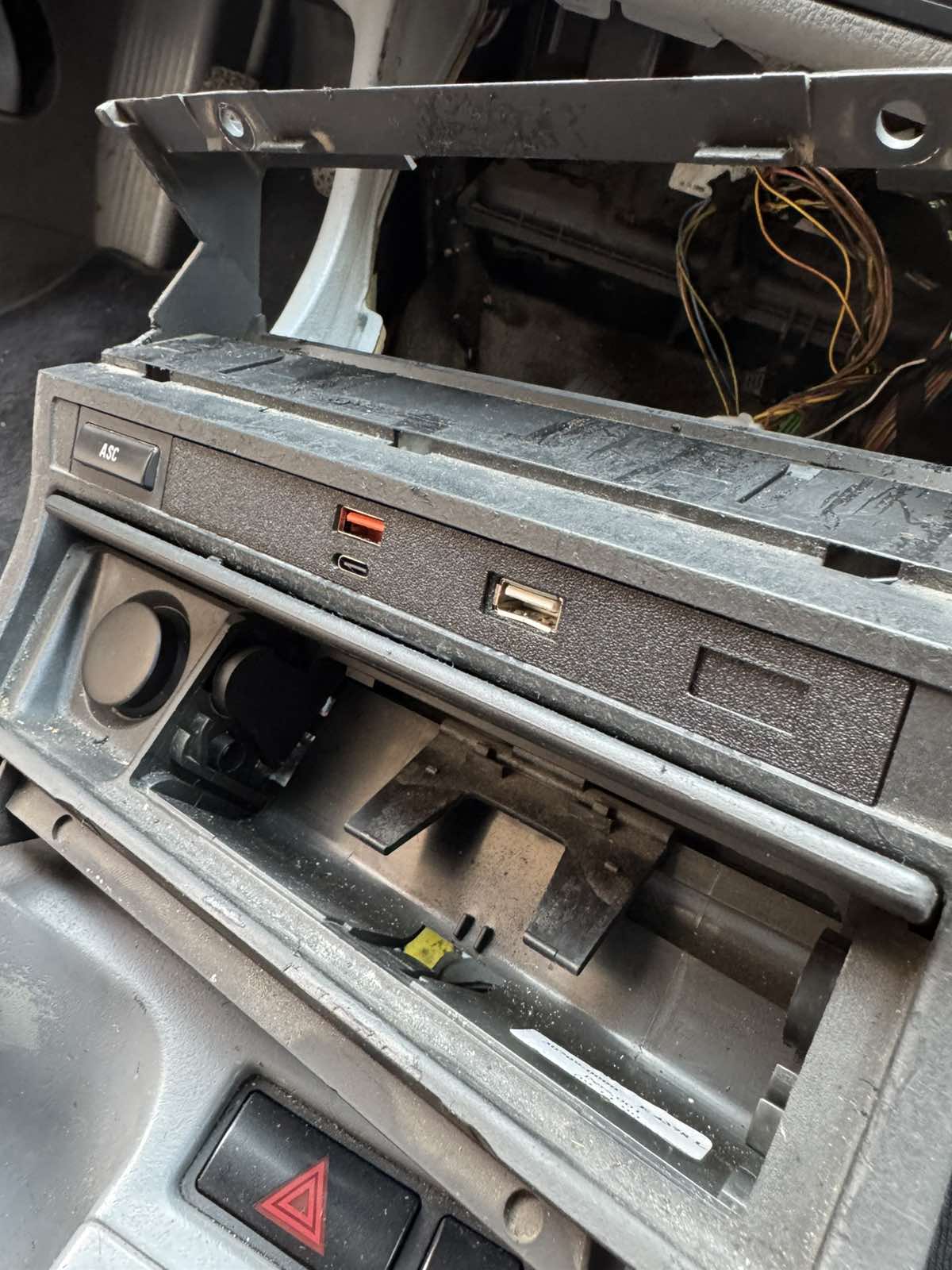

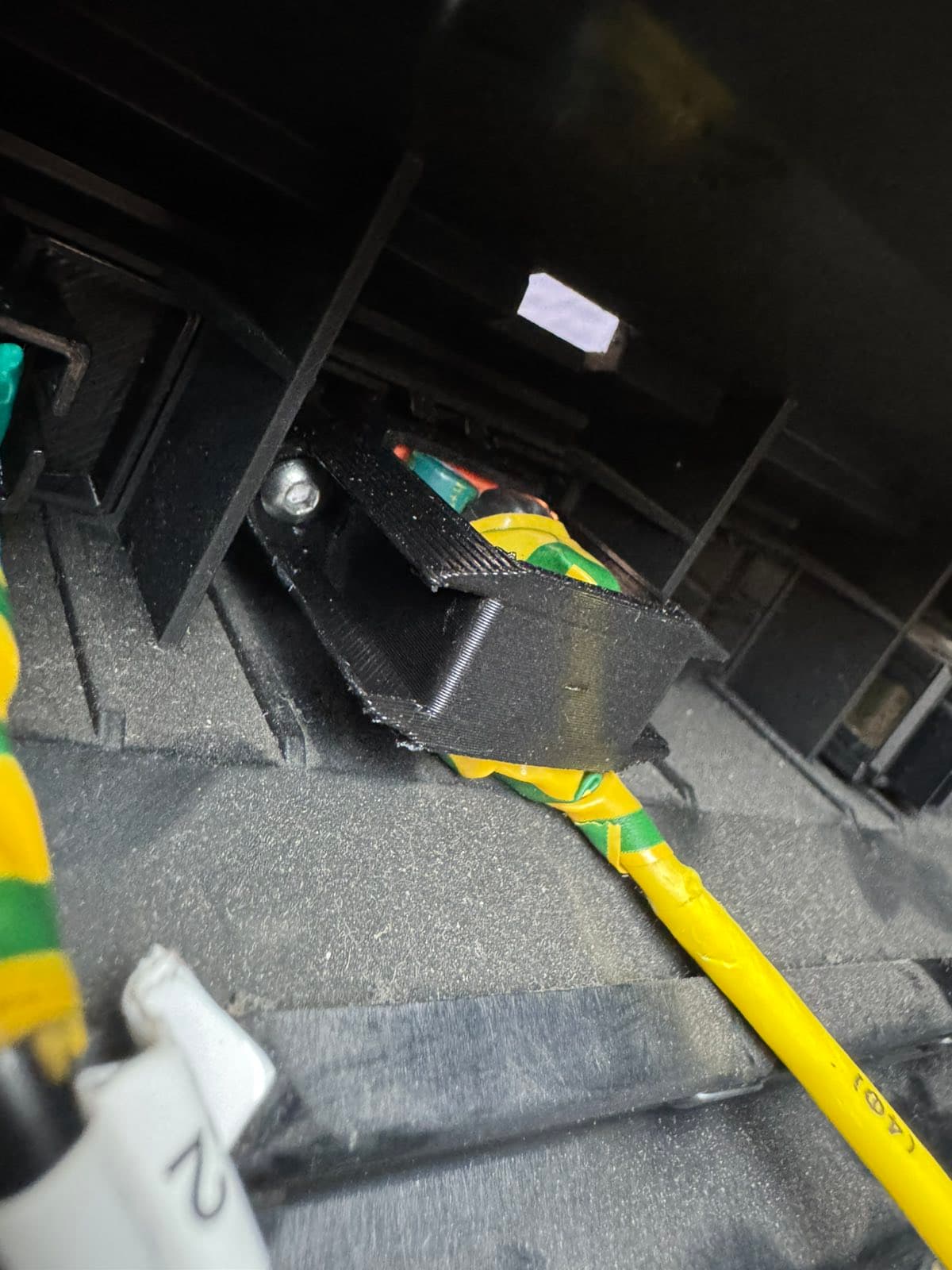

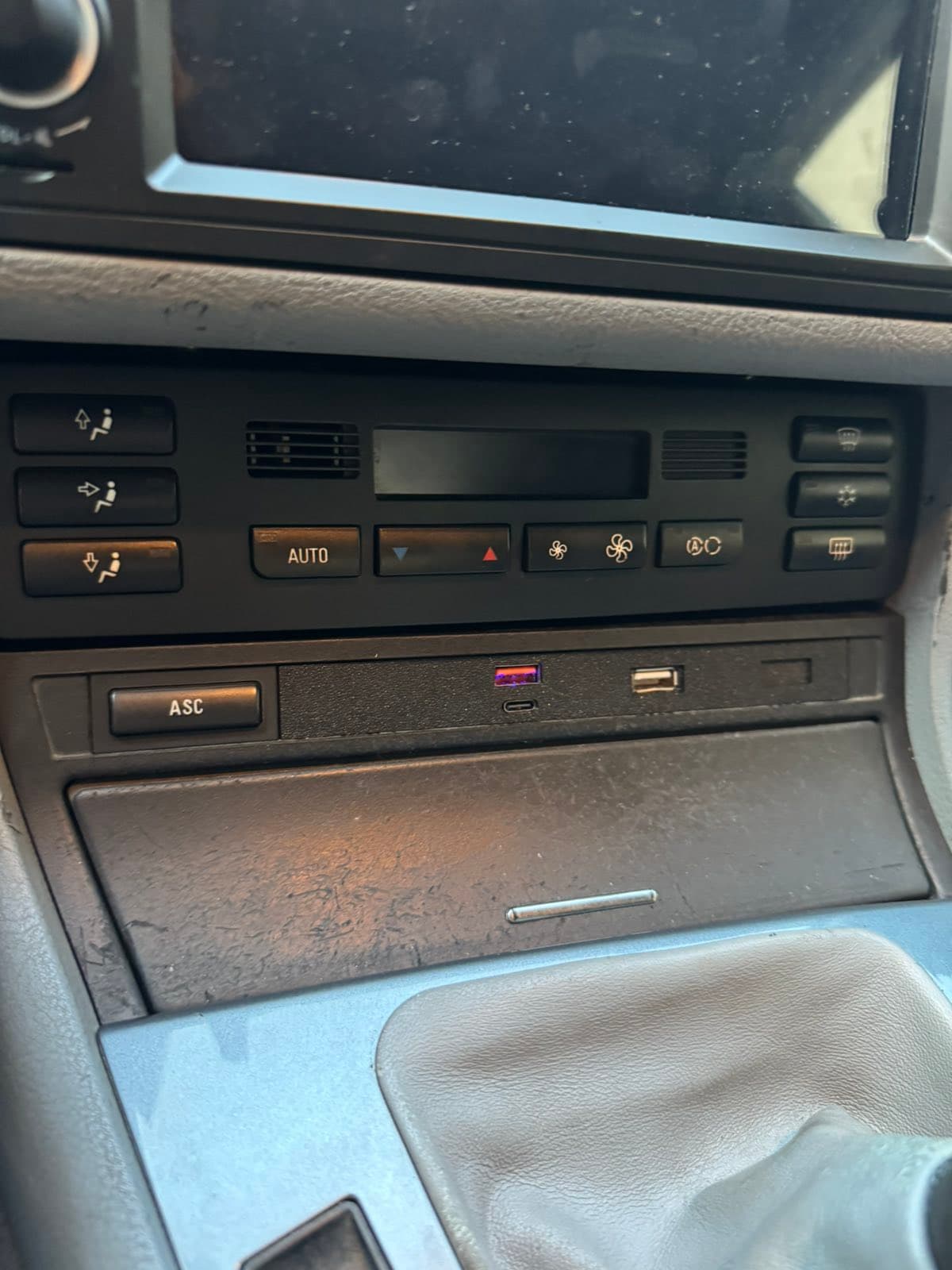

This is a custom USB holder designed to replace the button blanking strip on a BMW E46 dashboard – the one next to the ASC/DSC button. It’s a remix of another model, but with serious upgrades: ✅ Now with 3 Holes : I added a third port so you can mount a standard car charger PCB . Just remove the plastic casing and drop in the board. Works perfectly with generic AliExpress/Amazon 12V USB chargers. 🔩 Rear Clamp with M3 Bolts : The back has a clamp system for a solid hold using M3 bolts and heat-set inserts (not required, but highly recommended). 📐 Includes STEP File : I reverse-engineered the original STL in Fusion 360 and included a clean STEP file for anyone who wants to customize it further Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
