Under-Seat Vent Cover

ABS · Nylon · PETG2 FILESCC-BY-NCInterior
PART RECORDREF 1503
PART
Under-Seat Vent Cover
OEM
FITS
X3 G01 / F97
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1503QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1503
  • [01]bmw_bouche-aeration.stl.STL
  • [02]bmw_bouche-aeration.3mf.STL
  • [03]Bounding box153.700 × 43.387 × 22.200 mm
  • [04]Volume11,351.911 mm³
Field notes
BY F3DX

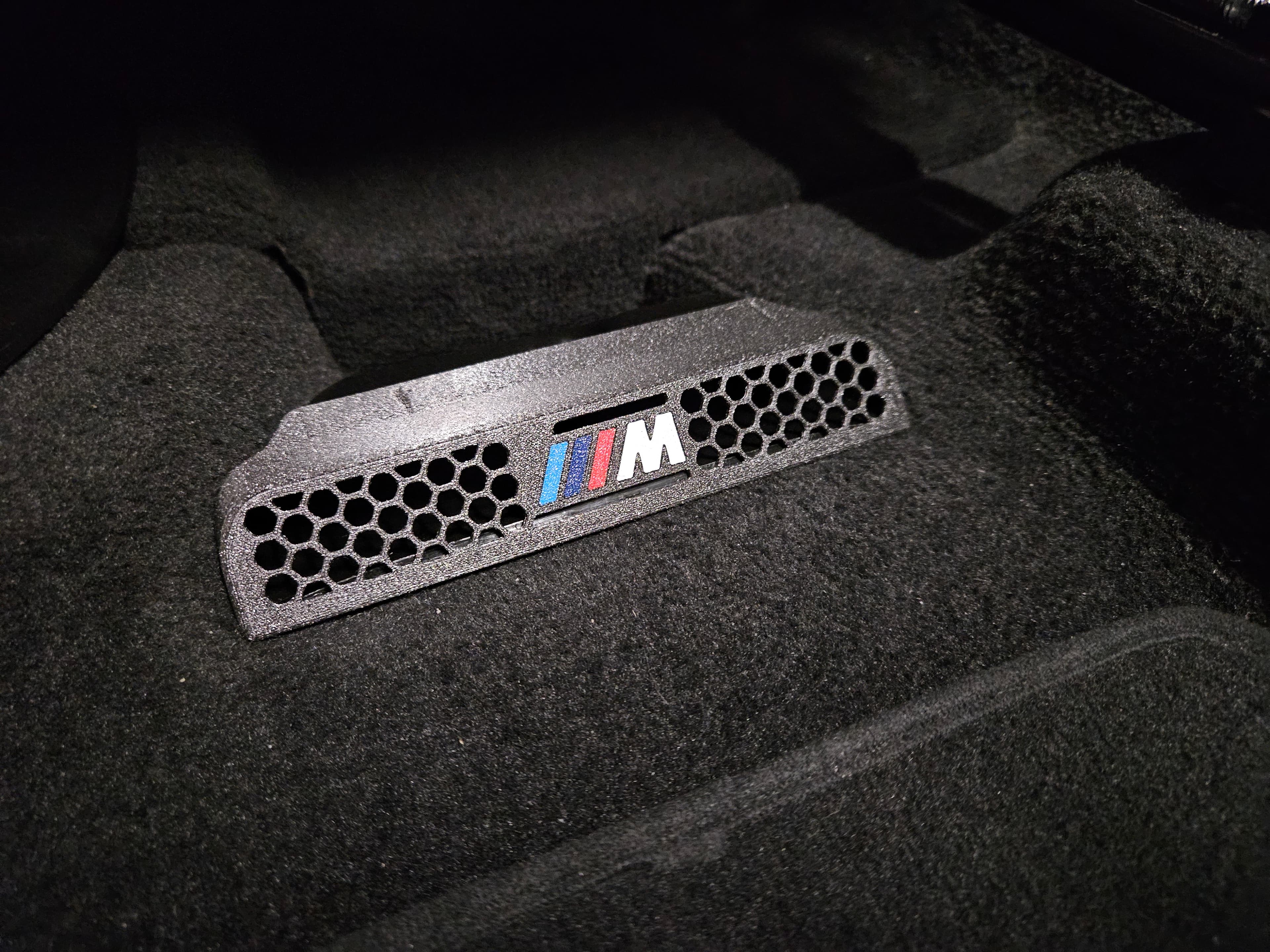

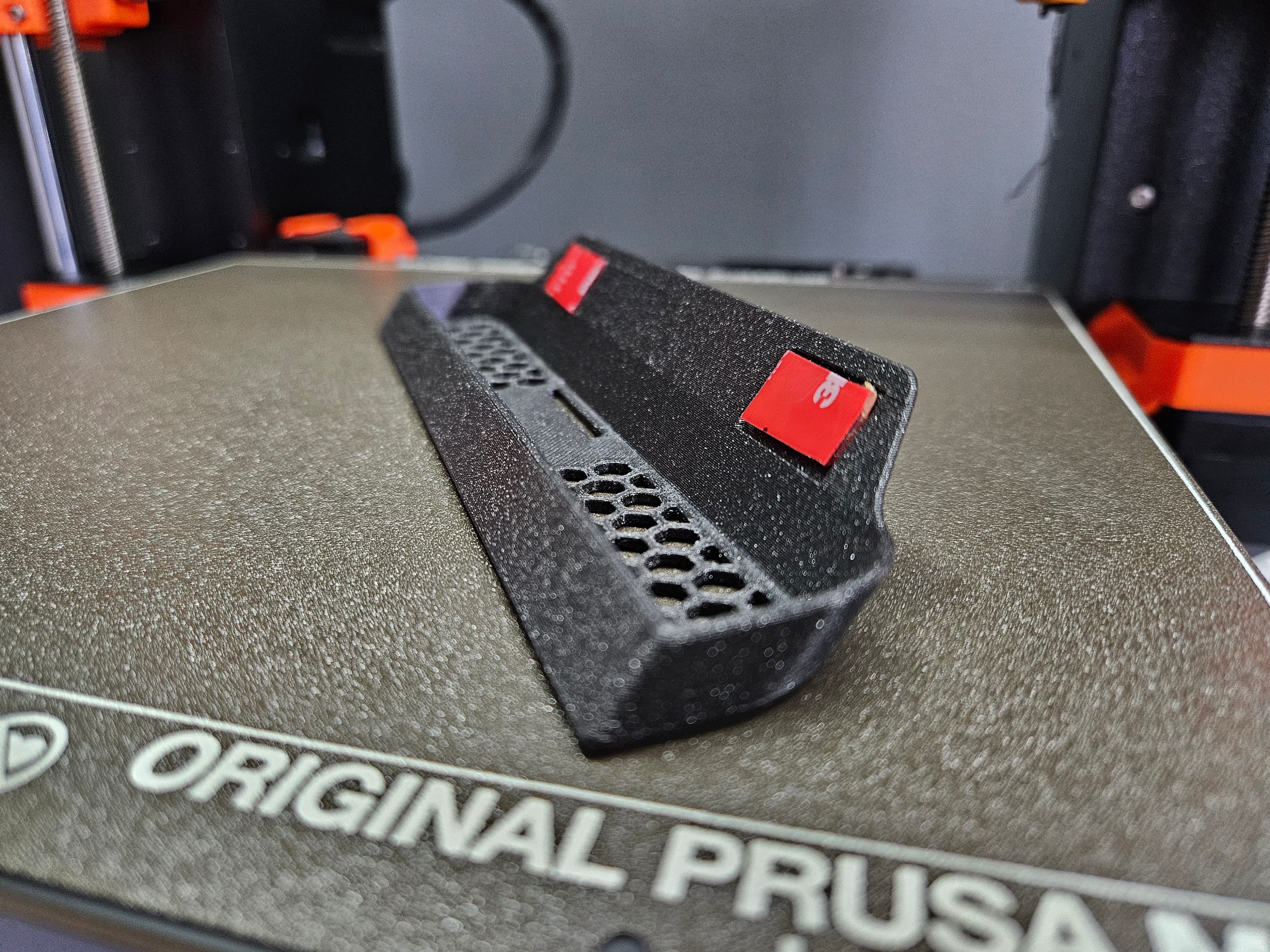

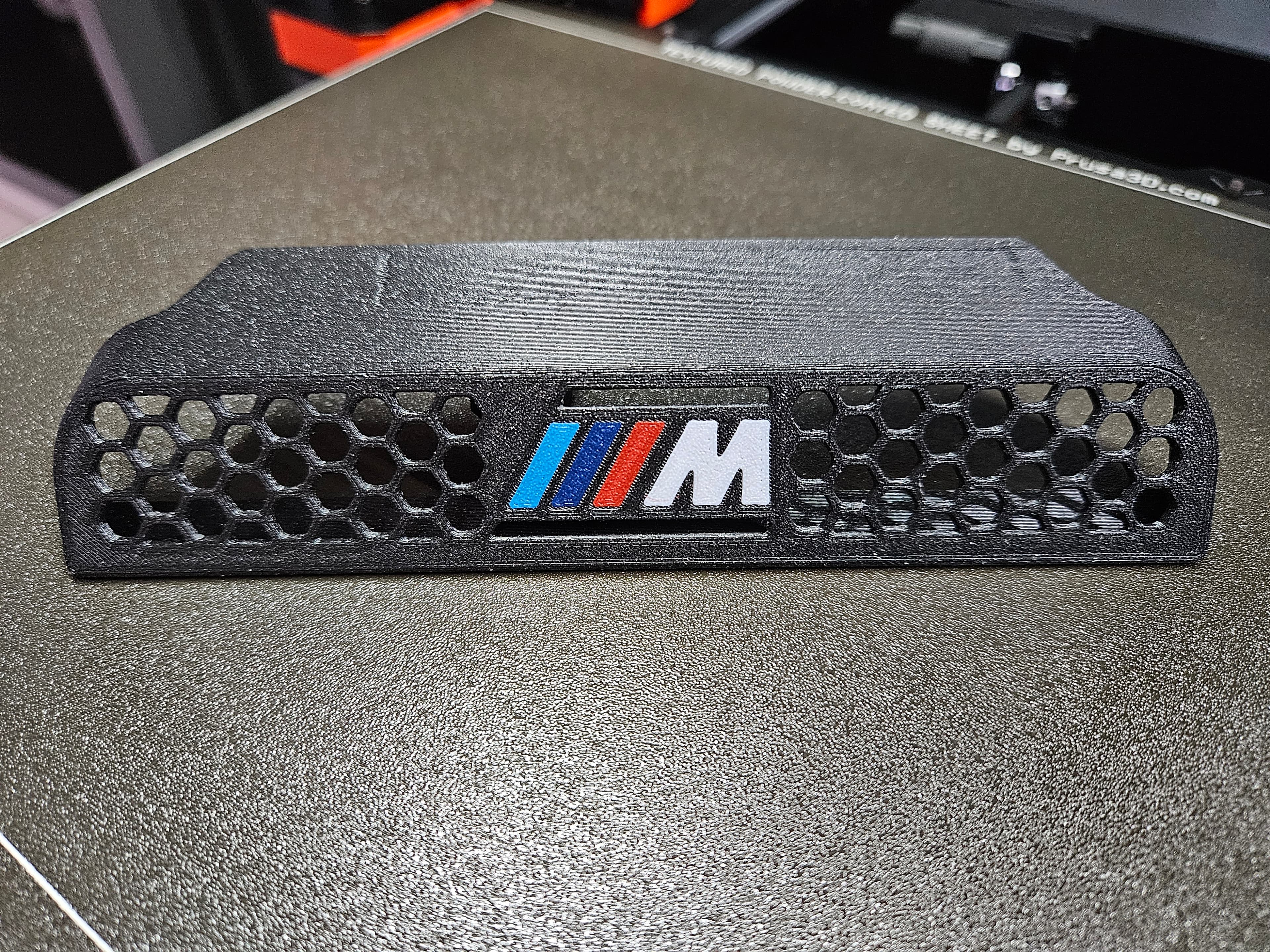

Clip-on honeycomb cover intended to stop small objects entering the open ventilation duct beneath a front seat, physically shown loose and installed by the creator on a 2024 X3 G01. This is an aftermarket guard rather than a reproduction of a separately serviced BMW child component, so no duct or floor parent number is assigned. Creator evidence is limited to model year 2024; confirm seat position, duct profile, side and production configuration, preserve airflow and seat wiring clearance, and use a cabin-heat-resistant material.
