Touring Trunk Caddy Bracket

ABS · PETGMULTI-PART2 FILESCC-BY-NCInterior

PART RECORDREF 1232

PART: Touring Trunk Caddy Bracket
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1232QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

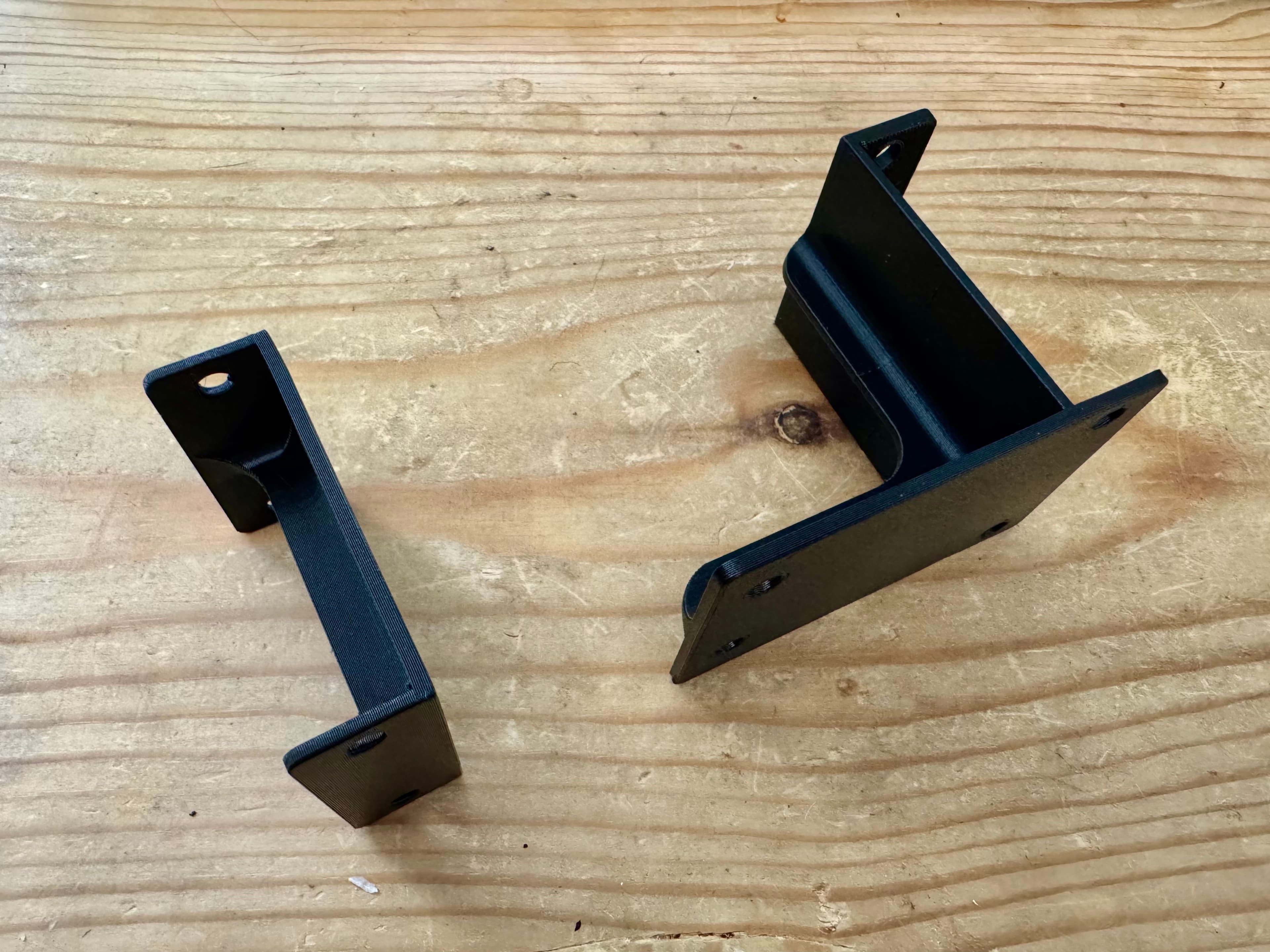

PLATE 01 / 03No caption recorded

Build sheet

MAN-1232

[01]e46 touring bracket left.3mfe46 touring bracket left.3mf.STL
[02]e46 touring bracket right.3mfe46 touring bracket right.3mf.STL
[03]Bounding box87.875 × 82.000 × 70.000 mm
[04]Volume51,412.644 mm³

Field notes

BY MICHAŁ JASKÓLSKI

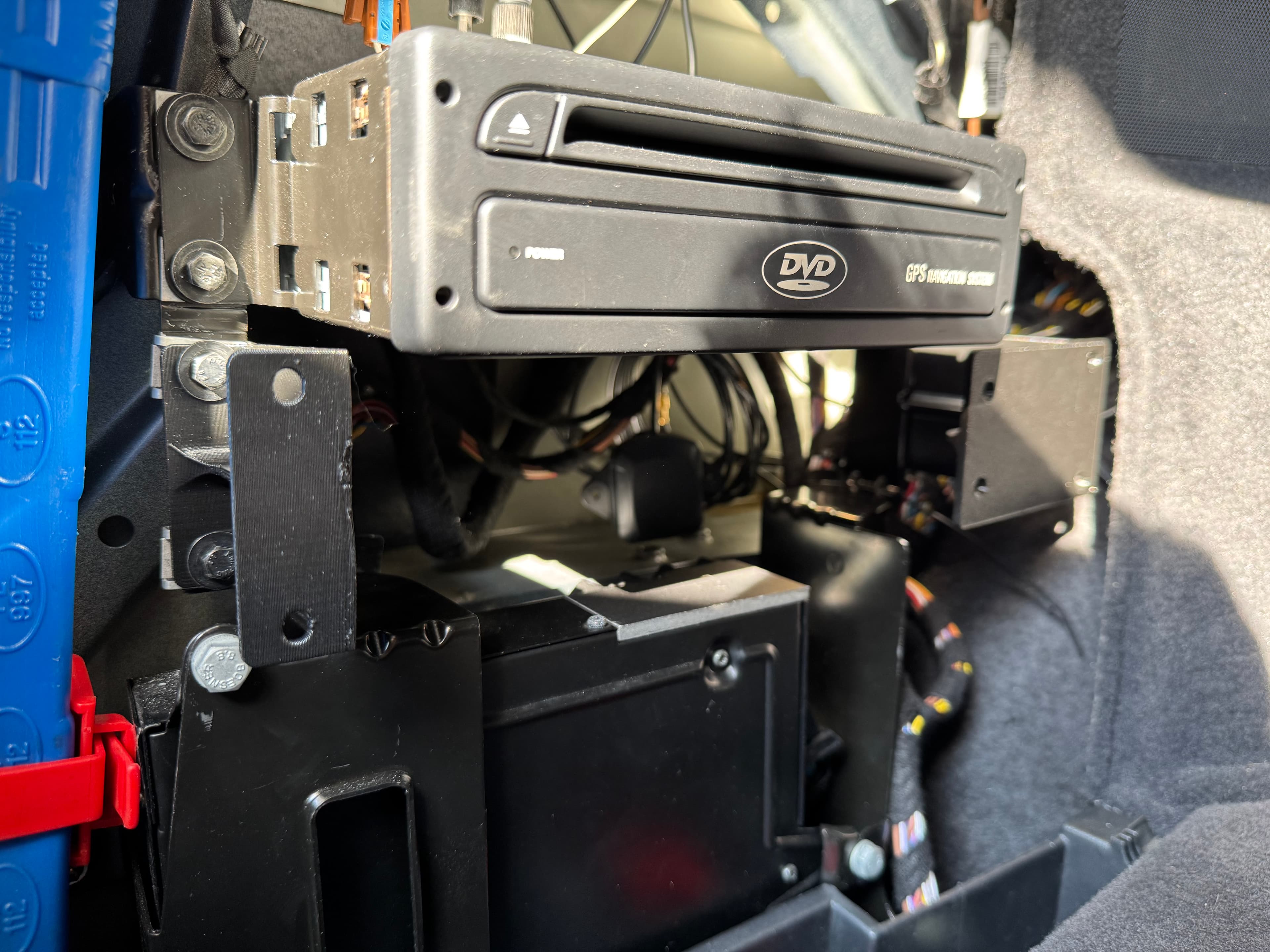

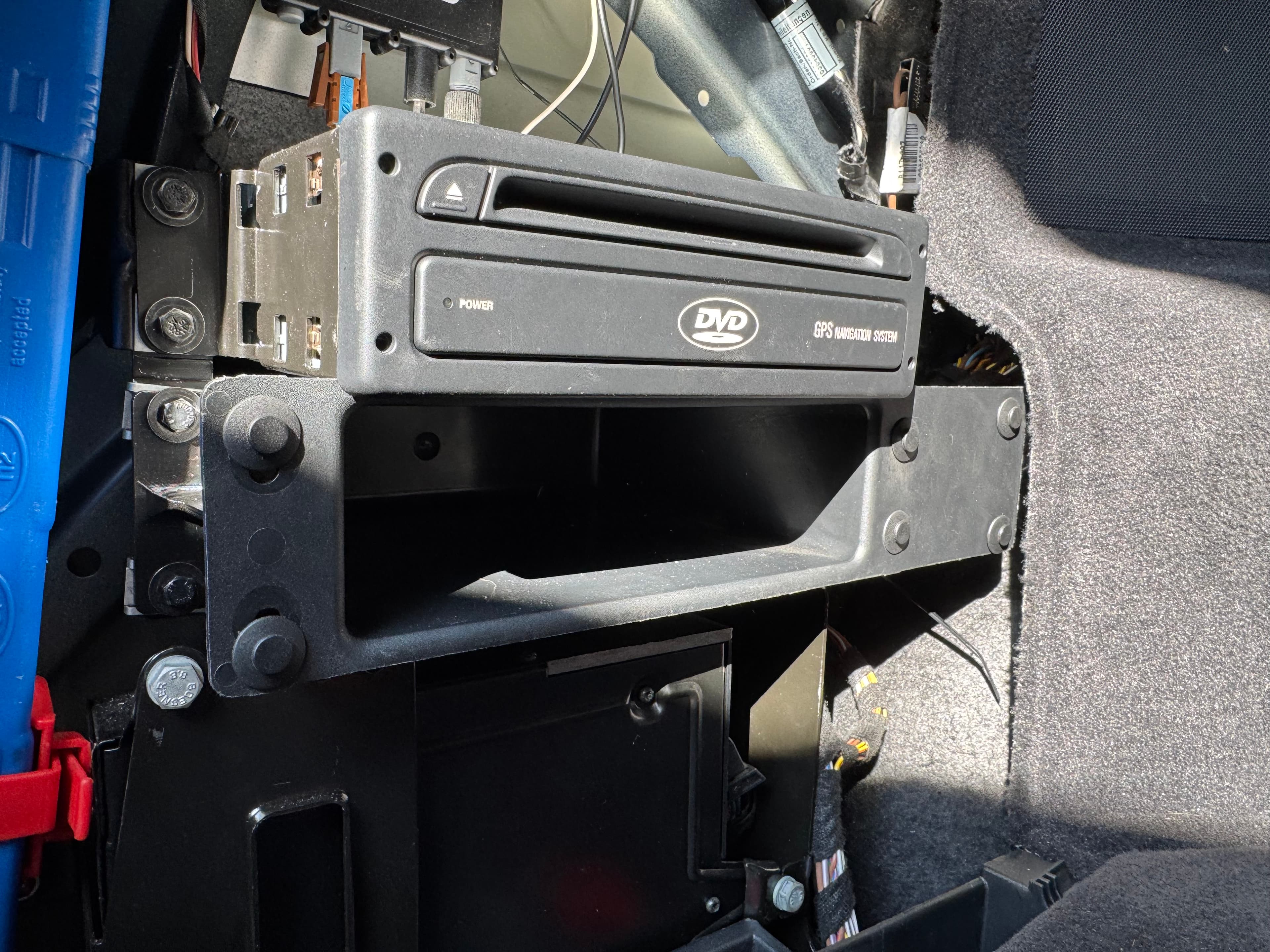

These are brackets to mount an oddments tray (part no 51478230573) that is used in sedans instead of CD changer in the trunk. The brackets allow mounting the caddy in touring as well. Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
