Switched 12-Volt Ashtray Insert

ABS · PETGMULTI-PART2 FILESCC-BY-SAInterior

PART RECORDREF 1234

PART: Switched 12-Volt Ashtray Insert
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1234QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1234

[01]e46-12vswitch-nonsmoker.stle46-12vswitch-nonsmoker.stl.STL
[02]e46-12vswitch-smoker.stle46-12vswitch-smoker.stl.STL
[03]Bounding box282.697 × 42.600 × 36.000 mm
[04]Volume122,948.861 mm³

Field notes

BY SALAD

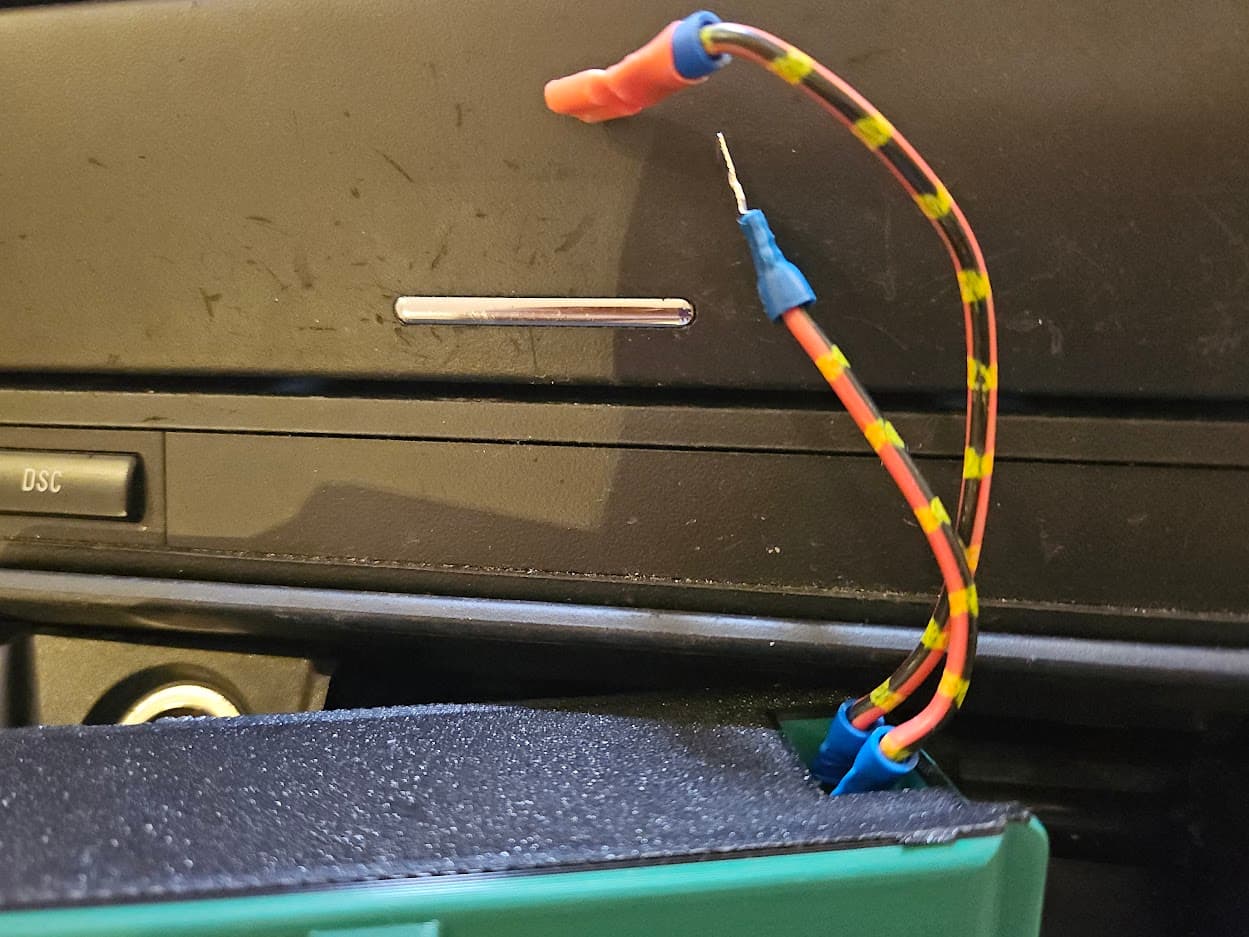

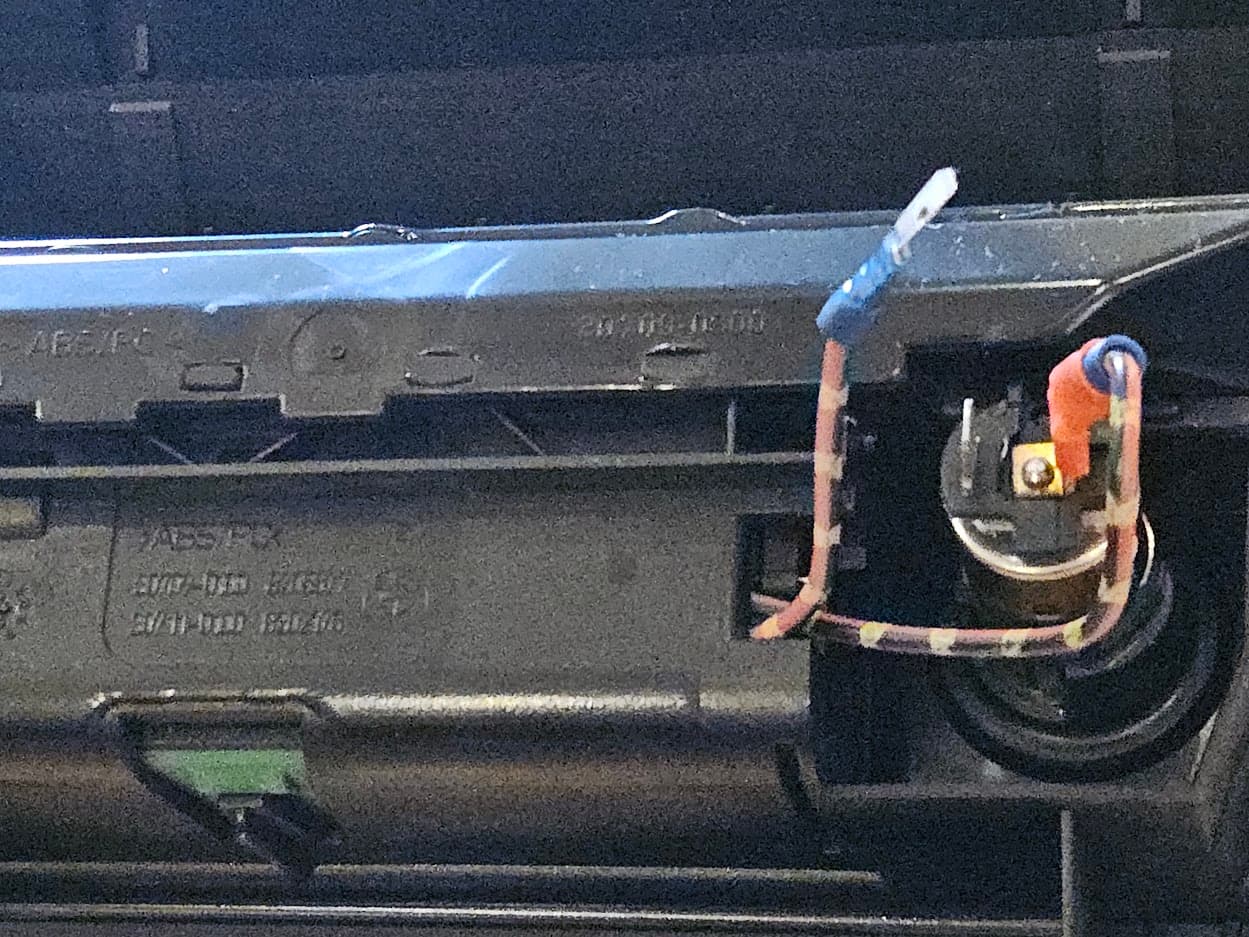

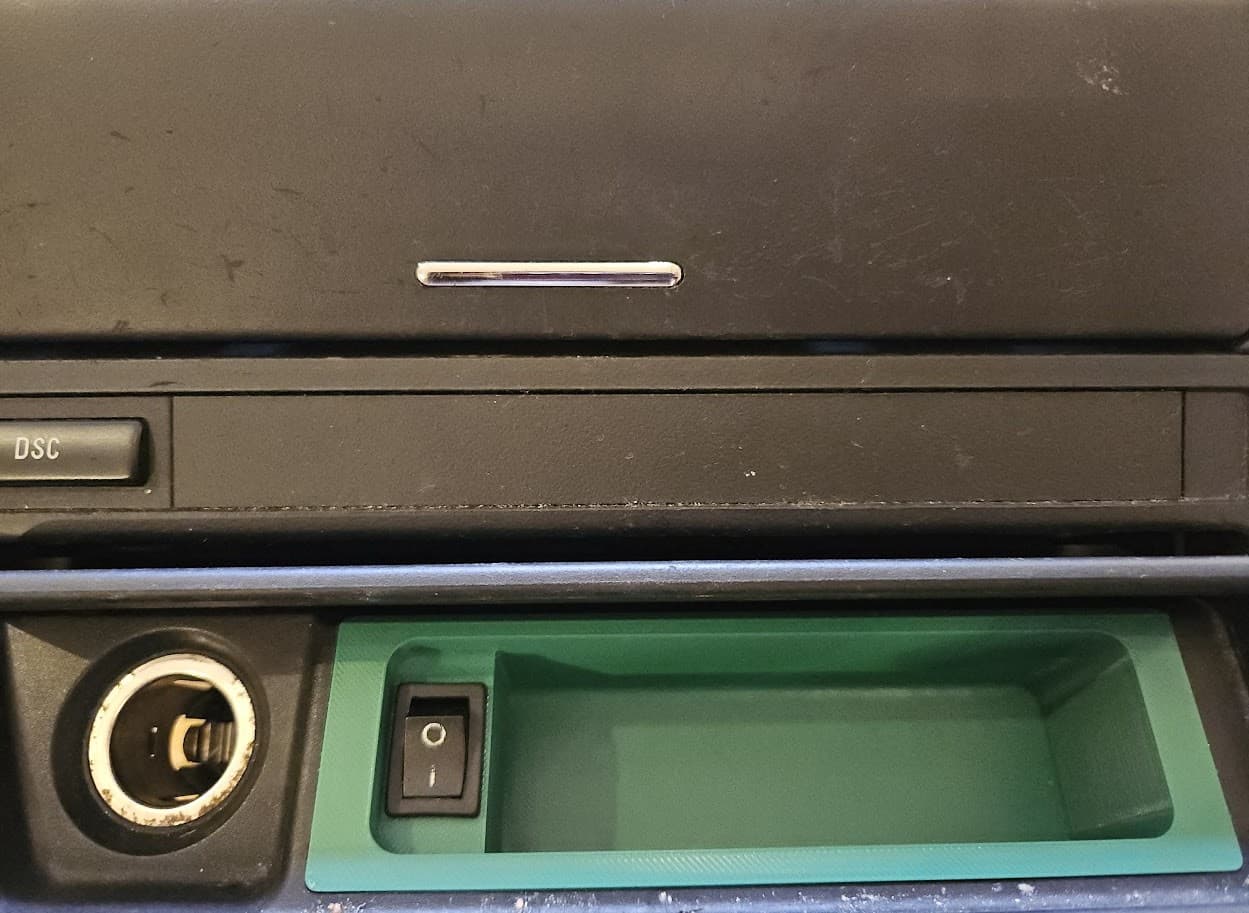

Replacement ashtray insert with space for a switch that disconnects the E46 always-live cigarette-lighter outlet. The creator documents the physical insert, wiring and installed switch. Use an automotive rated switch and protected wiring, retain correct fuse protection, insulate every terminal and confirm the ashtray closes freely.

View original source ↗
