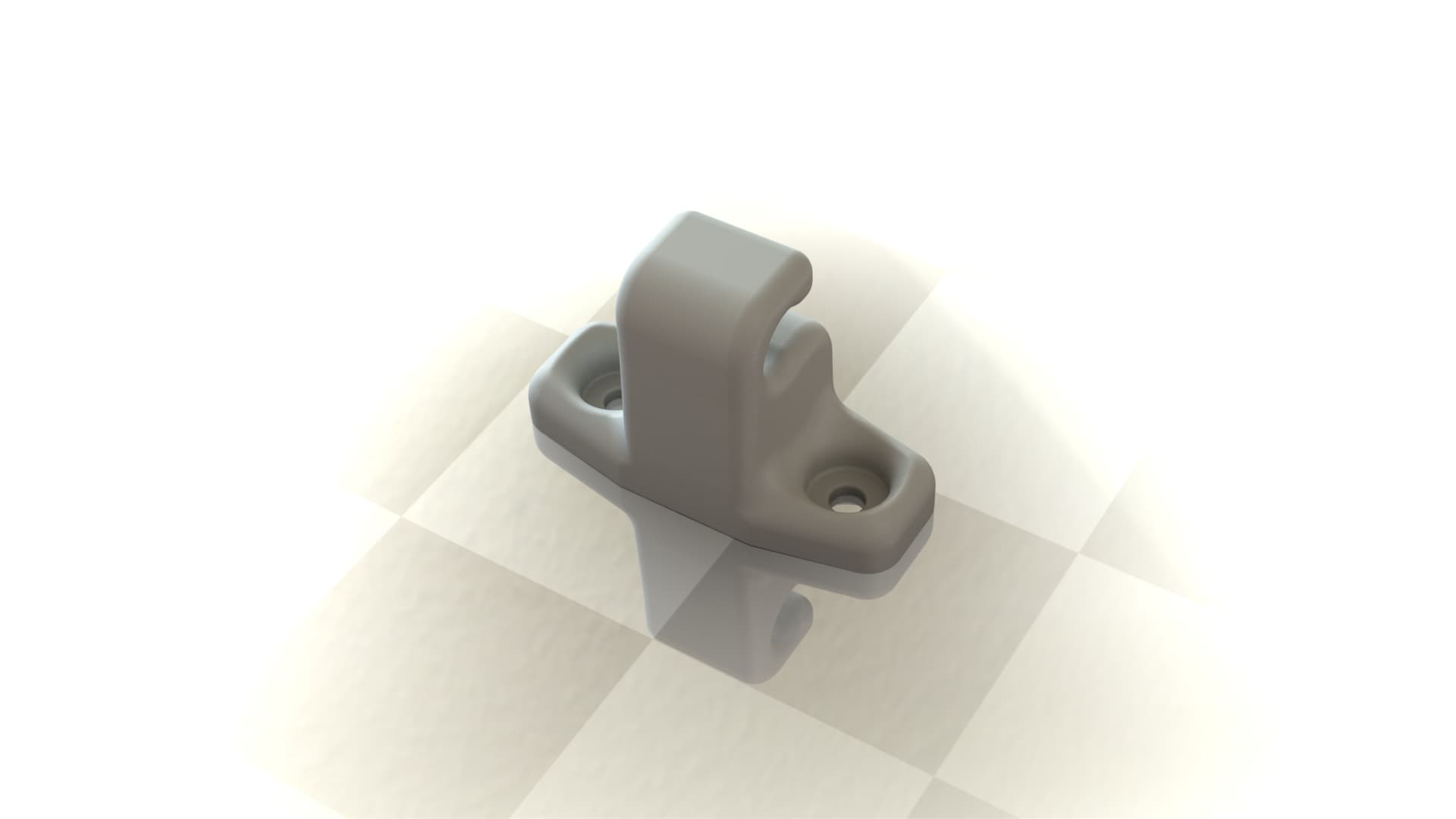

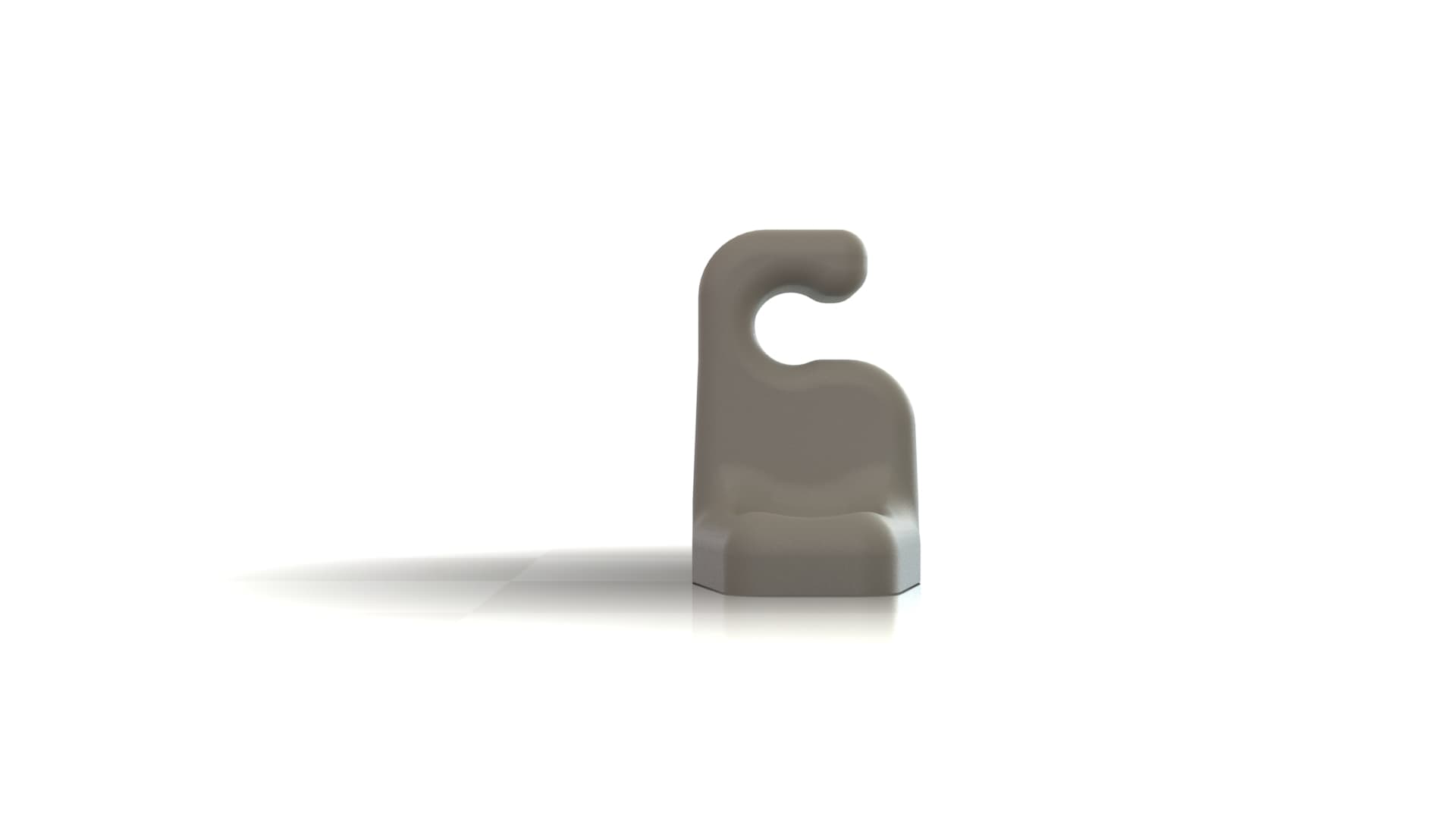

Sun Visor Clip
TPU1 FILEPublic DomainHeadlining
- PART
- Sun Visor Clip
- OEM
- —
- FITS
- 3 Series E46
Loading 3D viewer...
PART ID · BIMMER-3D / 1224QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES

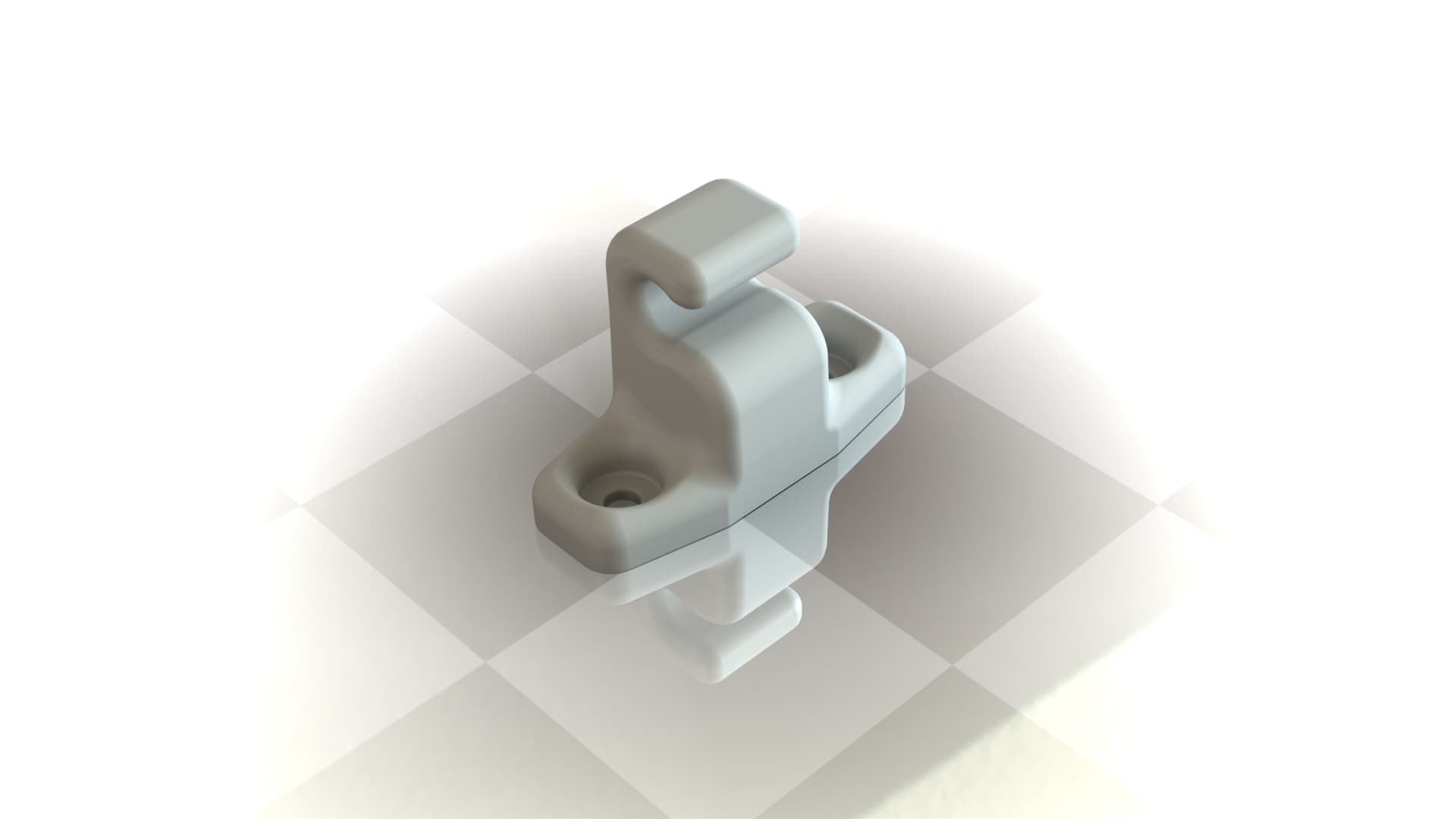

PLATE 01 / 03No caption recorded
Build sheet
MAN-1224- [01]BMW E46 Sun Visor Clip.stlBMW E46 Sun Visor Clip.stl.STL
- [02]Bounding box47.999 × 31.000 × 20.000 mm
- [03]Volume8,447.789 mm³
Field notes
BY G-WAGSPrint a cheap replacement for OEM E46 sun visor clips. I recommend printing at 100% infill to prevent splitting at layers when installed. I had good success with a 98A TPU filament at 100% infill with supports on. Just give extra support spacing with TPU and use a torch after to lightly clean up any strings. Wouldn't recommend PLA due to the high temperature that the inside of vehicles can see during the summer heat. Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
