Stowed Wind-Deflector Mount Set
ABS · PETGMULTI-PART3 FILESCC-BY-NC-SAInterior
- PART
- Stowed Wind-Deflector Mount Set
- OEM
- —
- FITS
- Z4 E85 / E86
Loading 3D viewer...
PART ID · BIMMER-3D / 1543QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
7 PLATES
PLATE 01 / 07No caption recorded
Build sheet
MAN-1543- [01]Mount.stlMount.stl.STL

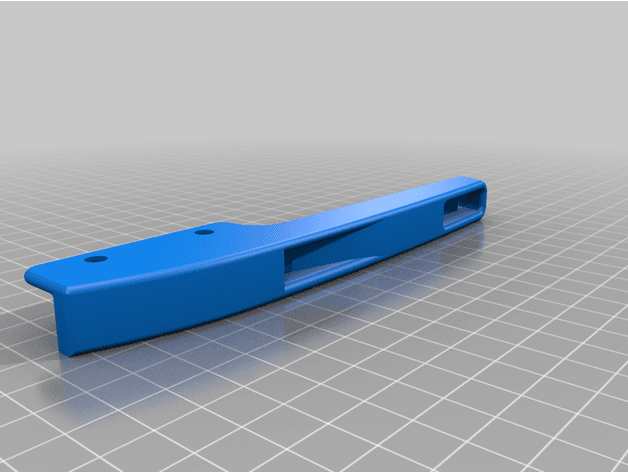

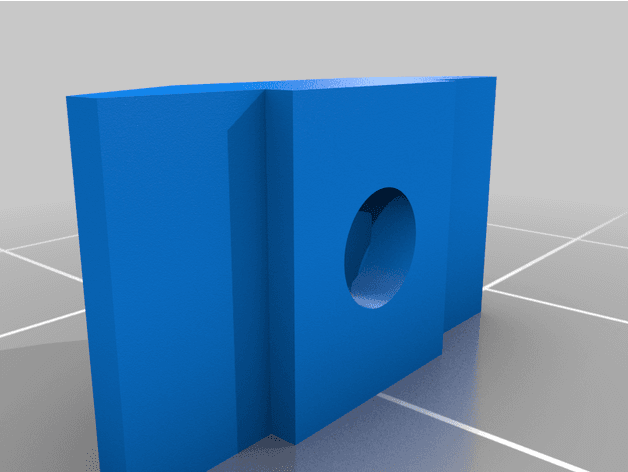

- [02]NutHolder.stlNutHolder.stl.STL

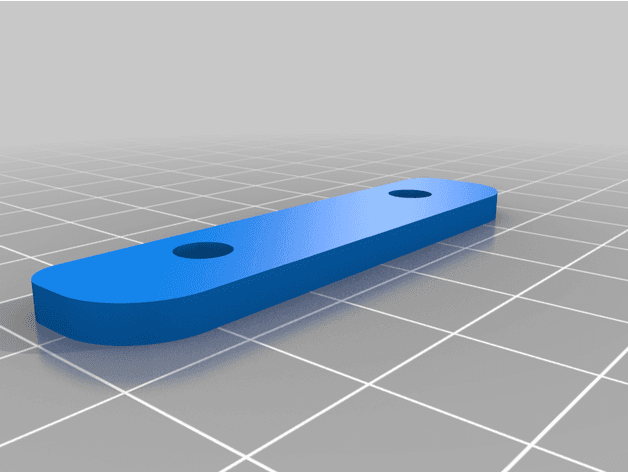

- [03]Spacer.stlSpacer.stl.STL
- [04]Bounding box237.026 × 29.489 × 14.600 mm
- [05]Volume33,670.257 mm³
Field notes

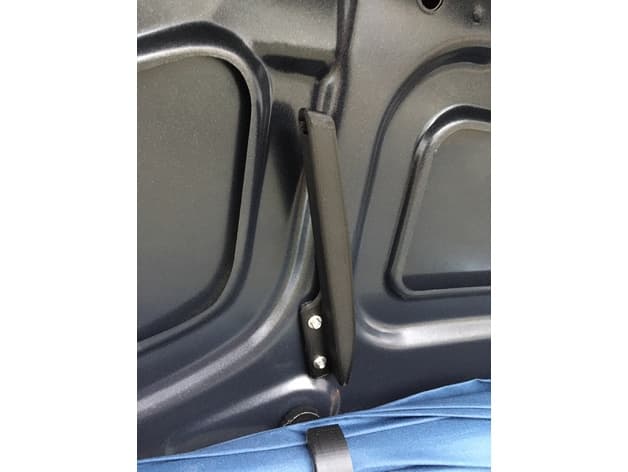

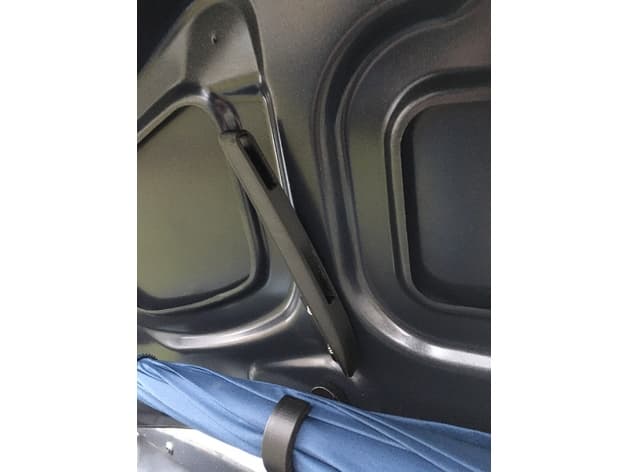

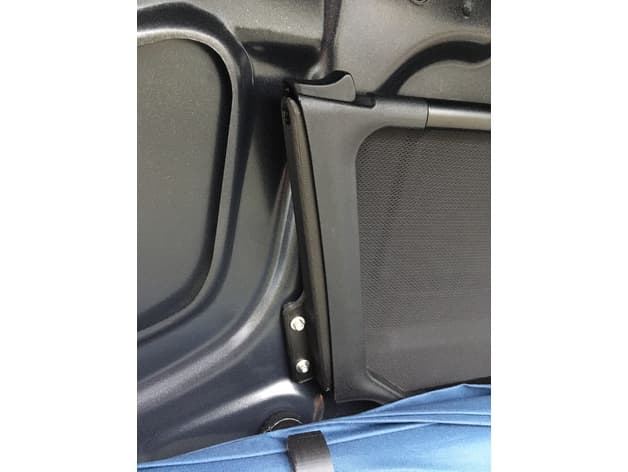

BY JEROEN JONKMAN (JEROENJONKMAN)Three-part left/right-mirrored mount set for storing the removable Roadster wind deflector behind the seats, shown installed in four physical views. The design uses four M3 nuts, M3x12 screws, spacers and nut holders. Confirm fastener retention and seat, belt, roof and rear-view clearance.
