Soft-Top Tension-Cable Grommet

TPU1 FILECC-BYHeadlining

PART RECORDREF 1526

PART: Soft-Top Tension-Cable Grommet
OEM: —
FITS: Z3 E36/7 / E36/8

Loading 3D viewer...

PART ID · BIMMER-3D / 1526QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1526

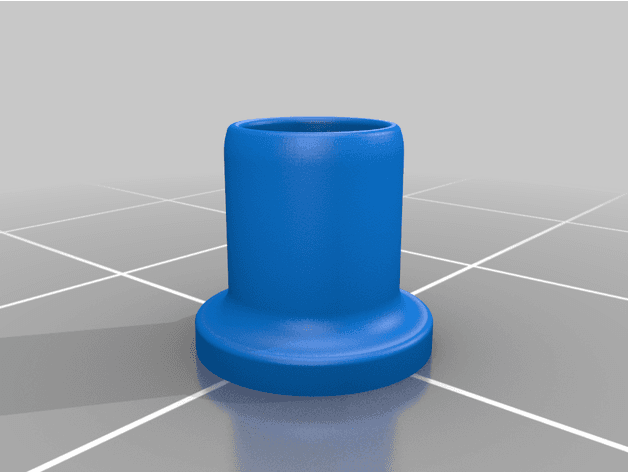

[01]Bushing.stlBushing.stl.STL
[02]Bounding box7.000 × 6.999 × 6.468 mm
[03]Volume62.868 mm³

Field notes

BY COREY VIXIE (TOOMANYDATSUNS)

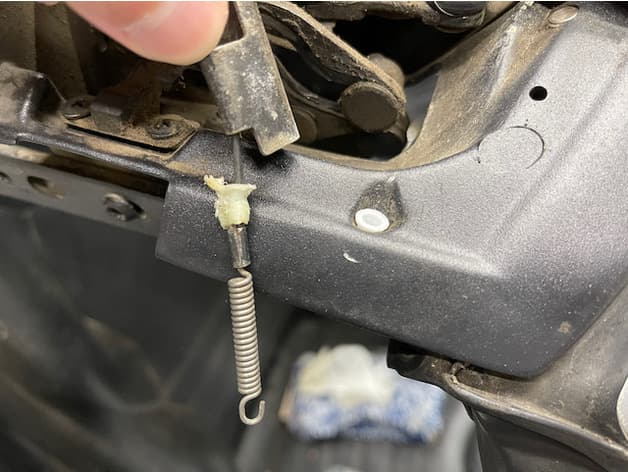

Wear grommet for the Roadster soft-top tension cable. It replaces only the damaged grommet, not the complete BMW tension-cable assembly 54318400951, so that parent number is deliberately omitted. Inspect the cable and top mechanism, and verify unrestricted roof travel before use.
