Snap-In Wireless-Charger Width Upgrade Clip

ABS · Nylon · PETG2 FILESCC-BY-NC-SAInterior
PART RECORDREF 1482
PART
Snap-In Wireless-Charger Width Upgrade Clip
OEM
FITS
i8 I12 / I15
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1482QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
9 PLATES
Plate 1 of 9
PLATE 01 / 09No caption recorded
Build sheet
MAN-1482
  • [01]BMW i8 Snap in enhancement MK2.1.3mf.STL
  • [02]BMW i8 Snap in enhancement V2.stl.STL
  • [03]Bounding box74.000 × 28.770 × 20.000 mm
  • [04]Volume11,241.881 mm³
Field notes
BY MARK QUESTION

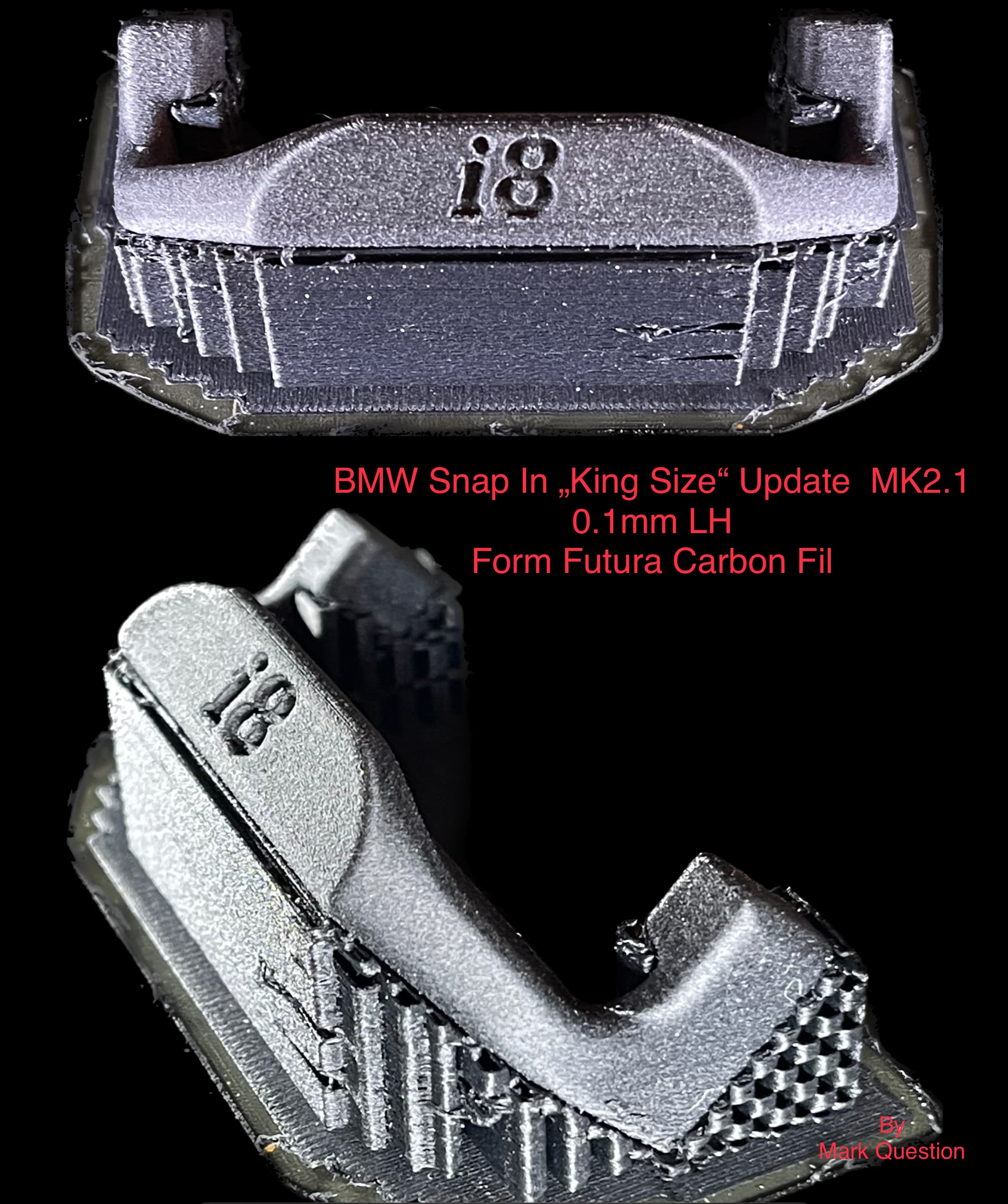

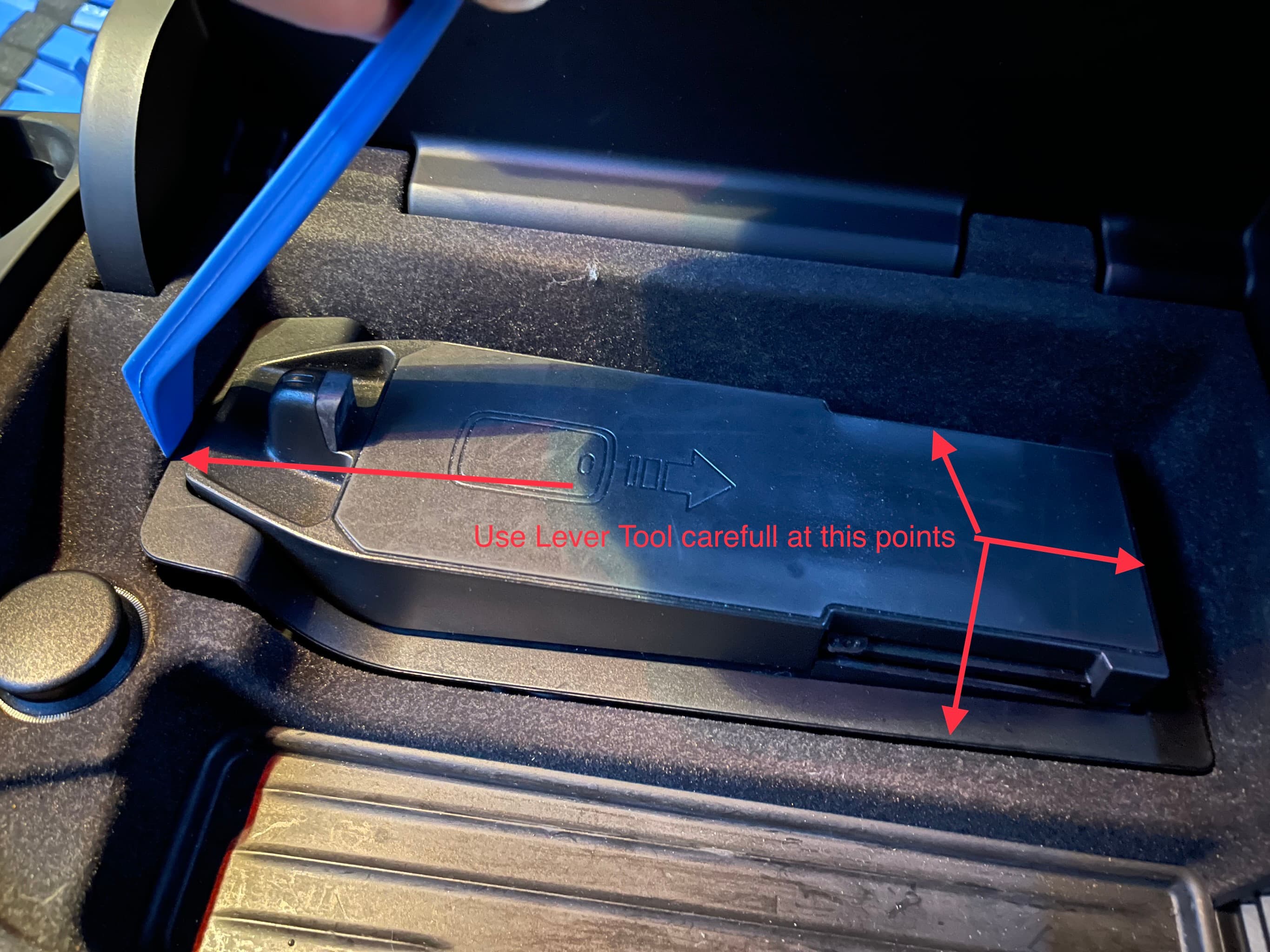

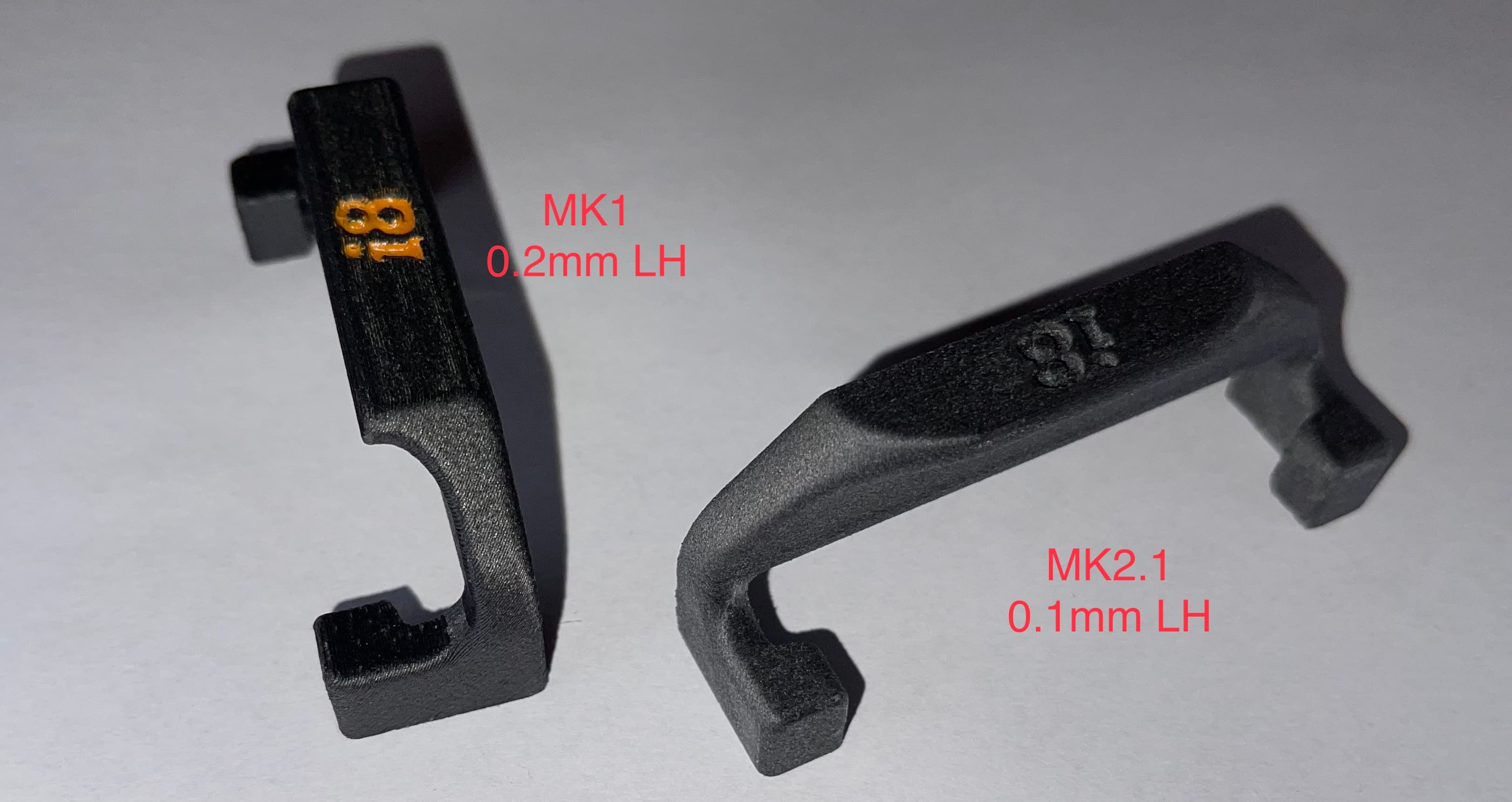

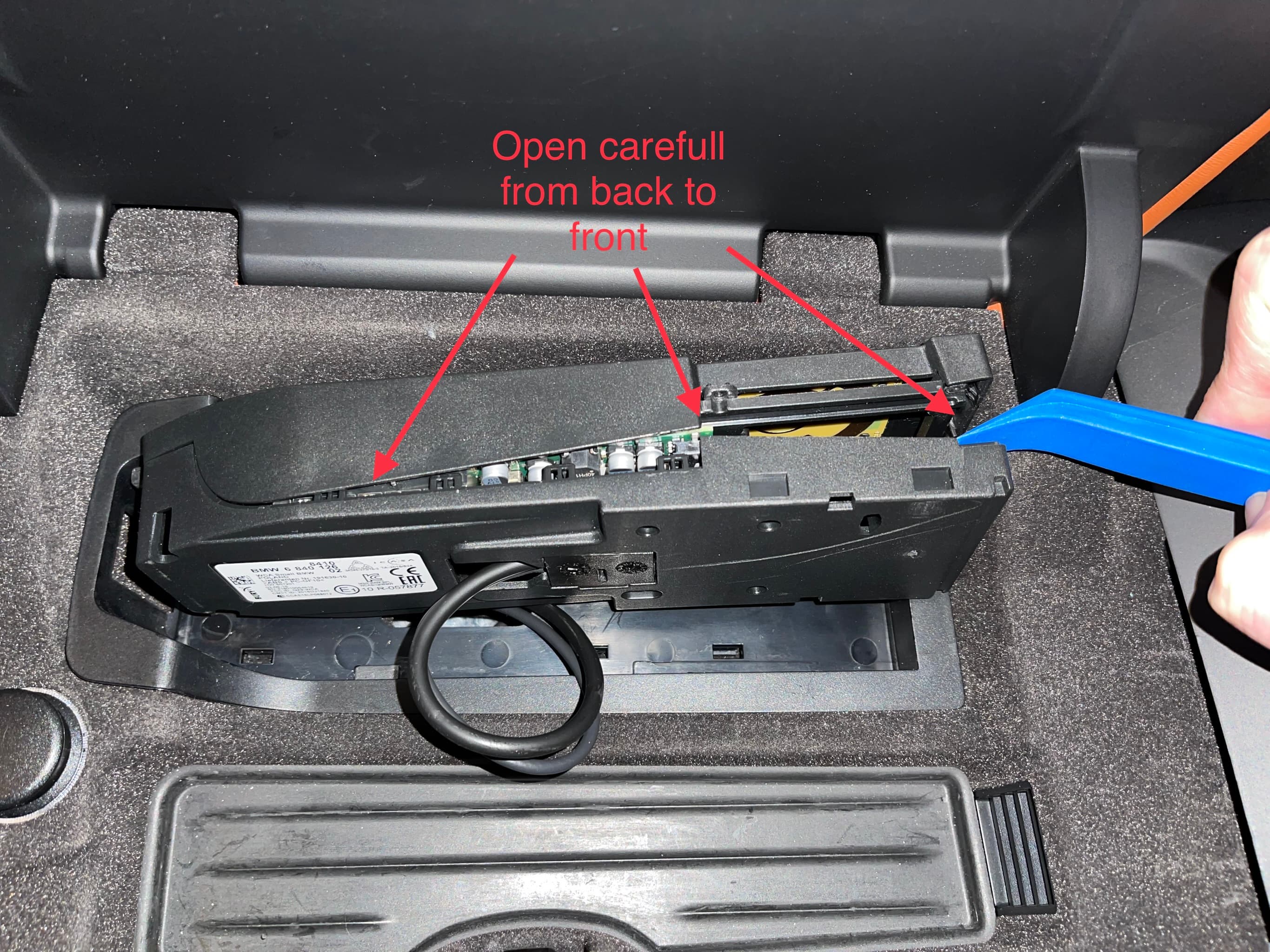

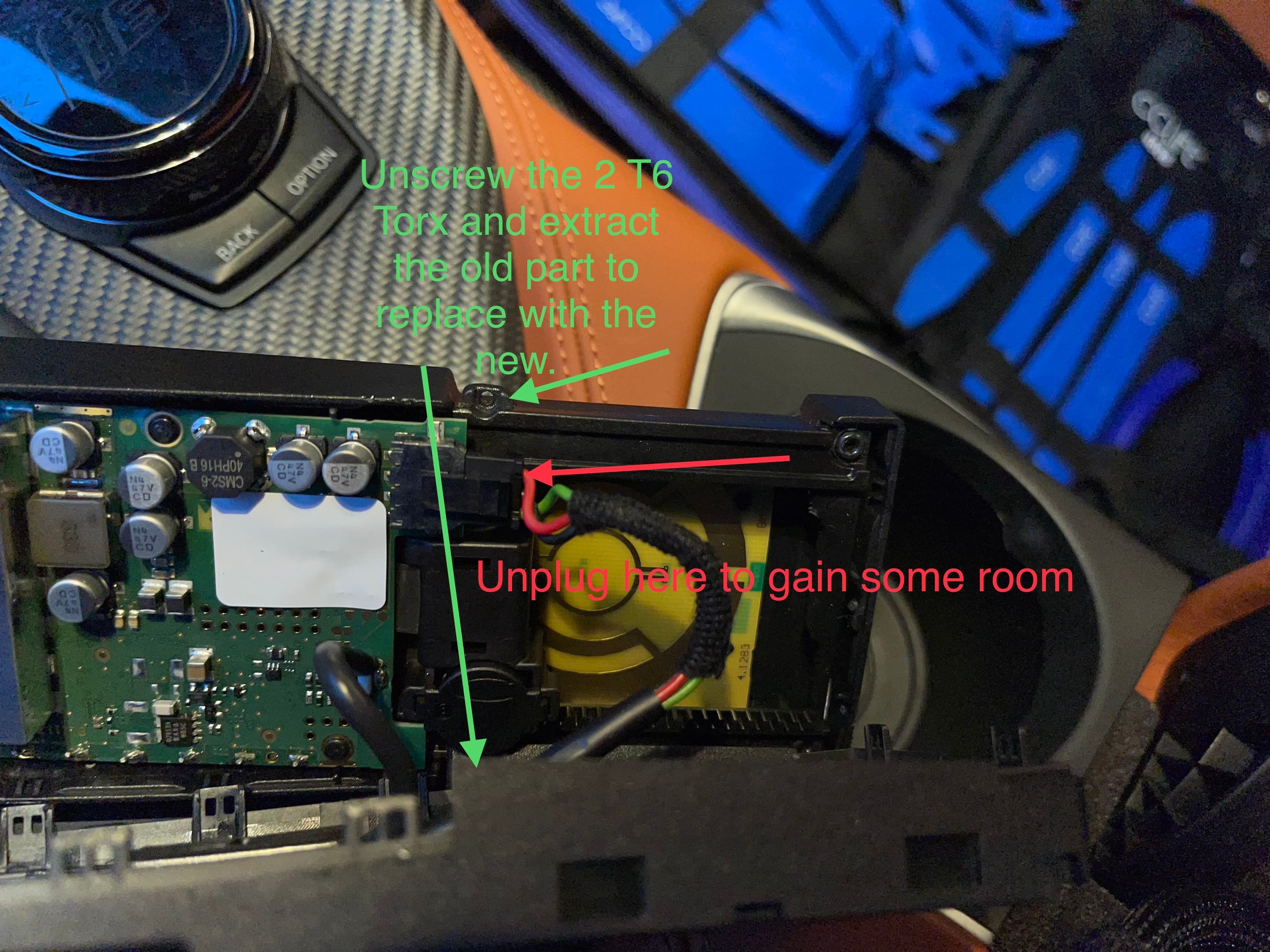

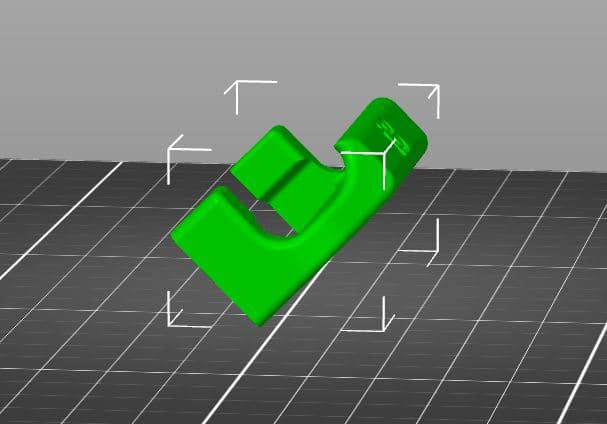

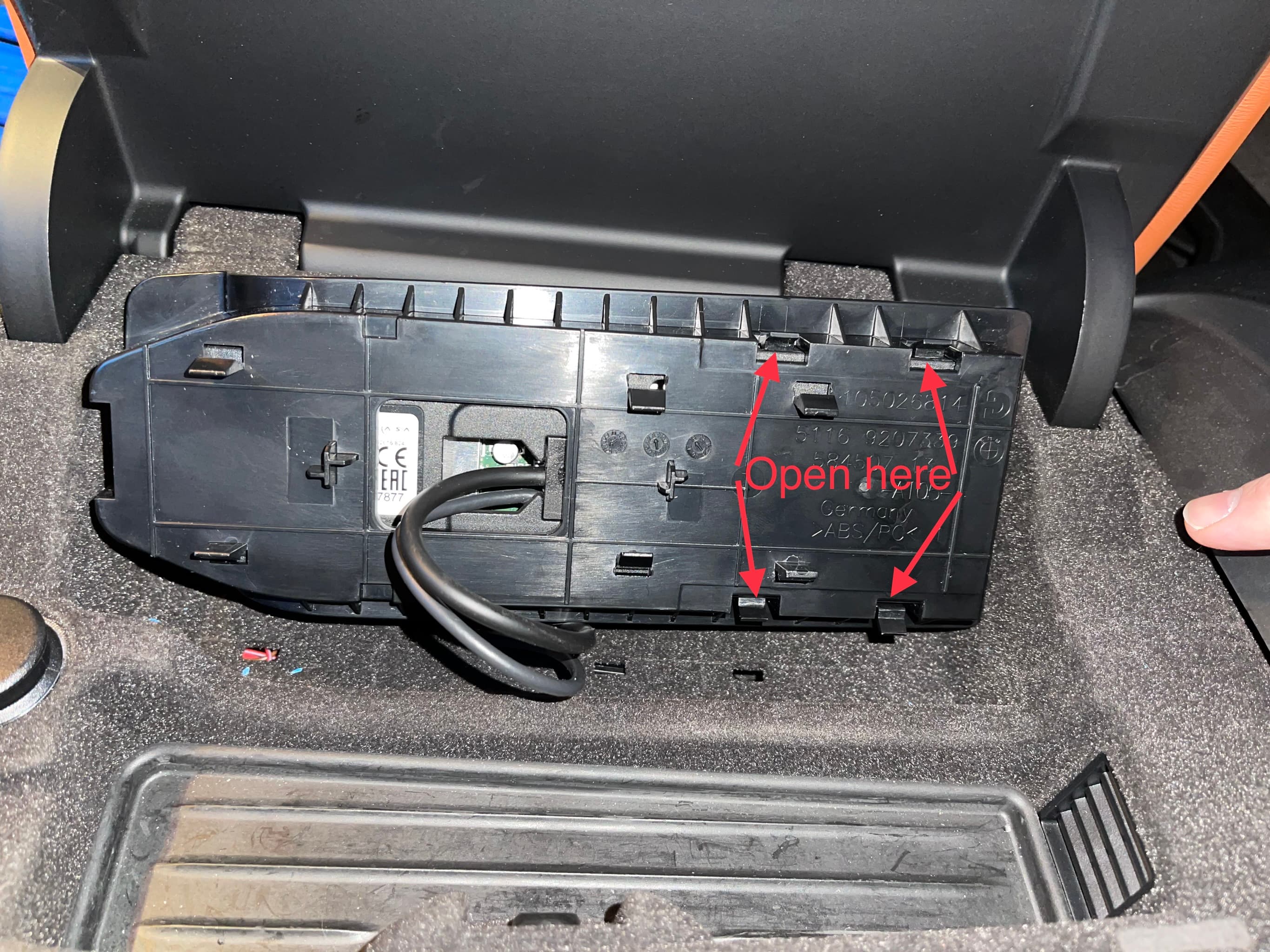

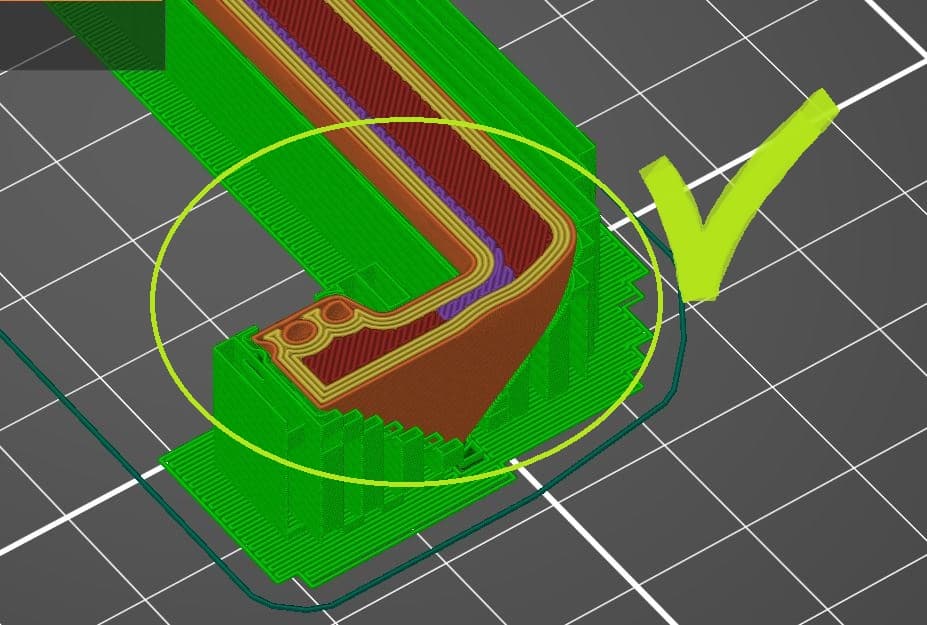

Replacement width-adjustment clip that lets larger modern phones, including phones in protective cases, fit the factory snap-in wireless charger. The creator designed, printed and installed it in a 2019 Roadster and documents removal, installation and the completed fit. Compatibility is limited to cars equipped with the pictured snap-in charger; verify the installed charger and clearances before printing. Use a heat-resistant material, print at the documented 45-degree orientation, and do not allow the phone or charger to obstruct controls or overheat.
