Sliding Rear Ashtray Cover Door

ABS · PETGMULTI-PART2 FILESCC-BY-NCInterior
PART RECORDREF 1203
PART
Sliding Rear Ashtray Cover Door
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1203QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES

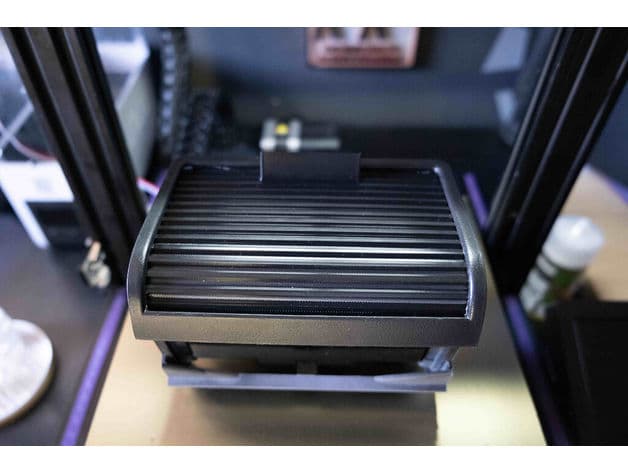

Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1203

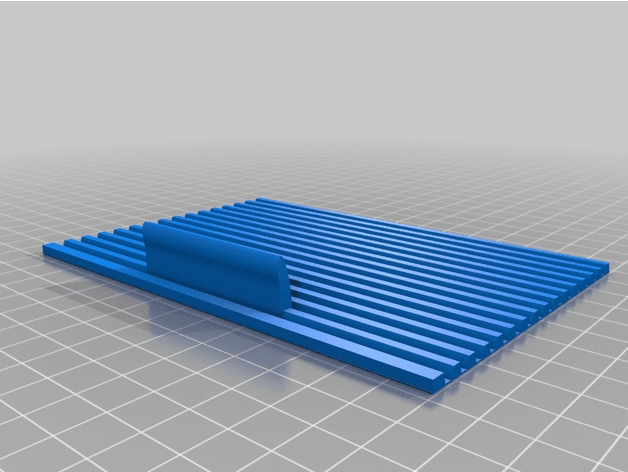

  • [01]e46_ashtray_cover.stl.STL

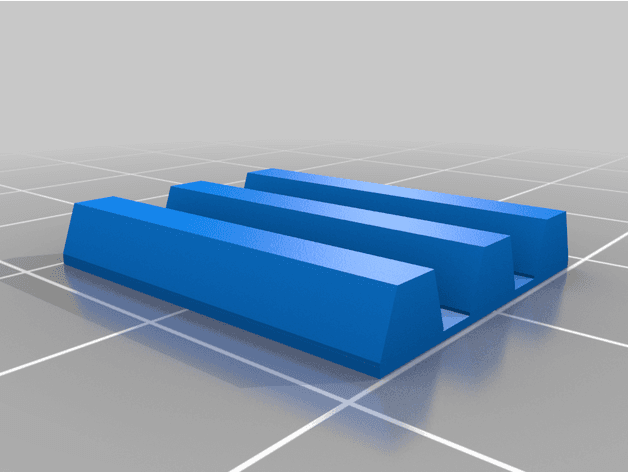

  • [02]test_piece.stl.STL
  • [03]Bounding box156.909 × 94.621 × 16.037 mm
  • [04]Volume26,425.644 mm³
Field notes
BY STEEZE 3D (STEEZE_3D)

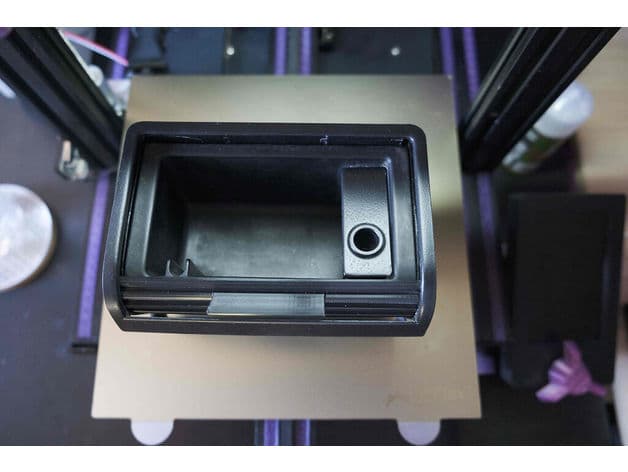

Hello this is an alternative sliding cover for rear console ashtray in an e46. Both my brothers and my e46 were missing the covers and its a bit of a pricey piece to replace for what it is. I printed in PLA+ with layer lines running against the slats to prevent breakage. Id recommend something like PETG but so far so good in our cars! Included is a 10min test piece file to check fitment and flexibility of your material. You can bend bottom of the cover gently to the curve of the slot before inserting first time to make it go in smooth. If the top of the cover with handle isnt flush when first installed you can bend it up a bit until its flat. I did what I had to do make it work with PLA+ so Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
