Single/Dual Wireless-Charging Tray

ABS · TPU4 FILESCC-BY-NC-SAElectrical
PART RECORDREF 1442
PART
Single/Dual Wireless-Charging Tray
OEM
FITS
X1 U11
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1442QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1442
  • [01]BMW_X1_Dual_Charging_Pad_full.stl.STL
  • [02]BMW_X1_Dual_Charging_Pad_short.stl.STL
  • [03]BMW_X1_Single_Charging_Pad_full.stl.STL
  • [04]BMW_X1_Single_Charging_Pad_short.stl.STL
  • [05]Bounding box199.472 × 198.000 × 6.500 mm
  • [06]Volume195,329.434 mm³
Field notes
BY GEORGE MANESSIOTIS

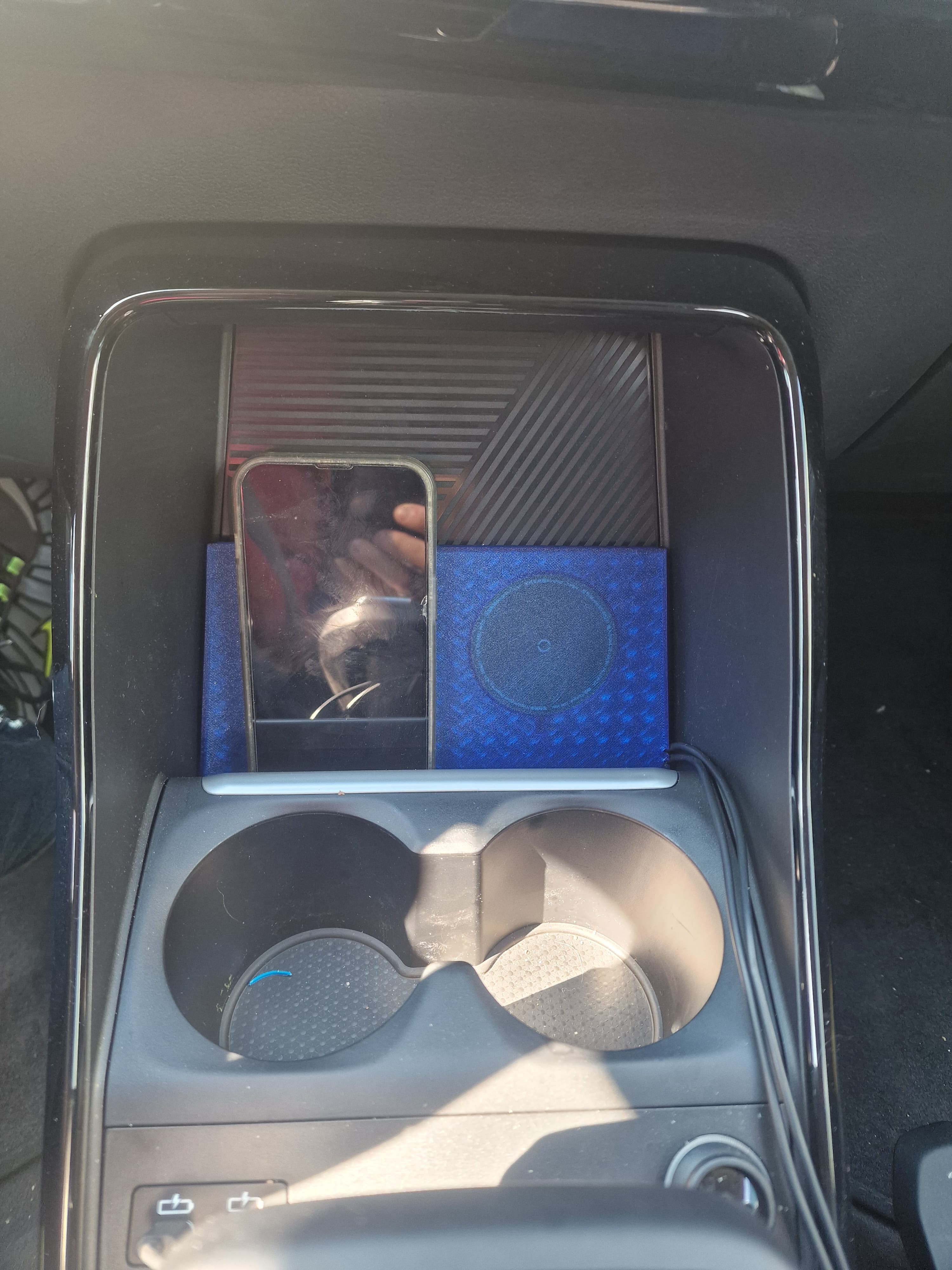

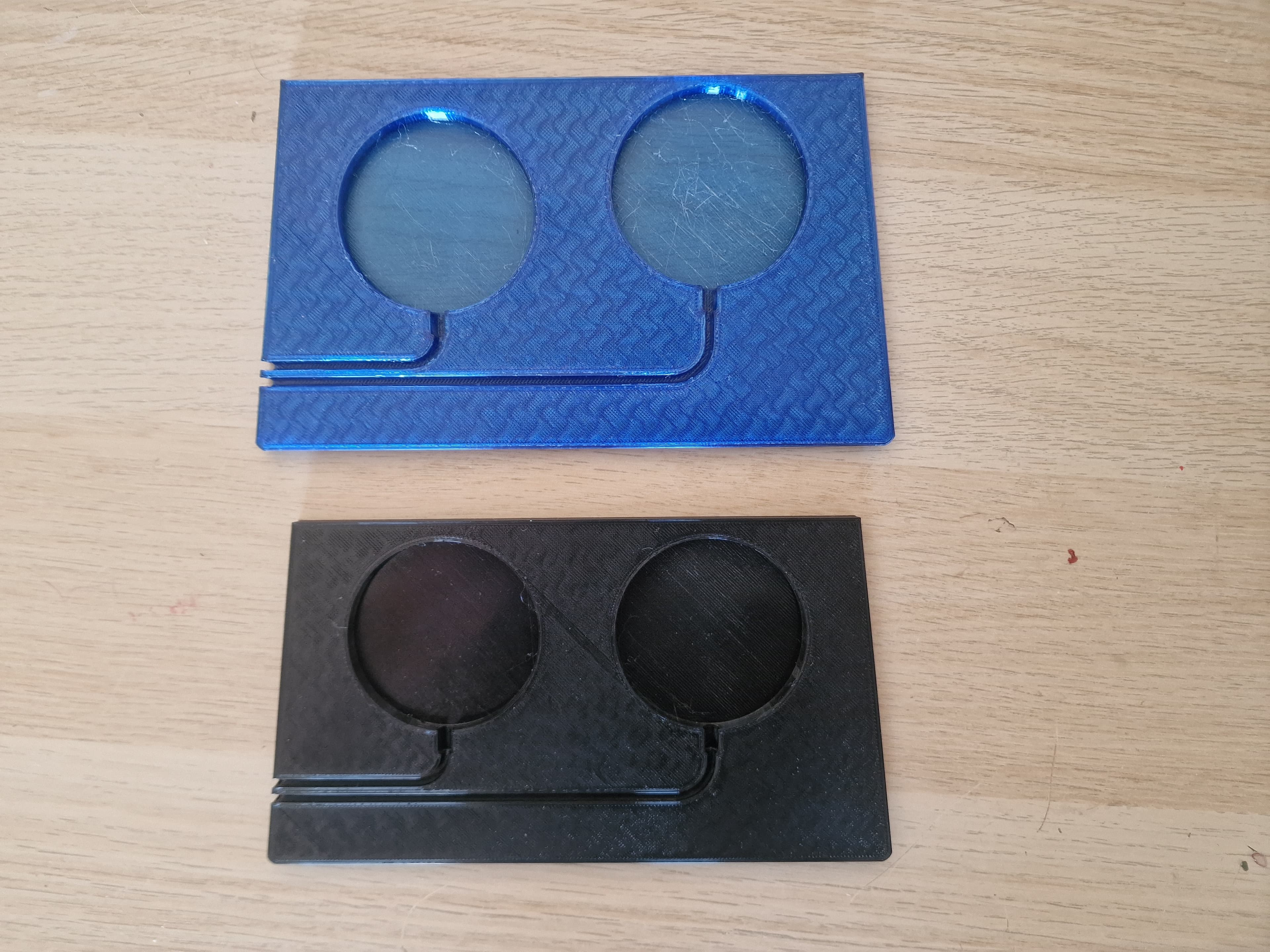

Four one-piece tray variants for fitting one or two Baseus Simple Mini3 15 W wireless chargers in the 2023 X1 center-console shelf: full and short versions for either a single charger or a pair. The creator dimensioned the tray to the vehicle, physically printed it in PETG and 85A TPU, shows installed trays with phones, and reports testing with multiple iPhone 6.1-inch and Galaxy S models. Chargers insert from below and their cables route to the right-side USB-C ports. This is aftermarket accessory geometry, so no console or charging-module parent number is assigned. Do not use PLA; confirm cable strain relief, charging temperature, phone retention and unobstructed controls before driving.
