Shift Boot Bracket

ABS · PETGMULTI-PART2 FILESCC-BY-NCInterior
PART RECORDREF 1216
PART
Shift Boot Bracket
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1216QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES

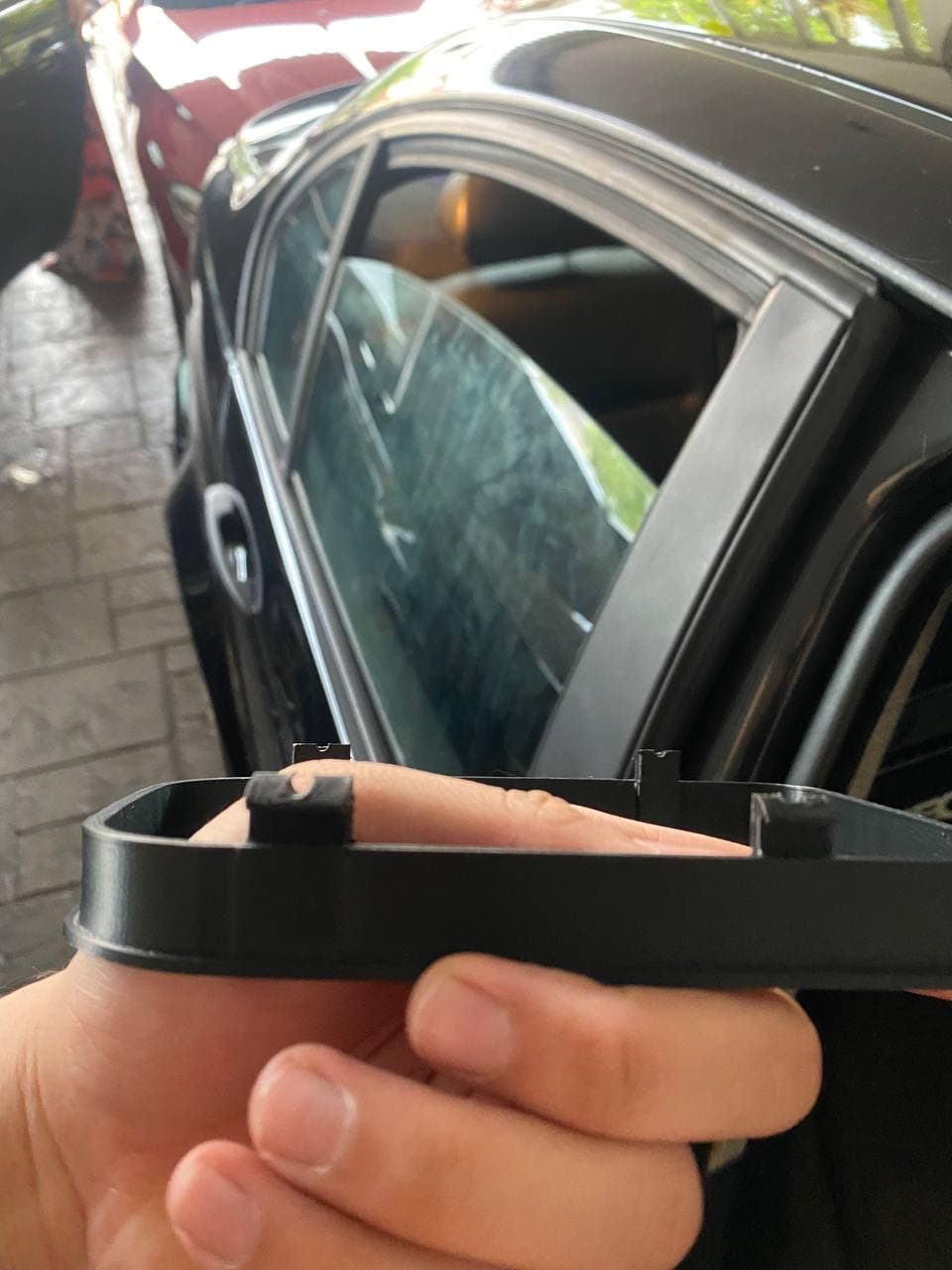

Plate 1 of 6
PLATE 01 / 06No caption recorded
Build sheet
MAN-1216
  • [01]e46_bracket_lhd.stl.STL
  • [02]e46_bracket_rhd.stl.STL
  • [03]Bounding box169.292 × 135.426 × 52.460 mm
  • [04]Volume65,056.272 mm³
Field notes
BY FIZULNIZAM

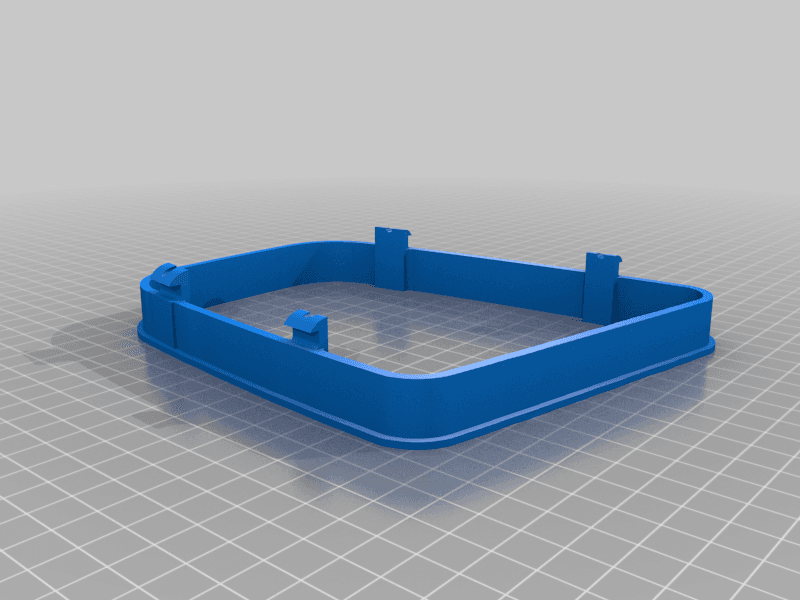

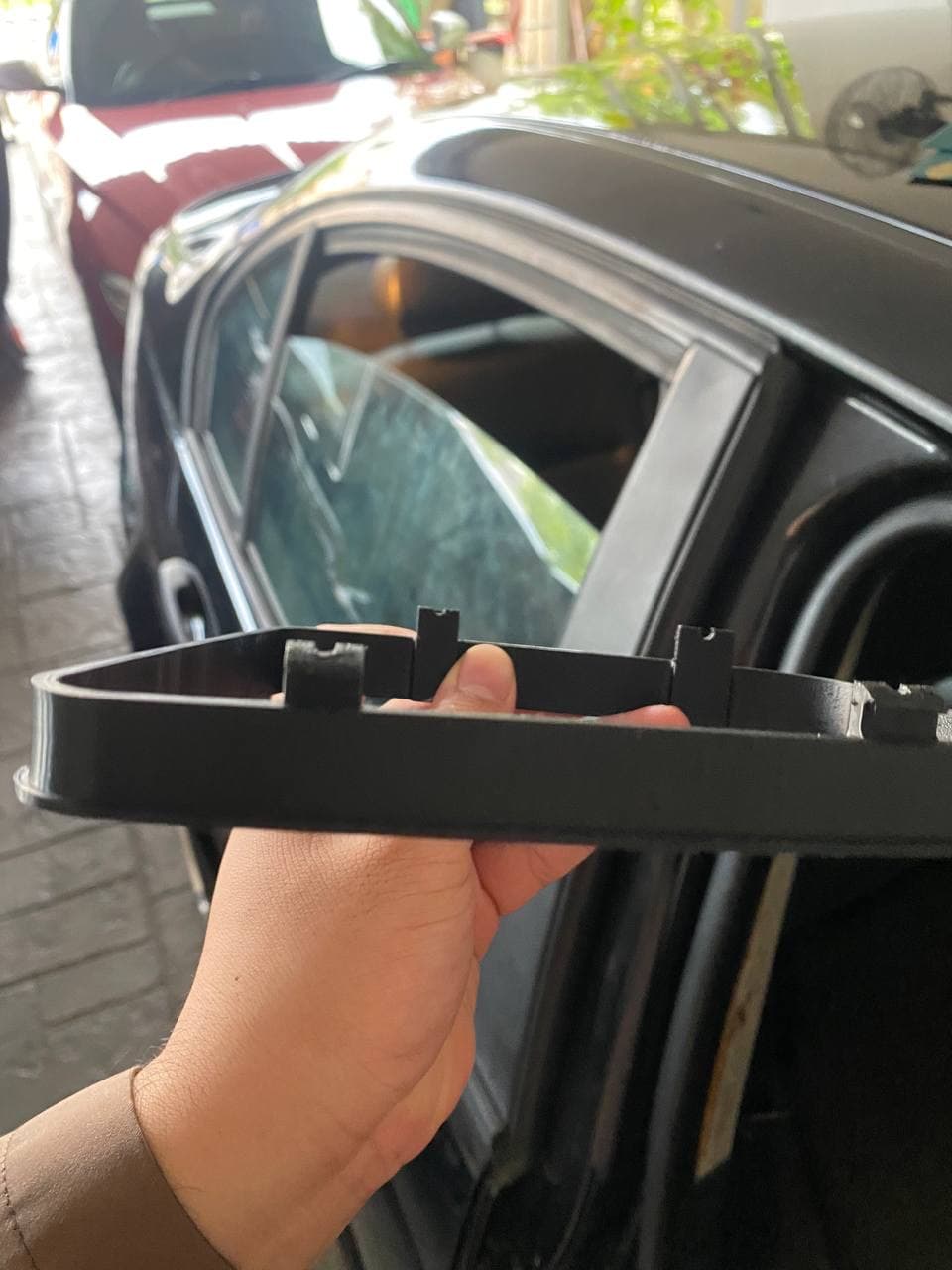

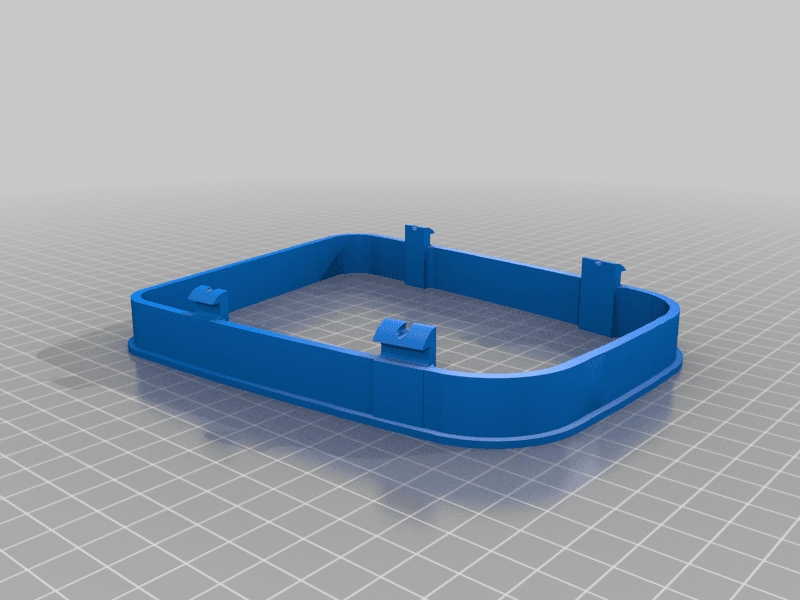

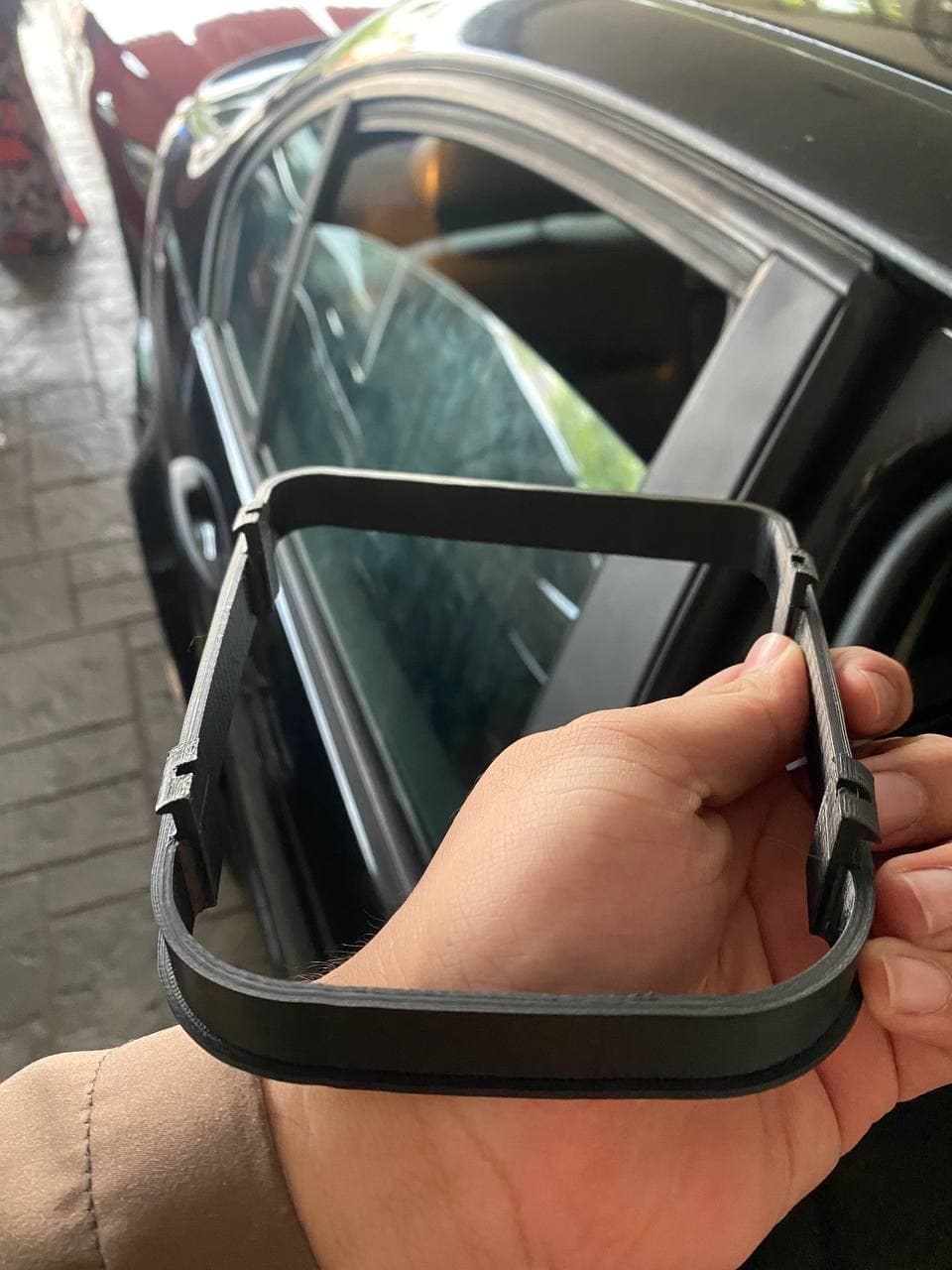

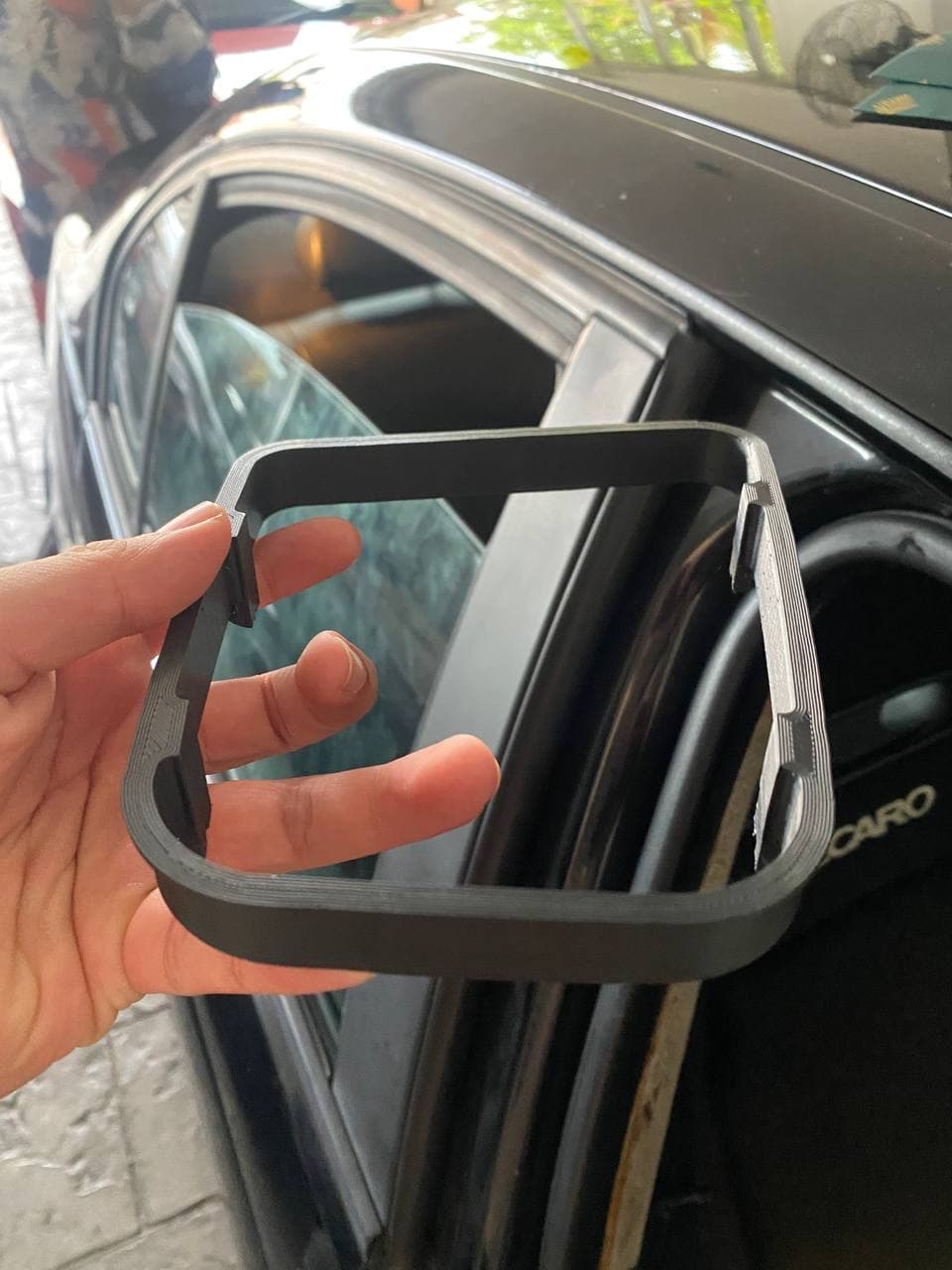

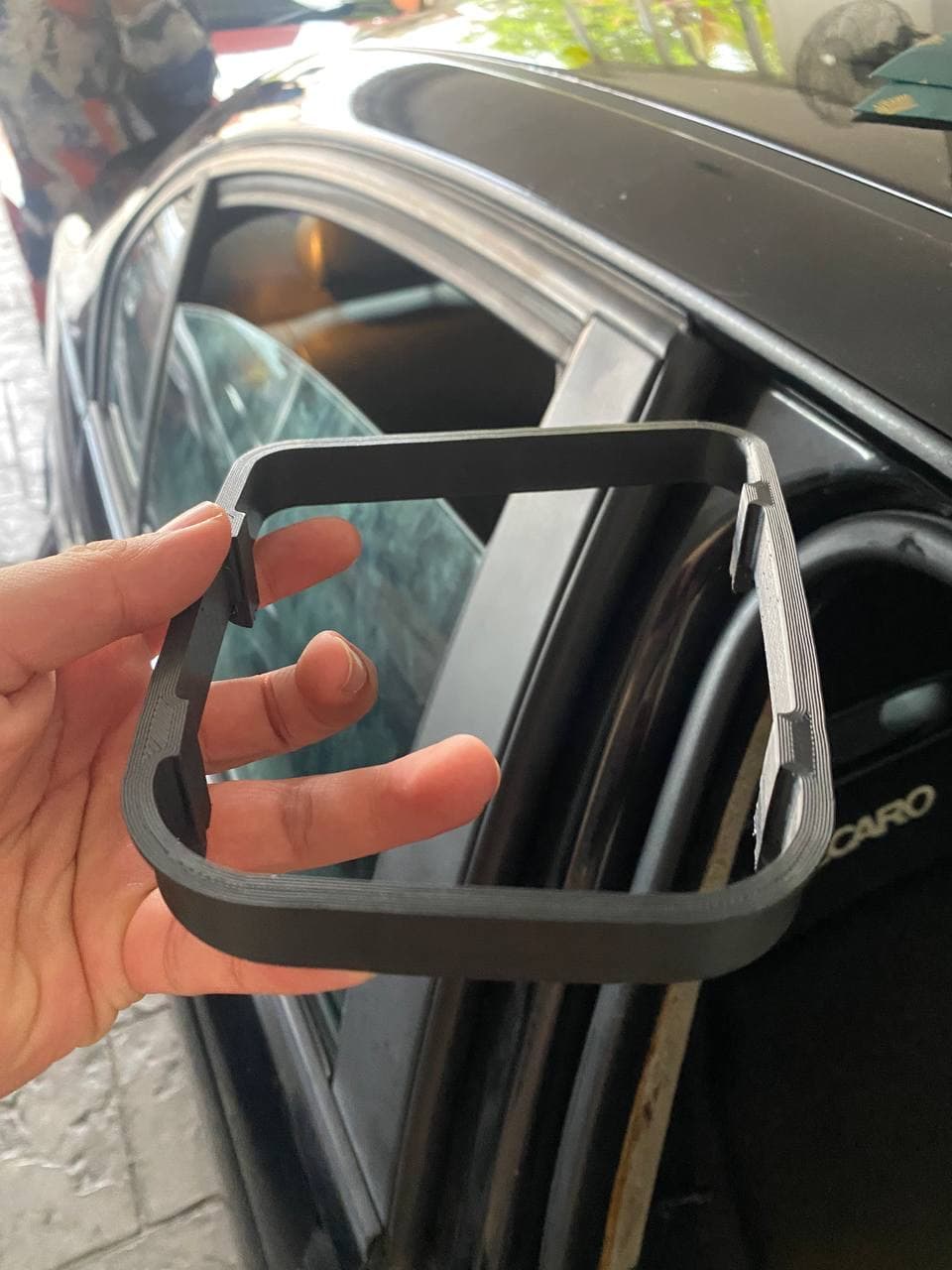

This is a remixed version of the original thing posted here on Thingiverse, which is a shift boot bracket for the BMW E46 3 Series. It has better strength as with the added fillets and the clips are thickened as well as enlarged for better fitment. It will fit both RHD and LHD BMW E46 and will provide tight fitment. If you are planning to install with thick Alcantara leather boot, then it will be wise to scale it down a bit to 96-97% scale but if you are just planning to use faux leather boot, then at 100% scale it will be just fine. Use custom support blockers to increase the infill density of the clips to 99% for added strength. Print it in ABS or PETG because PLA will definitely deform du Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
