Seatbelt-Guide Repair Sleeve
ABS · PETGMULTI-PART2 FILESGPLSeats
- PART
- Seatbelt-Guide Repair Sleeve
- OEM
- —
- FITS
- Z3 E36/7 / E36/8
Loading 3D viewer...
PART ID · BIMMER-3D / 1531QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet
MAN-1531- [01]250628001__det_001__rev05_18jul2025.step250628001__det_001__rev05_18jul2025.step.STL
- [02]250628001__det_001__rev05_18jul2025.stl250628001__det_001__rev05_18jul2025.stl.STL
Field notes

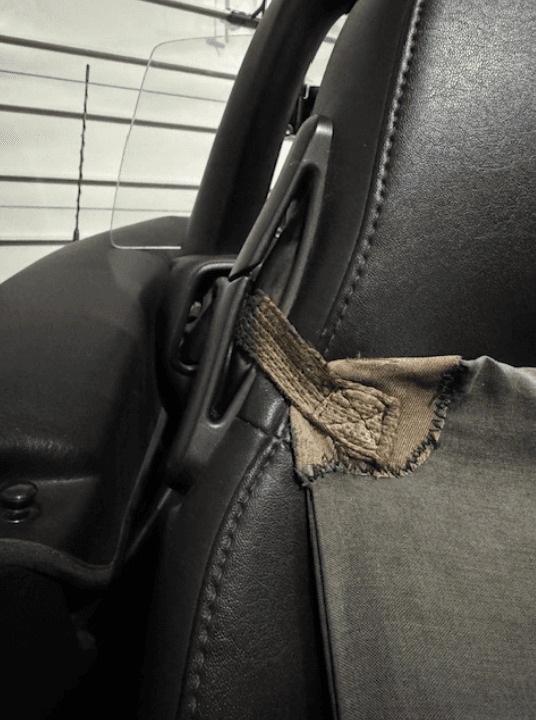

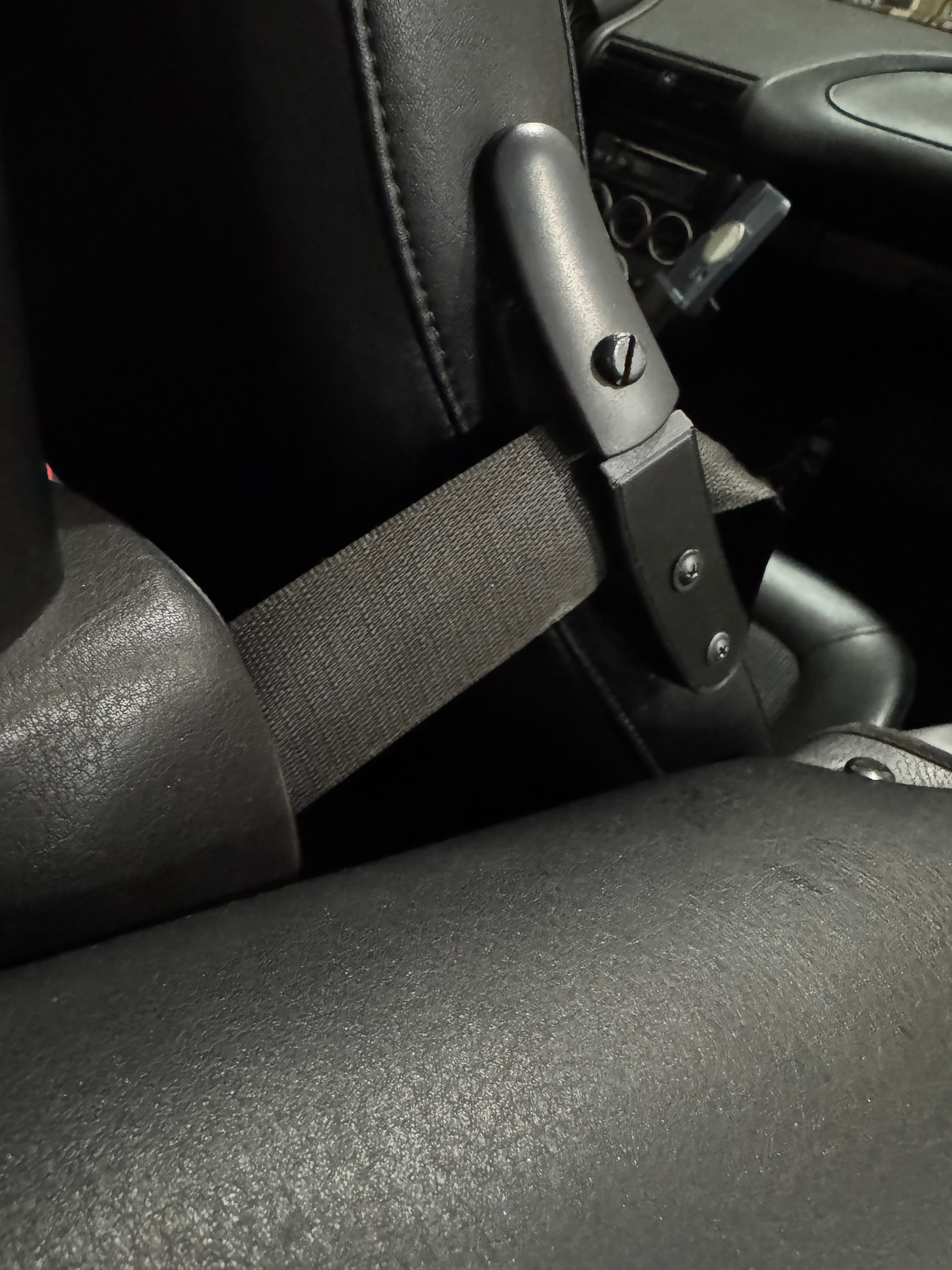

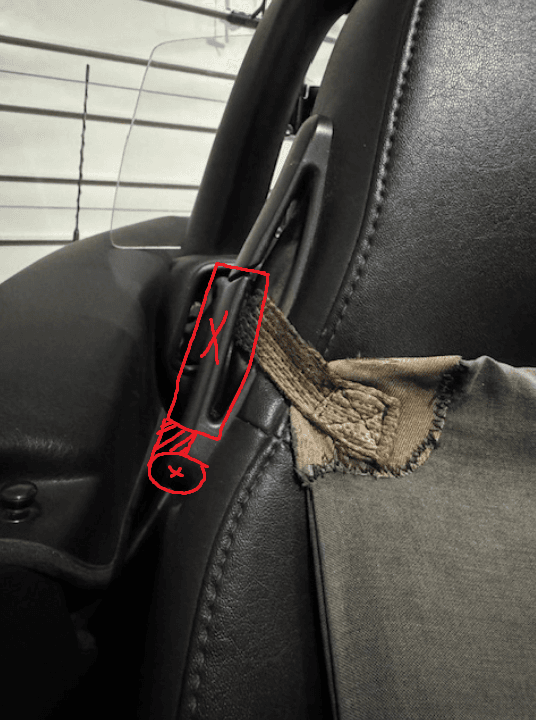

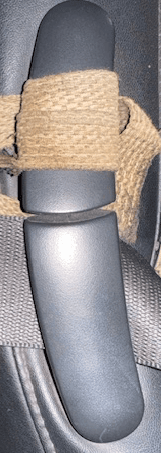

BY RAZAScrew-retained sleeve for a broken lower finger on the passenger-seat belt guide in the creator's 2002 car. The installed repair, original damage and break diagrams are documented. It does not replace the belt or anchor; verify smooth belt feed and retraction before driving.
