Roof Rails Replacement Part

Nylon1 FILECC-BY-NCBody
PART RECORDREF 1226
PART
Roof Rails Replacement Part
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1226QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
7 PLATES
Plate 1 of 7
PLATE 01 / 07No caption recorded
Build sheet
MAN-1226
  • [01]roof rails screw stabilizer replacement v2.3mf.STL
  • [02]Bounding box66.000 × 18.000 × 4.000 mm
  • [03]Volume1,658.972 mm³
Field notes
BY MAXSCOPP

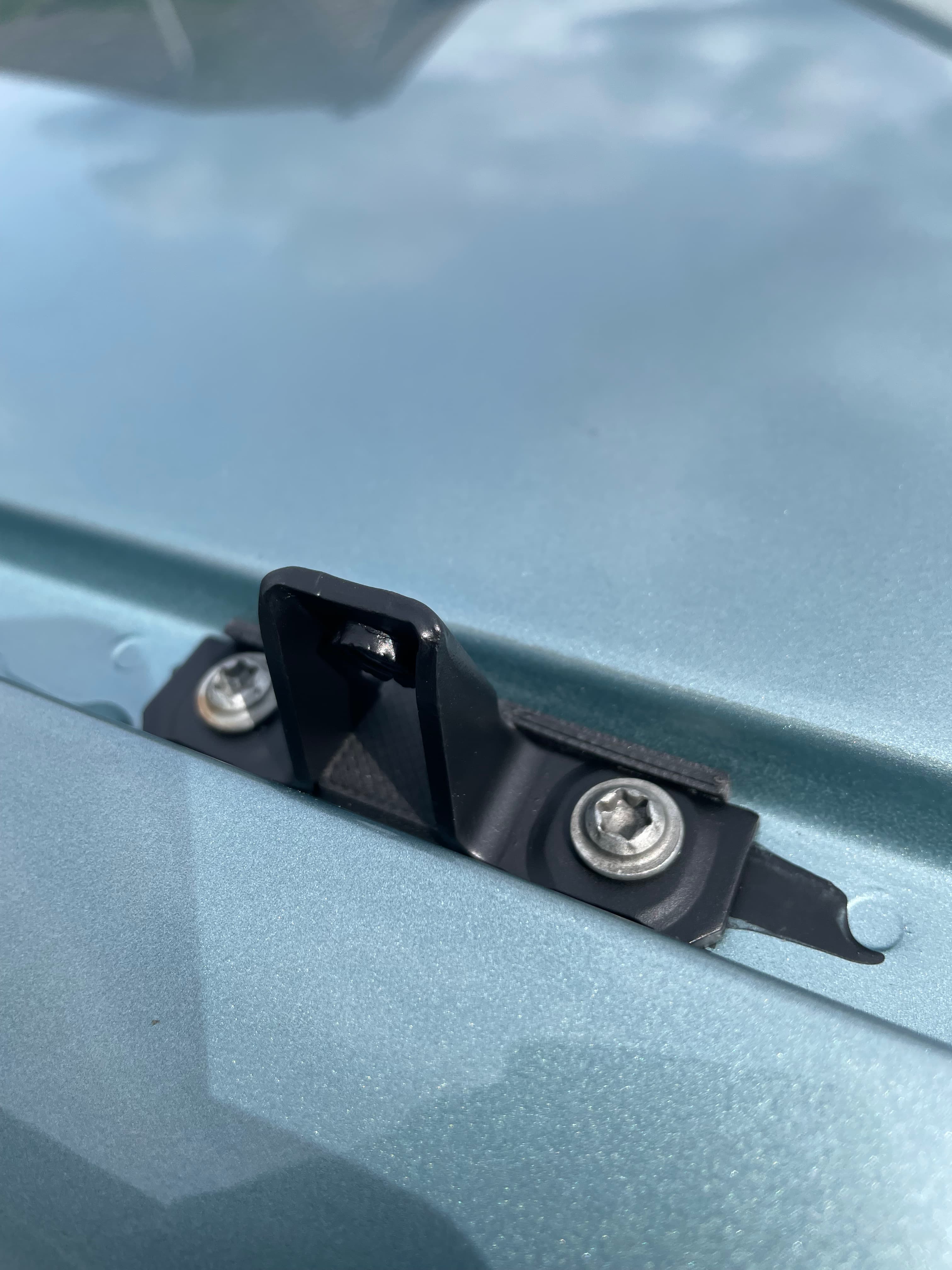

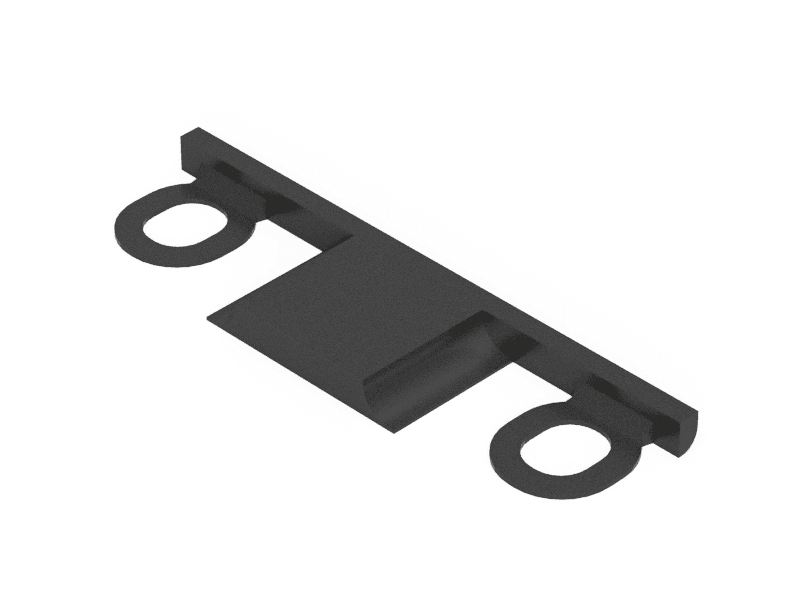

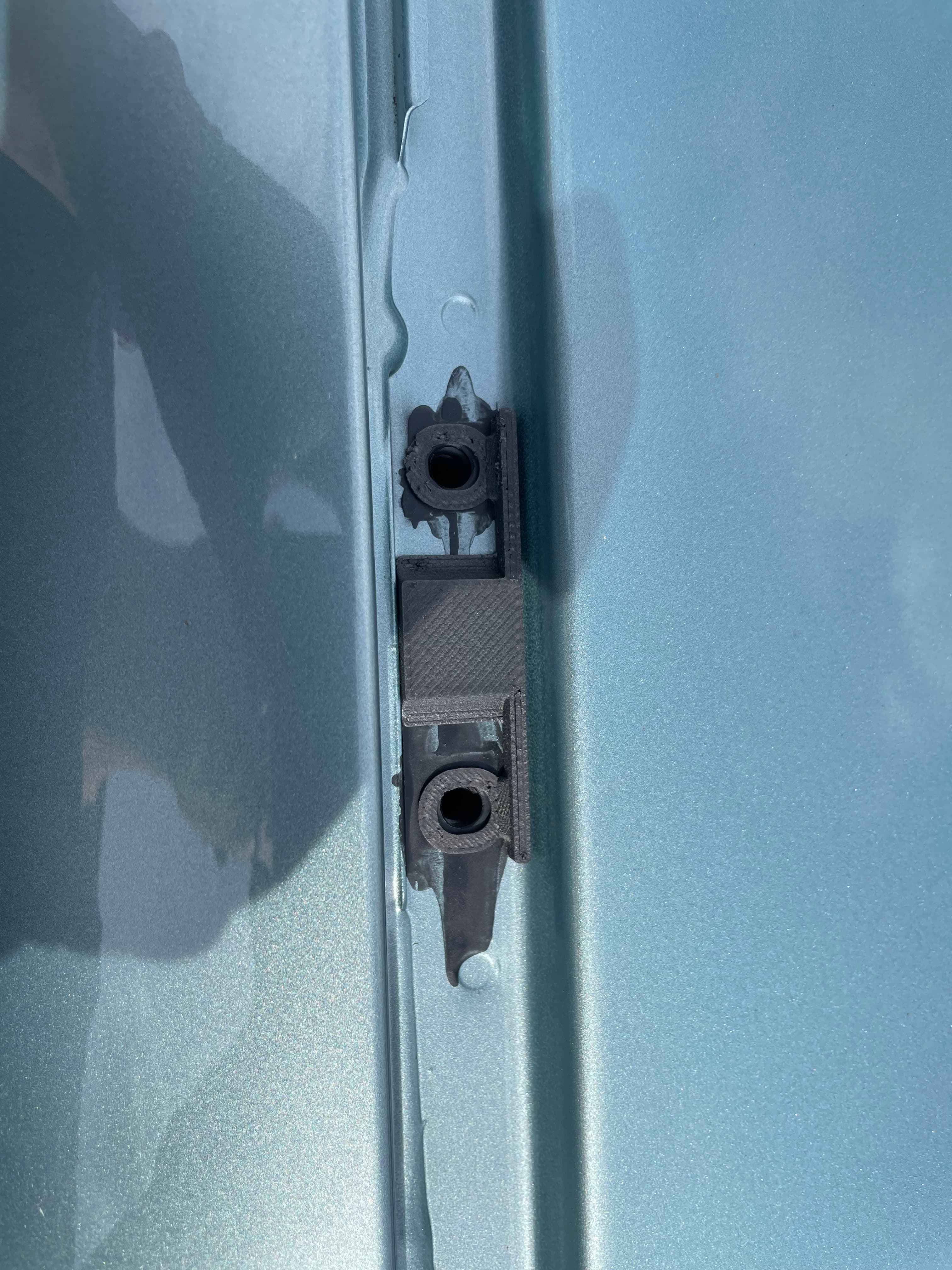

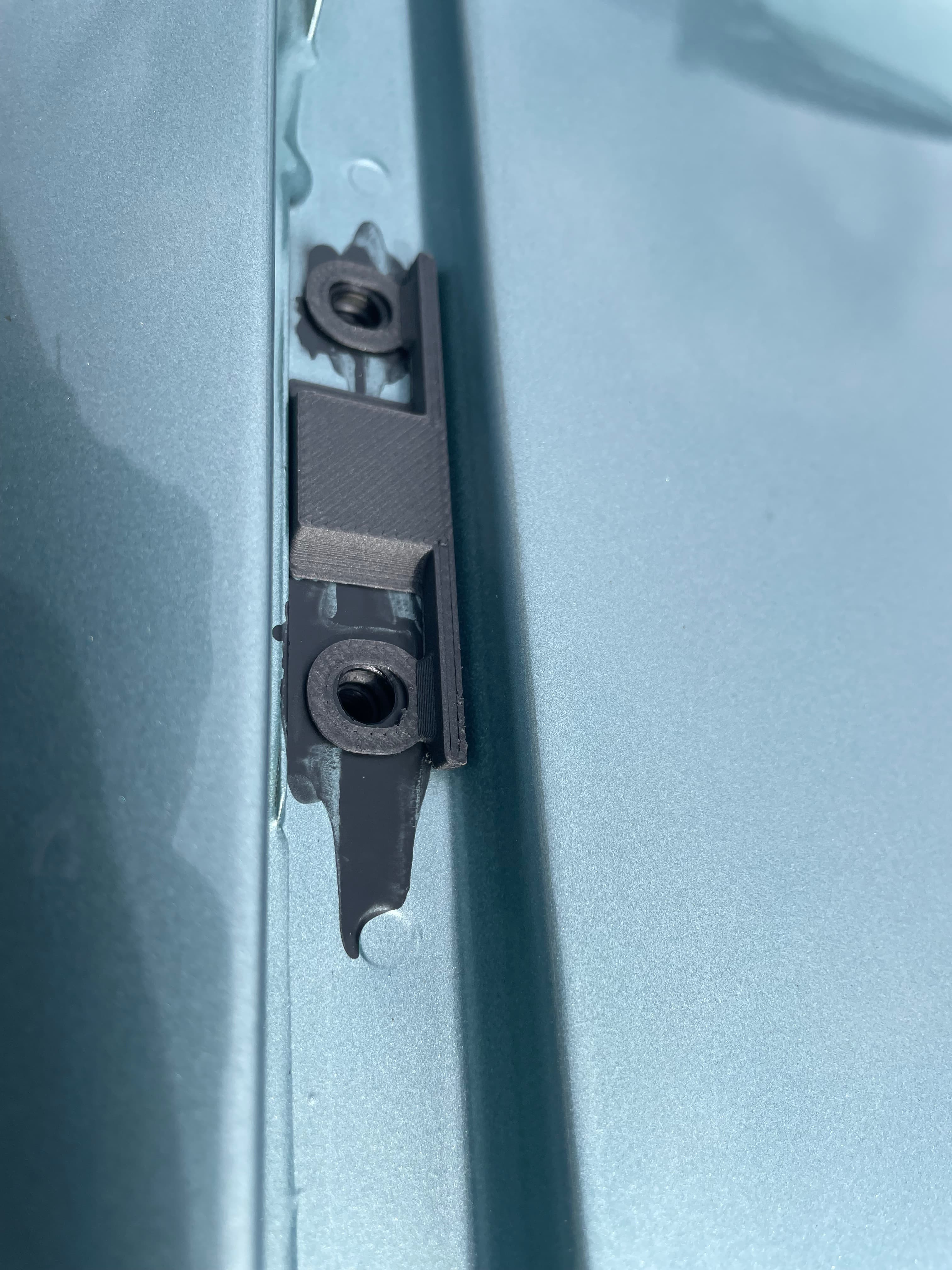

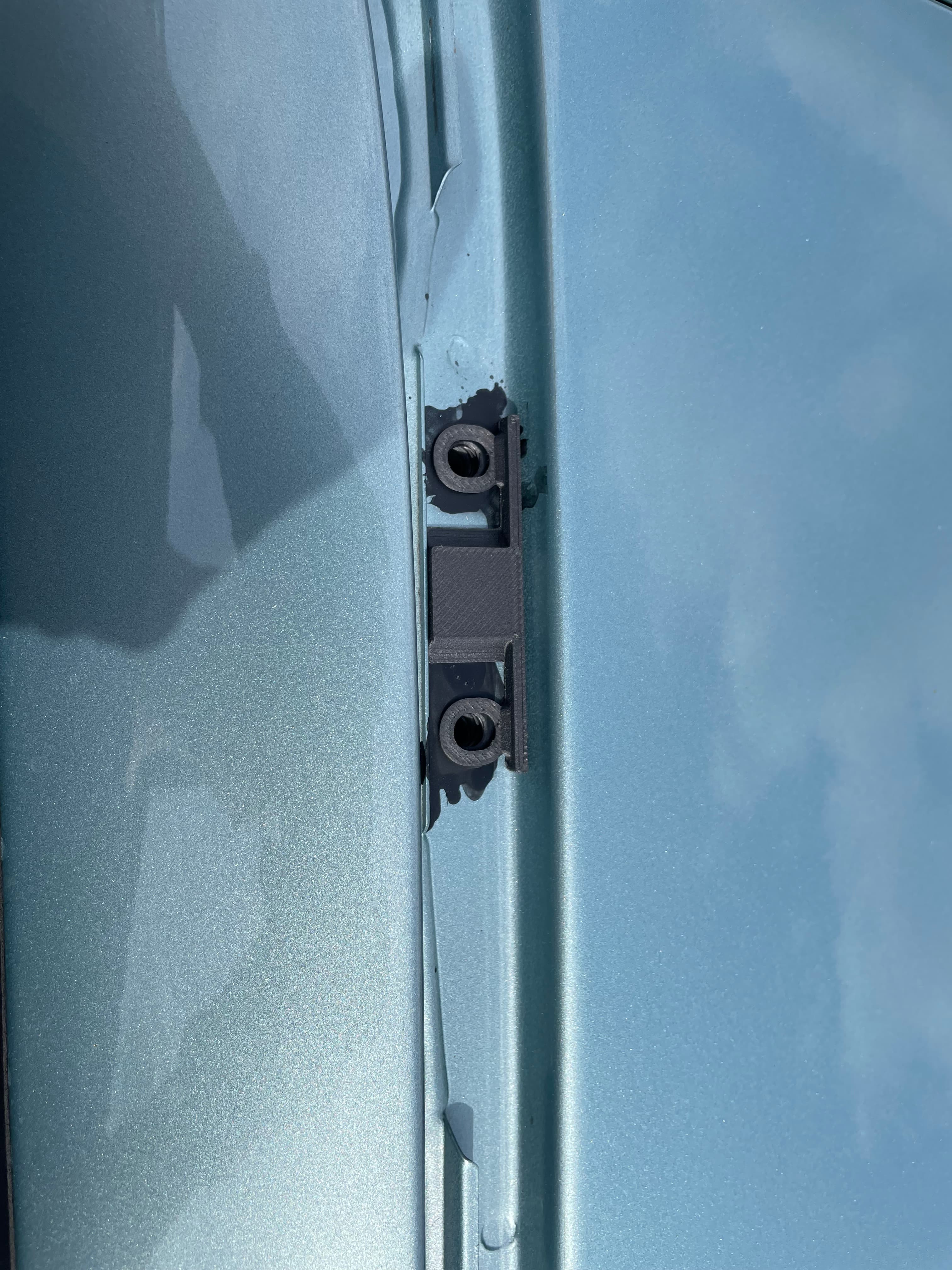

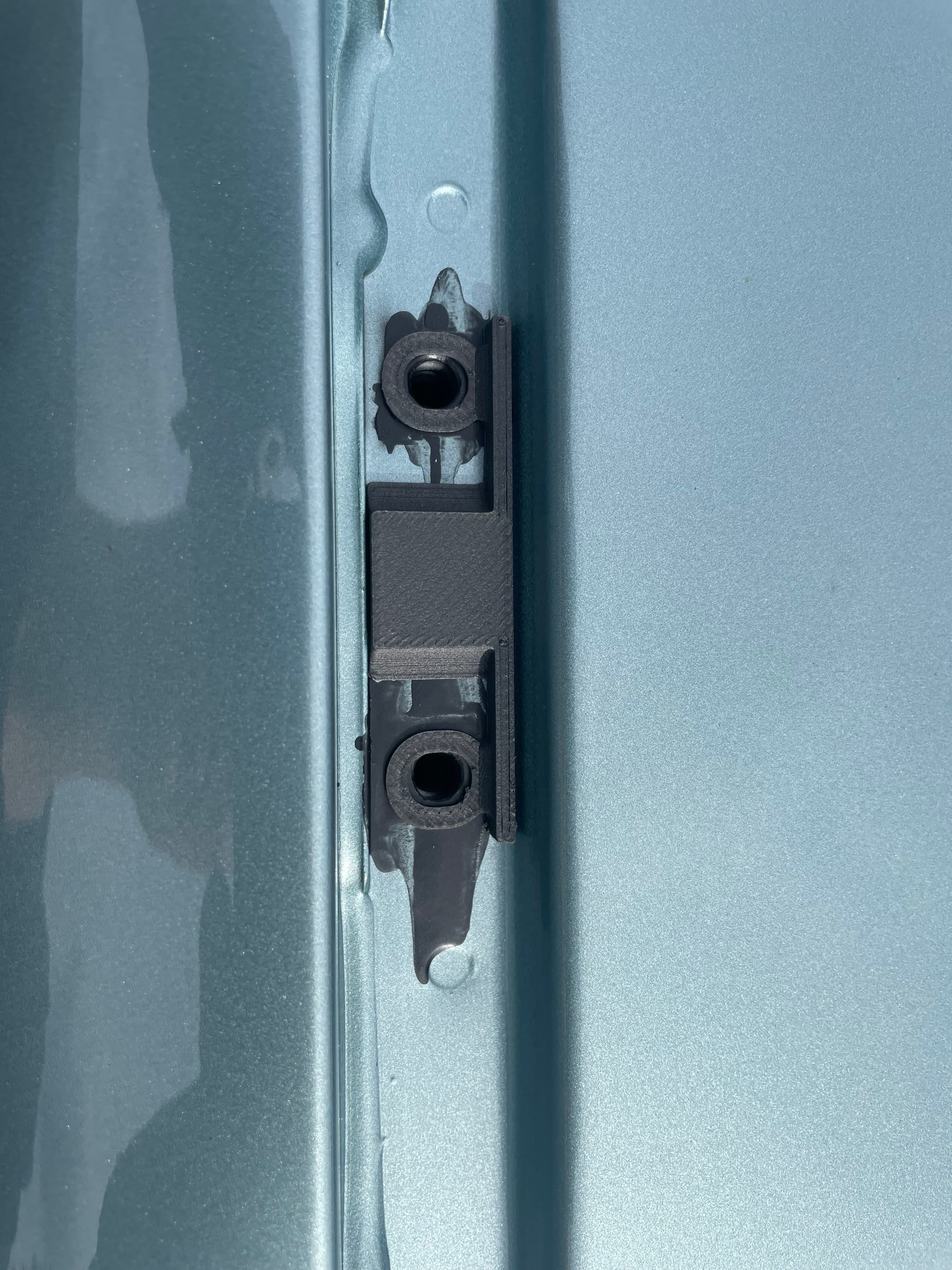

When I bought some roof rails, the flaps for the screws to not scratch the paint had been broken off. So I threw this quick redesign together. It's mostly a replica with slight adjustments for better printing. DO NOT USE PLA, PETG, OR ABS You should consider a high-quality, very weather and outdoor-resistant filament. I used CPE CF112. Alternatives may include PA CF12 or PP. Print slow. Low to no fan. The chamber should be at least 40°C for best layer adhesion. Works best with 100% infill. Sadly I could not find the specific part number for this, I've heard a simple washer should do just as well. However, I'd like to keep it as original as possible with this, as it also helps with alignment. Use exterior-rated material and verify secure retention, sealing and adjacent-panel clearance.
