Rear-Wiper Arm Cover

REPLACES OEM61687407276
ABS · Nylon · PETG1 FILECC-BY-NCWipers
PART RECORDREF 1500
PART
Rear-Wiper Arm Cover
OEM
61687407276
FITS
iX3 G08, X3 G01 / F97
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1500QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1500
  • [01]windscreencapfusion.stl.STL
  • [02]Bounding box71.946 × 36.358 × 30.613 mm
  • [03]Volume10,687.325 mm³
Field notes
BY TSYLATAC

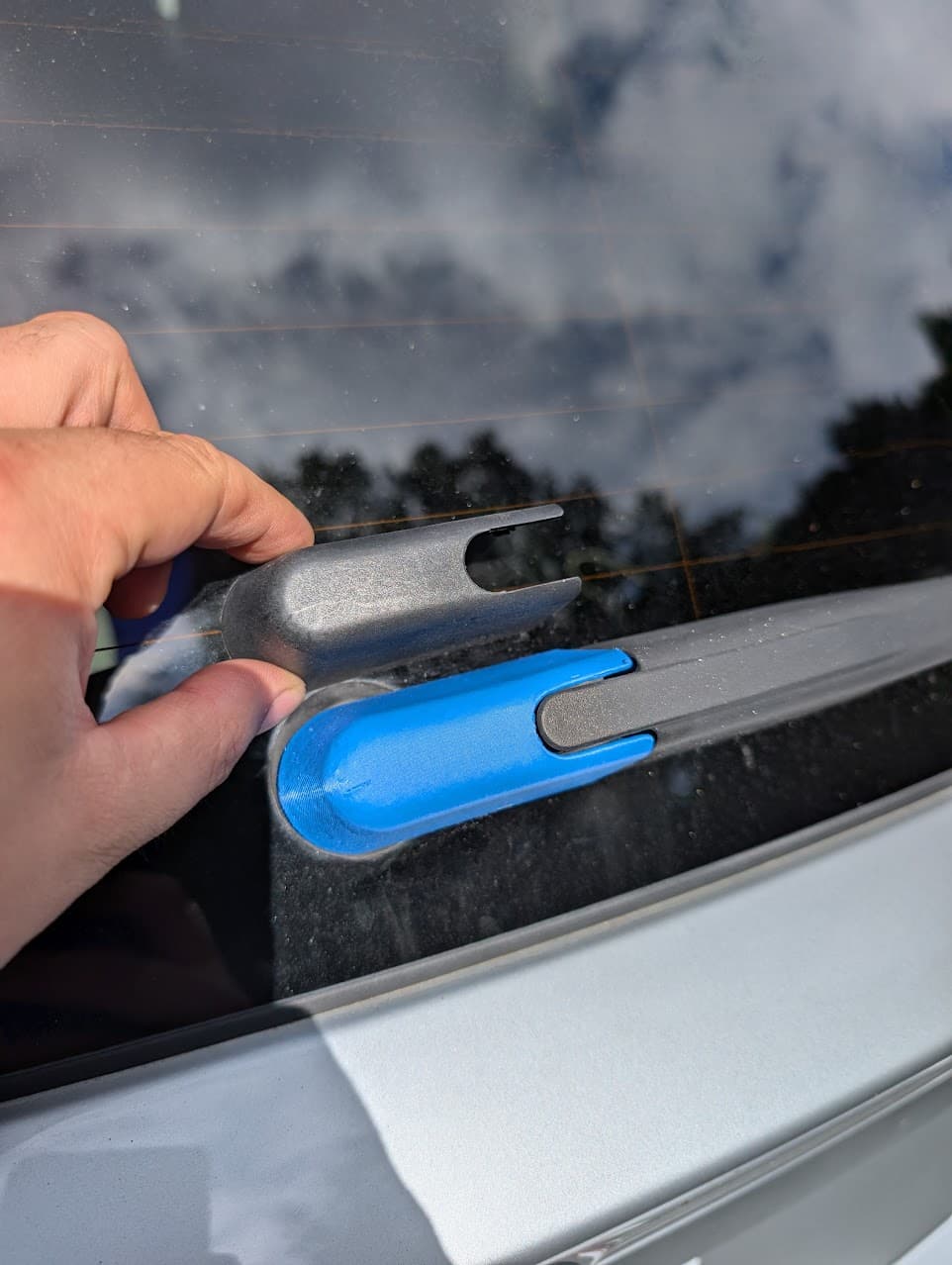

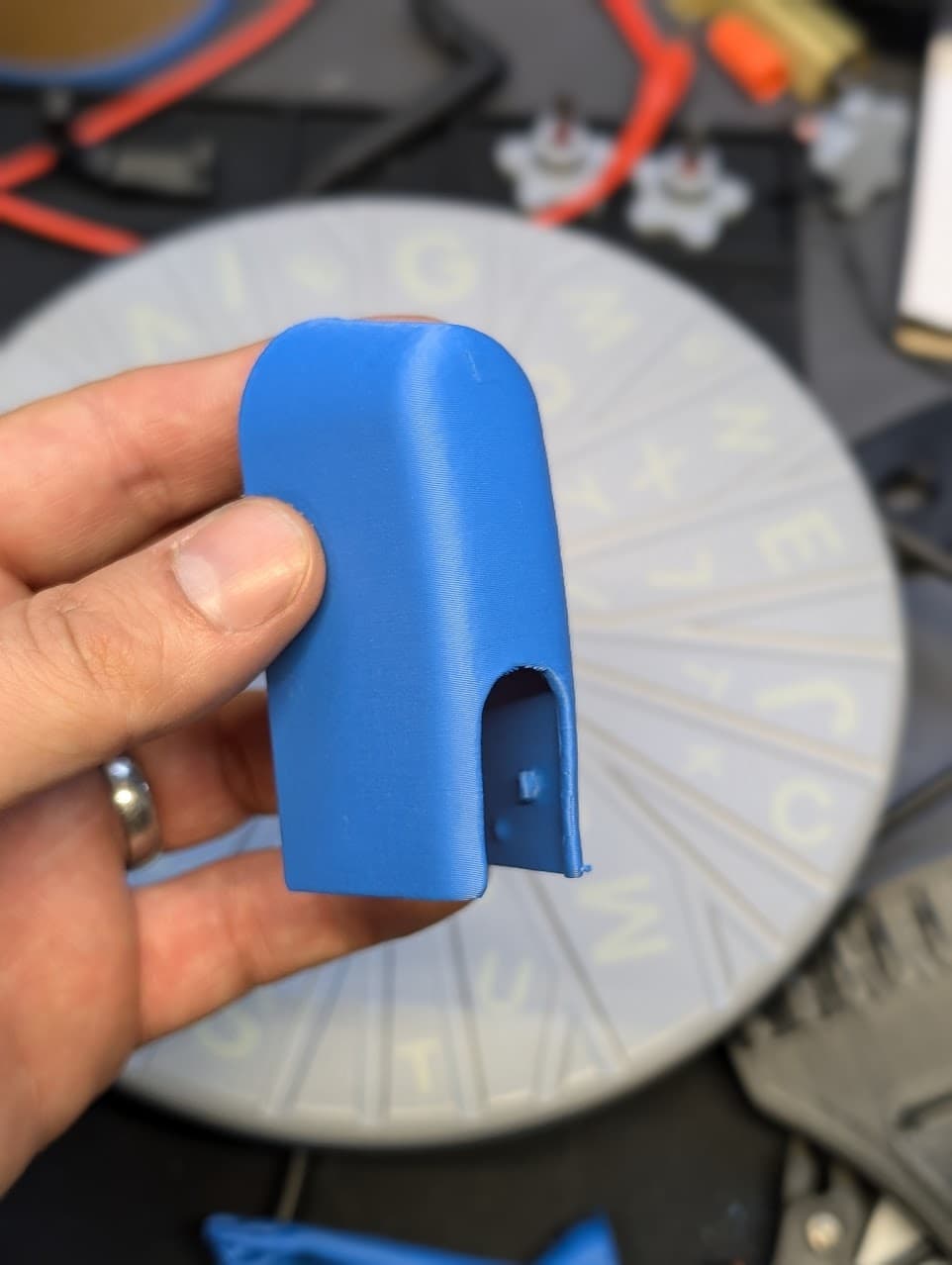

Replacement covering cap for the rear-window wiper arm, 3D-scanned from the original and physically shown loose, compared with the original and snapped onto the arm. BMW catalogs identify the original child component as 61687407276, rear-wiper diagram item 6, for X3 G01/G01 LCI, X3 M F97/F97 LCI and iX3 G08; Hubauer records supersession to 61625A9D577. Use ABS, ASA, PETG or another UV- and heat-resistant material, compare the clip geometry, confirm by VIN and verify secure retention and full wiper travel.
