Rear Seat-Back Panel Repair Clip

ABS · PETG1 FILECC-BYSeats

PART RECORDREF 1198

PART: Rear Seat-Back Panel Repair Clip
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1198QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1198

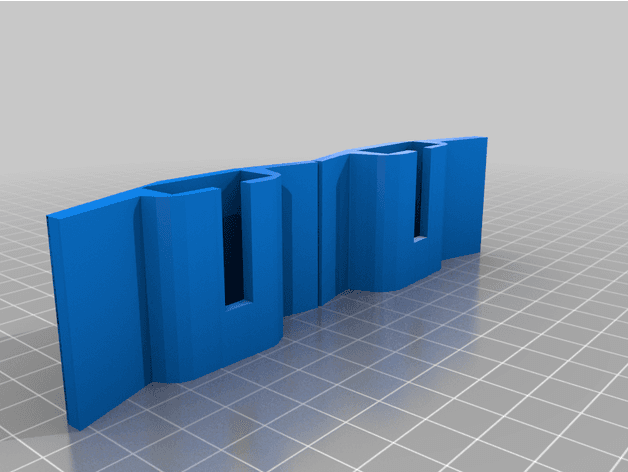

[01]bracket_model.stlbracket_model.stl.STL
[02]Bounding box142.505 × 36.780 × 16.042 mm
[03]Volume28,339.115 mm³

Field notes

BY ASHER LIEBERMAN (ROCKET_GUY)

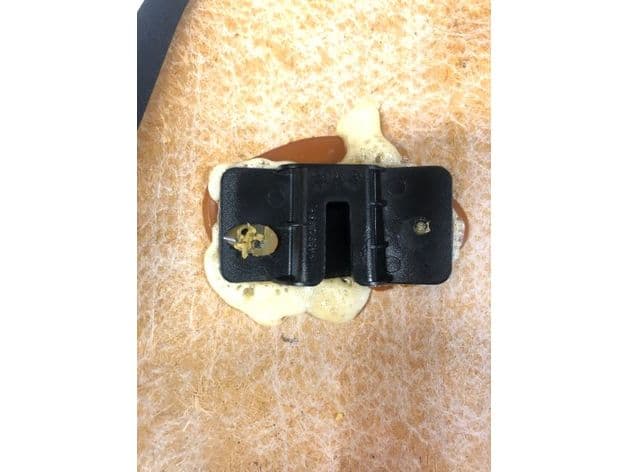

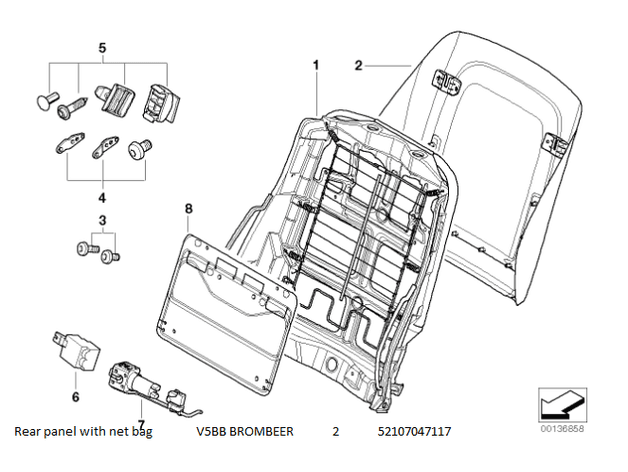

Replacement upper retaining clip for the rear front-seat back panel, modeled from the surviving seat-panel clip profile and physically compared with the panel. The nearby V5BB Brombeer catalog number identifies the complete parent panel and is intentionally omitted. Confirm seat movement, belt access and occupant clearance before use.
