Rear-Console Cupholder

ABS · PETGMULTI-PART2 FILESCC-BYInterior

PART RECORDREF 1527

PART: Rear-Console Cupholder
OEM: —
FITS: Z3 E36/7 / E36/8

Loading 3D viewer...

PART ID · BIMMER-3D / 1527QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

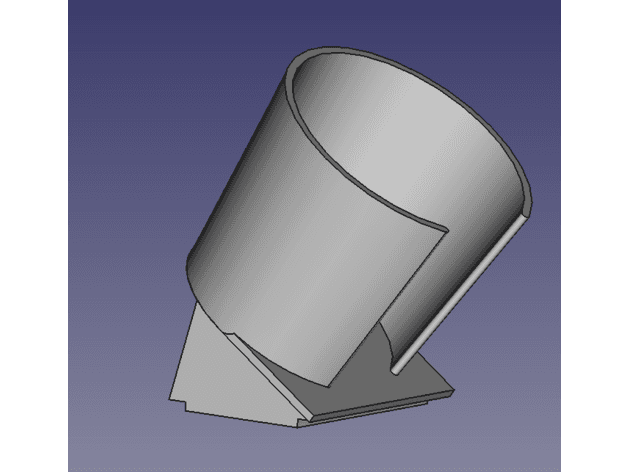

PLATE 01 / 03No caption recorded

Build sheet

MAN-1527

[01]Z3cupHolder.stlZ3cupHolder.stl.STL
[02]z3slot2.stlz3slot2.stl.STL
[03]Bounding box115.293 × 114.701 × 108.512 mm
[04]Volume170,680.895 mm³

Field notes

BY THOMAS ZALE (TUNKATOM)

Two-piece cupholder and mounting insert for the rear-console slot behind the handbrake in the creator's 1999 2.5-litre Roadster. The source shows it installed. Bond or fasten the parts securely and confirm handbrake, seat and belt-buckle clearance.

View original source ↗
